Adash VA5 Pro – A4500 Vibration Analyzer: Professional Machinery Monitoring
Overview of the Adash VA5 Pro

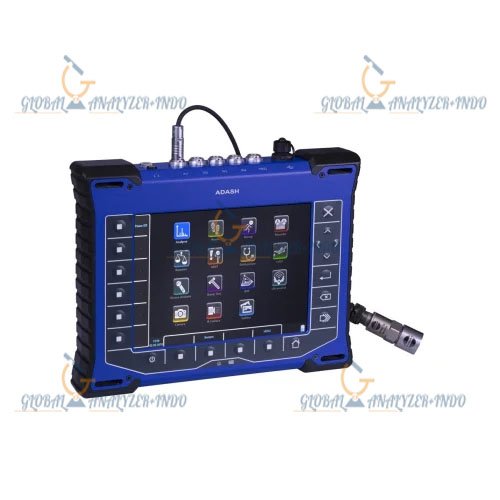

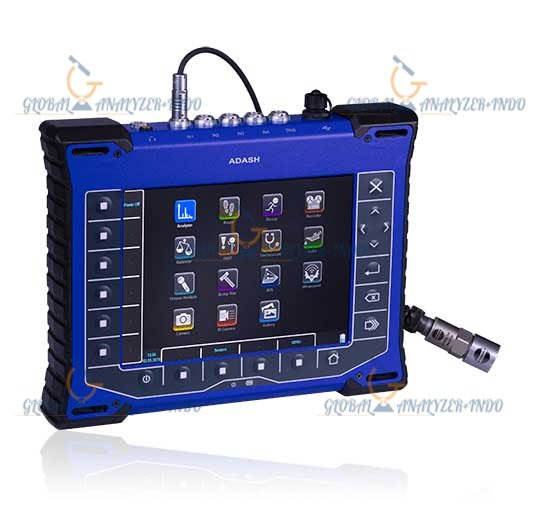

The Adash VA5 Pro – A4500 is a professional-grade vibration analyzer designed for industrial machinery monitoring and diagnostics. Combining high-resolution data acquisition, real-time analysis, and advanced fault detection, this instrument enables maintenance teams to identify mechanical issues before they escalate. Its robust design, touchscreen interface, and multi-functional modules make it a versatile solution for modern predictive maintenance programs.
Key Features of the A4500 VA5 Pro
Multi-Functional Analysis Capabilities
The VA5 Pro integrates multiple diagnostic tools in one device. Users can perform vibration analysis, route data collection, balancing, run-up measurements, raw signal recording, stethoscope inspections, ultrasound testing, and thermal imaging. The device also includes the expert system FASIT and ACMT for low-speed bearing analysis, allowing automatic fault detection with minimal operator intervention.
High-Resolution Data Acquisition
Equipped with 24-bit precision and a 120 dB dynamic range, the VA5 Pro can record frequencies up to 90 kHz with a maximum resolution of 3,276,800 lines. This capability allows detailed post-analysis of machinery faults, capturing subtle anomalies that may indicate early wear or imbalance. Its ability to collect data simultaneously across four AC channels, four DC channels, and one tachometer channel ensures accurate and synchronized measurements across complex machines.
Rapid Measurement and Time Efficiency
The instrument significantly reduces measurement time using its internal virtual analyzer. For triaxial sensors, the VA5 Pro can acquire all parameters in just eight seconds, compared to 96 seconds required by conventional single-channel analyzers. This efficiency allows technicians to monitor more equipment in less time, especially in high-demand or hazardous industrial environments.
User-Friendly Interface and Display
The VA5 Pro features a large, high-resolution touchscreen paired with a physical keyboard, making it simple to navigate menus, view FFTs, and use variable cursors. Operators can access real-time data, bearing fault frequencies, and orbit measurements directly on the device. The display also supports thermal imaging and camera functions, providing a visual reference for machine components.
Durable Design for Industrial Environments
Designed for rugged conditions, the VA5 Pro comes in an IP65-rated aluminum casing, capable of withstanding dust, moisture, and industrial wear. Its battery supports up to eight hours of continuous operation, while its compact size and weight allow comfortable use in the field. The device supports multiple languages, enabling international teams to operate it with ease.
Technical Specifications
Input and Measurement
The analyzer provides four AC channels, four DC channels, and one tachometer input. It supports AC inputs of ±12 V peak-to-peak and DC inputs of ±24 V. Frequency ranges span from 0.35 Hz up to 90 kHz, depending on the sampling mode and number of channels. FFT resolution ranges from 100 lines to 3,276,800 lines for detailed spectral analysis.
Recording and Storage
The VA5 Pro can record raw signals at 64 kHz for up to 20 hours using four channels simultaneously. Internal memory of 64 GB allows route measurements, while additional storage options expand capacity for large-scale monitoring programs.
Data Analysis Tools
Data processing features include real-time FFT, DEMOD envelope analysis, ACMT low-speed bearing analysis, order tracking, user-defined band pass analysis, RPM measurement, orbit measurement, and post-analysis of recorded signals.
Connectivity and Power
The device connects via USB 3.0, compatible with USB 2.0, for data transfer and PC interface. Lithium-ion batteries ensure long field operation, and the instrument can operate in temperatures from -10°C to 50°C.
Included Modules and Accessories
The VA5 Pro comes with a range of essential modules and accessories. The package includes a charger, leather cover with shoulder strap, transport case, and a licensed seat for Digital Diagnostics Professional Software. Optional modules include thermal imaging, stethoscope, ultrasound, and camera functionality.
Advantages for Industrial Maintenance
The Adash VA5 Pro – A4500 empowers maintenance teams to perform predictive diagnostics more efficiently. Its rapid data collection, simultaneous multi-channel acquisition, and embedded expert system reduce downtime, increase machine uptime, and optimize overall operational efficiency. The device is particularly suited for high-speed compressors, sleeve bearing machinery, and complex industrial equipment where precise fault detection is critical.
