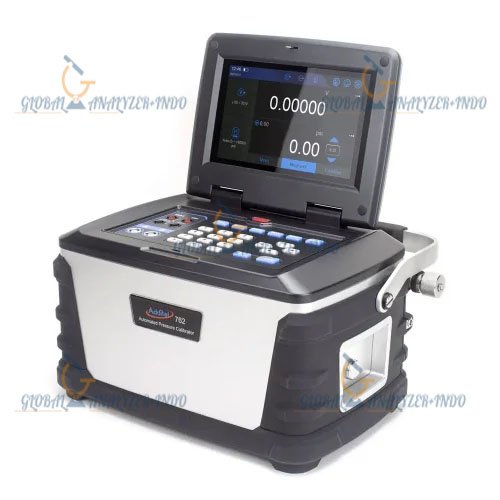

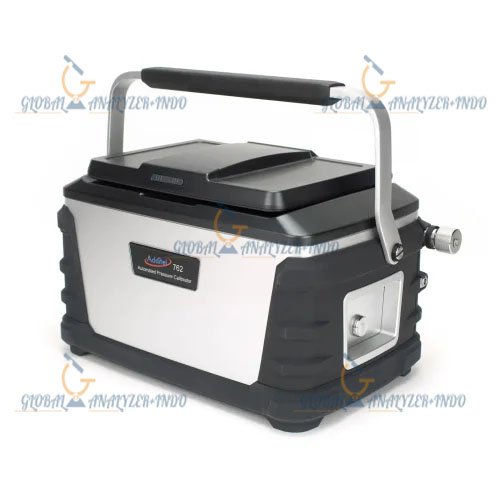

Additel 762W Automated Hydraulic Pressure Calibrator
The Additel 762W is a high-performance automated hydraulic pressure calibrator. It works perfectly in both field and laboratory environments. Its compact design, precision, and advanced features make it a favorite for lab personnel and field technicians.
Advanced Automation for Pressure Calibration
The ADT762W supports fully automated calibration of pressure transmitters, switches, and both dial and digital gauges. It works with HART and PROFIBUS devices. Its integrated task feature and Wi-Fi connectivity help technicians manage calibration efficiently while reducing errors.
Dual-Range Accuracy for Maximum Precision
The calibrator automatically switches between internal calibrations based on the current control pressure. Each ADT762W comes with unique calibrations for 0 to 3,000 PSI and 0 to 10,000 PSI, or 0 to 6,000 PSI and 0 to 15,000 PSI. As pressure increases, the device selects the proper control and measurement settings. Auto mode allows automatic range selection. Users can also set the range manually for specialized tasks.
Built-In Auto-Purge System
Purging hydraulic systems can take time. The ADT762W simplifies this with an integrated auto-purge system. With a single button, technicians remove trapped air quickly. This feature reduces downtime and frees technicians for other tasks.

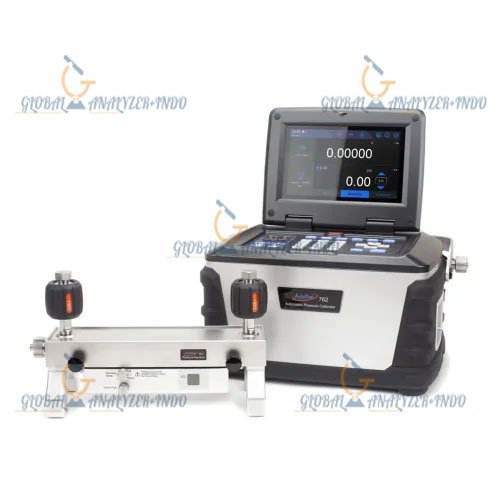

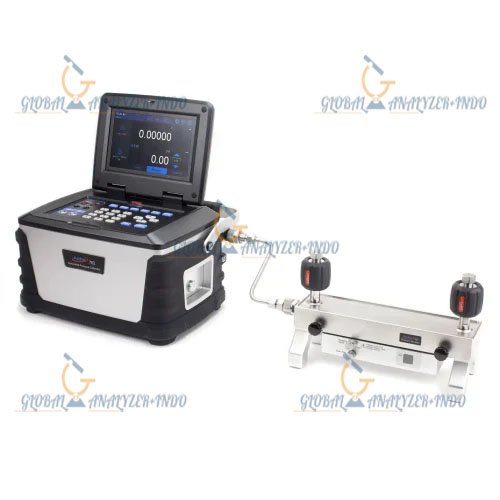

Dual-Port Manifold and Fluid Management
The ADT762W uses deionized water for calibration. Its dual-port manifold communicates directly with the unit. Residual water is removed after each vent, reducing maintenance needs. This system extends the life of the calibrator and ensures reliable performance.
Documented Task Management
The ADT762W allows users to create and run calibration tasks without a PC or tablet. It analyzes errors, generates reports, and stores results locally. The device supports up to one thousand tasks. Users can recall them anytime, saving time and improving workflow.
Dual-Mode HART Communication
Technicians can calibrate HART-enabled transmitters directly. The ADT762W offers automatic and manual HART modes. It ensures efficient communication with devices and provides full access to HART functions.
Key Features and Benefits
The ADT762W generates pressure up to 15,000 PSI with accuracy to 0.01 percent FS. It offers dual-range calibration with auto or manual selection. The device uses deionized water and maintains control stability within 0.005 percent FS. It is portable and supports two external pressure modules. Connectivity options include Wi-Fi, LAN, Bluetooth, USB, and Ethernet. The unit functions as a full HART field communicator and supports PROFIBUS. It also provides task management, data logging, and ISO 17025-accredited calibration with traceable results.
Technical Specifications
The user interface features a seven-inch TFT color touch screen and keypad. The enclosure has an IP31 rating. The ADT762W runs on a dedicated lithium battery or power adapter. The Li-Ion battery lasts up to twelve hours and recharges in under five hours.
The calibrator weighs twenty-eight pounds and measures 11.81 by 8.66 by 7.56 inches. It supports USB, LAN, Bluetooth, Wi-Fi, and Ethernet. HART devices can be read, configured, and calibrated with updated DD files. Data storage exceeds eight gigabytes and the device logs up to one million readings. Automation functions include switch testing, auto step, and leak testing. The pump life exceeds one million cycles.
The operating temperature ranges from 32 to 122 degrees Fahrenheit. Storage temperature ranges from minus 20 to 60 degrees Celsius. Humidity remains below ninety percent, non-condensing. The device comes with ISO 17025 accreditation and CE compliance. Software compatibility includes ACal, Additel Land, and Additel Link. The ADT762W carries a one-year warranty.
Package Contents
The package includes a 1220V 220V power adapter, rechargeable Li-Ion battery, ADT100-762 high-pressure hose, small accessory case, carrying case, USB cable, transportation cap, Sebecate oil, O-rings for the liquid storage tank, O-rings for right-angle connector, pressure module connection cable, and ADT100-762-X ISO 17025 accredited calibration certificate with data.
Why Choose the Additel 762W
The ADT762W combines precision, portability, and automation. It helps technicians complete hydraulic calibrations quickly and accurately. Its dual-range calibration, auto-purge system, and HART communication improve workflow and reduce maintenance. The device delivers consistent, reliable performance in both field and lab settings.
