Concrete Scanner CONQUEST 100 Sensors & Software: Reliable Subsurface Inspection Solution

The Concrete Scanner CONQUEST 100 Sensors & Software provides a reliable solution for non-destructive subsurface inspection in concrete structures. Designed for accuracy and efficiency, this system helps professionals locate embedded objects and evaluate internal conditions without damaging the structure.

Overview of the CONQUEST 100 Concrete Scanning System

The CONQUEST 100 is an advanced concrete scanning system that combines high-performance sensors with intelligent software. Unlike traditional inspection methods, it allows users to visualize internal concrete features in real time. As a result, engineers and inspectors improve decision-making and reduce project risks.

Moreover, the system supports field operations in demanding construction environments, making it suitable for both new construction and renovation projects.

Core Sensors and Detection Technology

Advanced Sensor Technology for Accurate Detection

The CONQUEST 100 uses specialized sensors to detect objects embedded within concrete. For example, it identifies rebar, post-tension cables, conduits, and voids. Therefore, users gain a clear understanding of subsurface conditions before drilling or cutting.

In addition, the sensors deliver consistent performance across different concrete thicknesses and densities.

High-Resolution Data Capture

High-resolution data capture improves detection clarity. Consequently, the system helps users interpret results more confidently and minimize errors during site work.

Intelligent Software for Data Analysis and Visualization

Real-Time Scanning and Visualization

The CONQUEST 100 software processes sensor data instantly. As a result, users view scan results directly on-site. This real-time feedback allows teams to adjust scanning strategies immediately and avoid costly mistakes.

Data Recording and Reporting

The software enables users to save scan data for further analysis. Moreover, it supports reporting and documentation, which helps with project planning and compliance requirements.

Key Features and Benefits

Non-Destructive Testing for Concrete Structures

The CONQUEST 100 performs non-destructive scanning. Therefore, users inspect internal structures without causing damage, preserving structural integrity and safety.

Efficient and User-Friendly Operation

The system emphasizes ease of use. Furthermore, its intuitive interface reduces training time and increases productivity in the field.

Portable and Durable Design

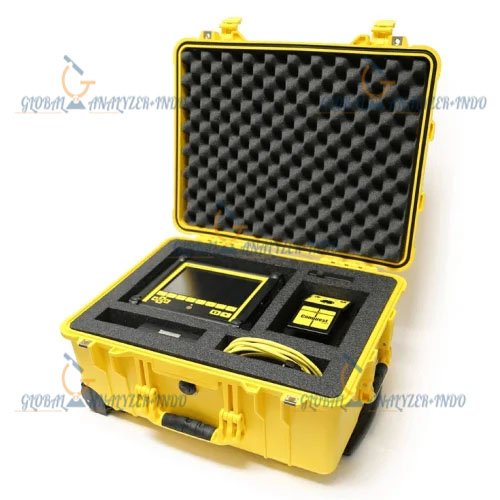

The CONQUEST 100 features a compact and robust design. As a result, professionals can transport and operate the system easily on construction sites and industrial environments.

Applications of Concrete Scanner CONQUEST 100

Construction and Renovation Projects

Construction teams use the CONQUEST 100 to locate embedded elements before drilling or coring. Consequently, they prevent accidental damage and project delays.

Structural Inspection and Maintenance

Inspectors rely on the system to assess existing concrete structures. Therefore, they can plan maintenance work based on accurate subsurface information.

Infrastructure and Civil Engineering

Civil engineers apply the CONQUEST 100 in infrastructure projects such as bridges, tunnels, and slabs. As a result, they enhance safety and project efficiency.

Software Compatibility and Workflow Integration

The CONQUEST 100 software integrates into digital inspection workflows. In addition, users can export data for documentation and analysis. Therefore, the system supports modern construction and engineering processes.

Specifications :

Sensor Head Size
150 x 130 x 190 mm (5.84 x 5.00 x 7.38 in)

Sensor Weight
1.00 kg (2.18 lbs)

Display Unit Weight (without battery)
2.83 kg (6.24 lbs)

Battery Weight
0.48 kg (1.05 lbs)

Display Unit Screen
8.0″ high-visibility, sunlight-readable diagonal LCD display with touchscreen
Adjustable backlighting
1000 NIT and 800:1 contrast ratio

Colors
24 total color palettes (8 color palettes with 3 contrast levels per palette)

Wireless
Integrated modules:
– Wi-Fi (IEEE 802.11 b,g,n)
– GPS/GLONASS

Audio
Built-in speaker – 85dBA speaker with volume control

Bluetooth Connectivity
Yes

Acquisition Rate
100,000 samples/s

Battery
Lithium Battery Pack
Battery Life: 4-6 hours
Battery Capacity: 9 Ah
Built-in power management features to conserve battery power and preserve data integrity

Charger
Built-in charger with status indicator
Universal AC mains charger: Input: 100-240V, 2A, 50/60Hz
Output: 18V, 4.45A, 80W Max

Display Unit Input
10-24V, 4A maximum

Temperature & Environmental
Ruggedized, environmentally sealed unit and connections
Ingress protection (IP) rating: DVL-500 is rated to IP65 under IEC 60529
Relative Humidity operation (non-condensing): 10 – 90%
DVL-500 operating temperature range: -40 to 50°C
Use battery charger/AC adapter between 0 and 35°C
Operation on battery is possible below -20°C but battery endurance will be limited
Do not use touchscreen below -20°C

Battery Storage
Recommended conditions: -20 to 25°C
Maximum temperature range: -20 to 60°C
Extended storage above 40°C could degrade battery performance and life

Regulatory Specifications
EMC-FCC, CE, IC

Safety
TUV, CE

Why Choose CONQUEST 100 Sensors & Software?

Professionals choose the CONQUEST 100 because it combines reliable sensors, intelligent software, and practical field usability. Moreover, it reduces uncertainty during concrete inspection tasks. Ultimately, the system improves safety, efficiency, and project outcomes.
