Easy Laser XT190 Alignment Tool – Precision Pulley and Sheave Alignment

The Easy Laser XT190 Alignment Tool revolutionizes the way sheaves and pulleys are aligned. Offering unmatched accuracy and efficiency, this tool is unique in the market for its digital readout capabilities, allowing users to achieve precise alignment in less time.

 What is the Easy Laser XT190?

The XT190 is an advanced alignment system designed to simplify the alignment process for all types of pulleys and sheaves, including v-belt, timing belt, flat belt, and chain drives. Its laser transmitter generates a precise plane parallel to the reference sheave, while the detector provides real-time digital feedback on both offset and angular values.

With the XT190, even adjustable machines can be aligned easily, and results can be trusted to fall within prescribed tolerances.

 Key Features of the XT190 Alignment Tool

 Accurate Digital Readouts

The XT190 provides a live digital display of both angular and offset values, making alignment more accurate than traditional methods such as rulers or straight edges. This ensures that adjustments meet exact tolerances every time.

 Multiple Readout Options

Users can follow alignment progress on:

• The built-in OLED display

• The XT Alignment app for iOS and Android devices

• E or XT series display units (sold separately)

• Visual targets included with the package

 Easy Data Storage and Reporting

With the XT display unit or your mobile device, alignment data can be saved and exported as a PDF report, making documentation fast and convenient.

 Fast and Efficient Alignment

The XT190 allows one person to perform horizontal and vertical alignment simultaneously, reducing labor and saving significant time compared to traditional methods.

 Universal Compatibility

Equipped with super magnets for attachment, the XT190 can be used on all types of pulleys, including aluminum, where double-sided tape can be used for secure installation.

 Technical Specifications

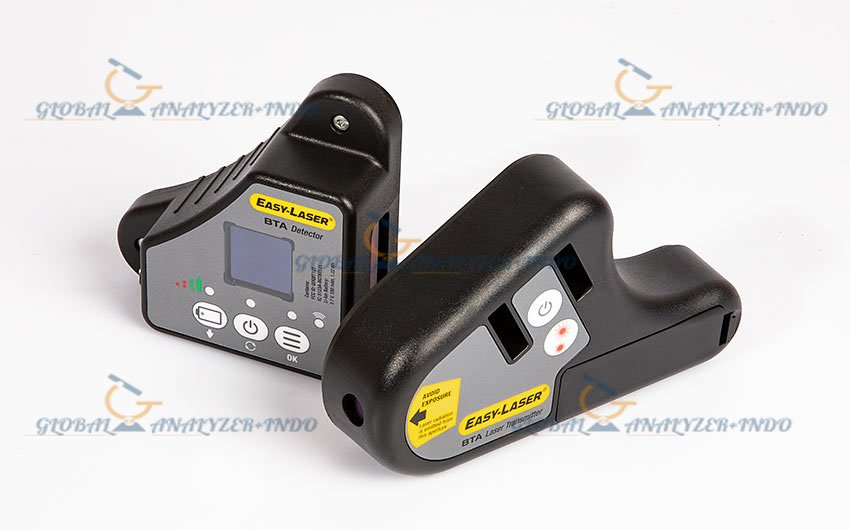

 Detector for Belt Alignment

• Model: Wireless detector (Part No.: 12-1054)

• Measurement Distance: Up to 3 m [9.8’] between transmitter and detector

• Measurement Range: Axial offset ±3 mm [0.12”]; Angular value ±8°

• Display: Yellow OLED 96×96 pixels

• Connection: Bluetooth wireless

• Battery: Li-Ion, 5 hours continuous operation

• Material: ABS plastics / anodized aluminum

• Dimensions: 95x95x36 mm [3.7×3.7×1.4”]

• Weight: 190 g [6.7 oz]

 Laser Transmitter for Belt Alignment

• Model: Laser transmitter (Part No.: 12-1325)

• Compatible Sheave Diameters: 60 mm [2.5”] and larger

• Measurement Distance: 40 mm–3 m (LOW power); 0.5 m–10 m (HIGH power)

• Laser Class: 2

• Output Power: <0.6 mW (LOW), <4.8 mW (HIGH)

• Wavelength: 635–670 nm

• Beam Angle: 60°

• Accuracy: Parallelity <0.05°, Offset <0.2 mm [0.008”]

• Battery: 1x AA (R6), up to 12 hours operation

• Material: ABS plastics / hard anodized aluminum

• Dimensions: 145x86x30 mm [5.7×3.4×1.2”]

• Weight: 265 g [9.35 oz]

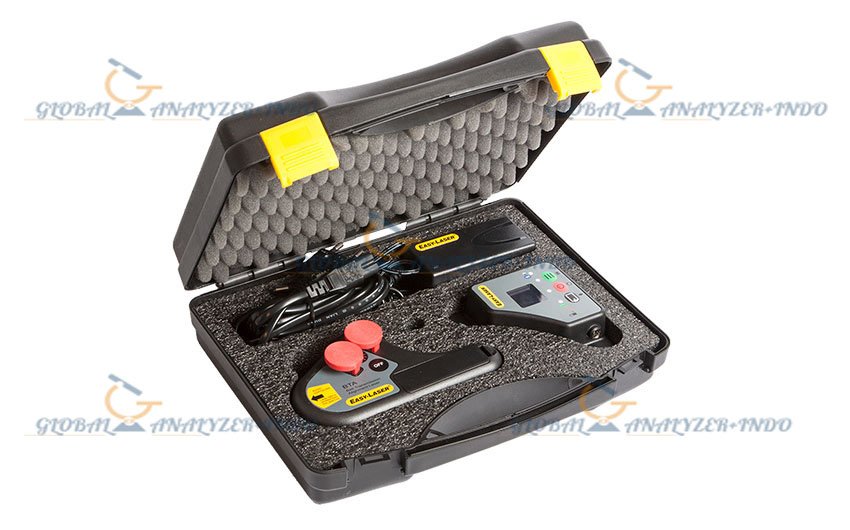

 Package Contents

The XT190 package includes everything needed for professional alignment:

• 1 Laser transmitter

• 1 Detector

• 2 Targets

• 1 Charger (100–240 V AC) with cable

• 1 USB memory stick with documentation

• 1 Carrying case

• 1 Warranty card

 Benefits of Using the Easy Laser XT190

• Faster and more accurate alignment than traditional methods

• Real-time digital readouts for precise adjustments

• Compatible with a wide range of pulley types

• Easy data management and PDF report creation

• Lightweight and portable for field use

• Supports single-person operation, saving time and labor

 Warranty and Support

The Easy Laser XT190 comes with a 3-year warranty, ensuring reliability and long-term performance for professionals and maintenance teams alike.
