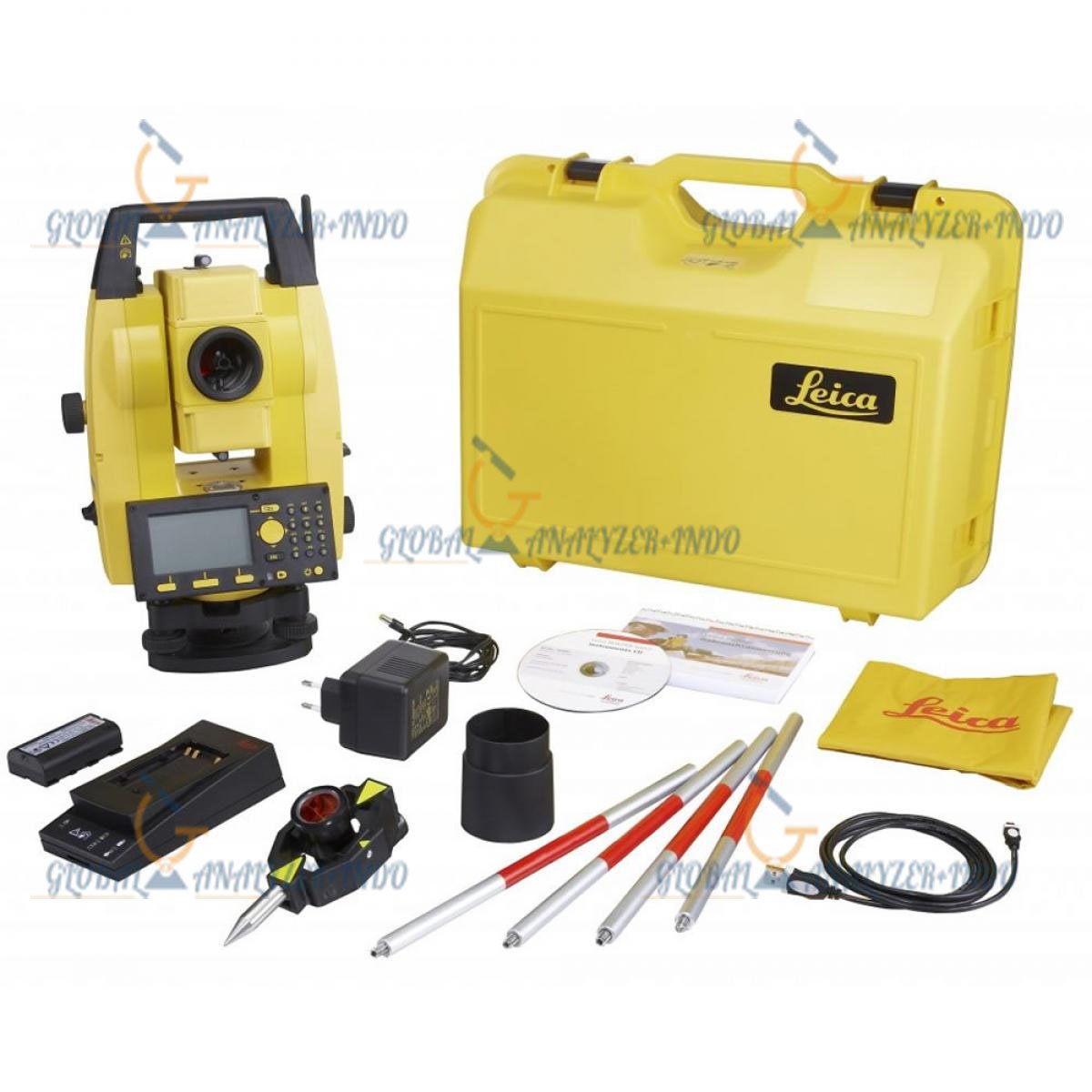

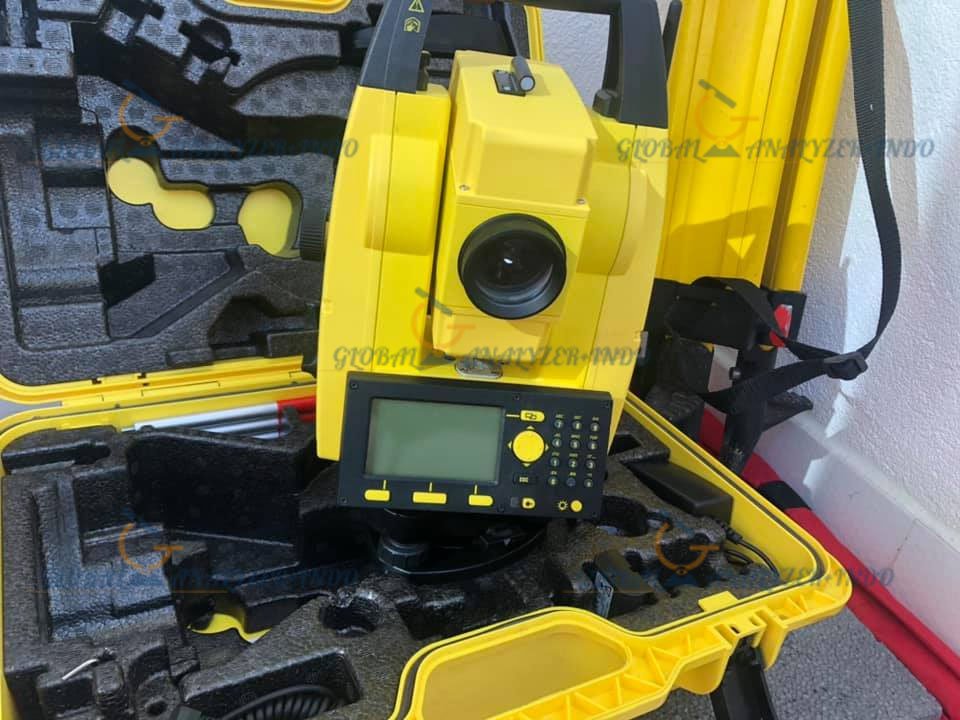

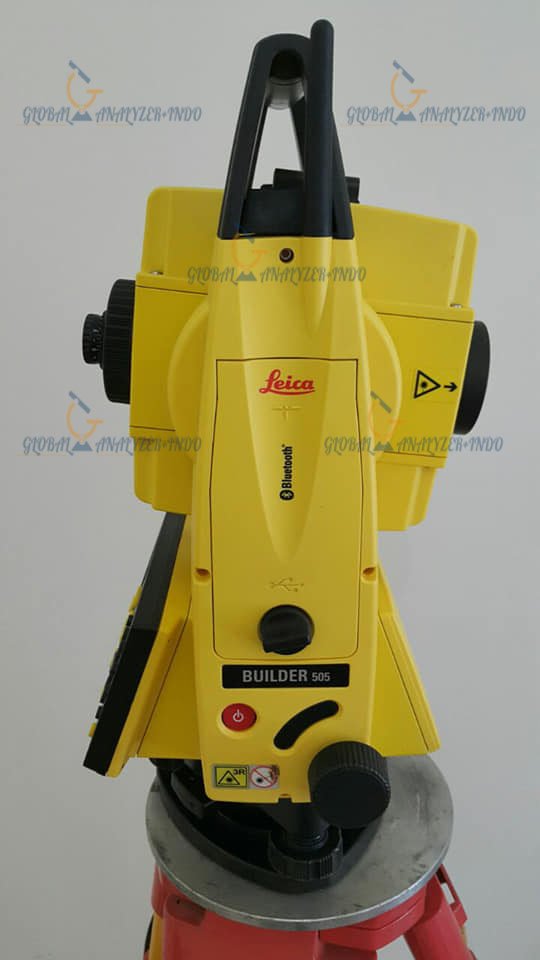

Leica Builder 505 Reflectorless Total Station

The Leica Builder 505 Reflectorless Total Station is a professional surveying instrument designed to simplify construction layout and measurement tasks. Known for its reliability and ease of use, this total station helps construction professionals improve accuracy, efficiency, and productivity on site.

Overview of the Leica Builder 505

The Leica Builder 505 is part of Leica Geosystems’ Builder series, developed specifically for construction applications. It combines electronic distance measurement (EDM) technology with intuitive operation, making it suitable for both experienced surveyors and construction teams.

Key Purpose of the Instrument

The main purpose of the Leica Builder 505 is to support fast and accurate measurements without the need for a reflector, especially in hard-to-reach or unsafe locations.

Main Features of Leica Builder 505

Reflectorless Measurement Technology

The reflectorless capability allows users to measure distances directly to surfaces such as walls, columns, or structures without placing a prism. This feature increases safety and saves time on construction sites.

High Accuracy and Reliability

The Leica Builder 505 delivers consistent measurement accuracy, which is essential for layout, alignment, and verification tasks in construction projects.

User-Friendly Interface

Designed with construction users in mind, the instrument features a clear display and straightforward controls. This reduces training time and minimizes operational errors.

Technical Capabilities

Distance Measurement Performance

The instrument supports precise electronic distance measurements for both reflectorless and prism-based surveying, adapting to different site conditions.

Angle Measurement System

Accurate angle measurement ensures proper alignment of structural elements, making the Leica Builder 505 suitable for layout and positioning work.

Data Storage and Transfer

The total station allows users to store measurement data digitally, supporting efficient documentation and easy transfer for further processing.

Applications in Construction Projects

Building Layout and Positioning

The Leica Builder 505 is commonly used for setting out building points, axes, and reference lines with high precision.

As-Built Measurements

It supports as-built surveys by accurately recording existing conditions, helping project teams verify construction quality.

Infrastructure and Site Work

From road construction to site preparation, the instrument assists in measuring distances and angles needed for various construction tasks.

Advantages of Using Leica Builder 505

Increased Work Efficiency

Reflectorless measurements reduce setup time and allow faster data collection, improving overall project efficiency.

Enhanced Safety on Site

By eliminating the need to access difficult or hazardous areas, the Leica Builder 505 helps improve safety for surveyors and workers.

Long-Term Durability

Built with robust materials, the instrument is designed to withstand demanding construction environments.

Why Choose Leica Builder 505 Reflectorless Total Station

The Leica Builder 505 Reflectorless Total Station is an ideal choice for construction professionals seeking accuracy, simplicity, and reliability. Its practical features and construction-focused design make it a valuable tool for improving measurement workflows and ensuring project quality.
