Olympus OmniScan X3 Flaw Detector

OmniScan X3: Advanced Flaw Detector for High-Performance NDT Inspection

Next-Level Precision for Critical Flaw Detection

The OmniScan X3 flaw detector is engineered to support a wide range of nondestructive testing (NDT) applications. From weld testing and pipeline inspection to corrosion mapping and composite evaluation, this instrument delivers accurate, high-resolution imaging to help professionals work more efficiently and confidently.

Whether you are inspecting pressure vessels, structural components, or corrosion-resistant materials, the OmniScan X3 provides the performance, reliability, and flexibility required for demanding inspection environments.

Key Application Areas

 Versatile Use Across Industries

The OmniScan X3 is suitable for numerous inspection tasks, including:

Weld and fabrication inspections

Pipeline and process pipe evaluations

Wind tower integrity assessments

Structural construction testing

Corrosion-resistant alloys, cladded materials, and coarse-grained metals

Composite material inspection

Flaw imaging and detection of stepwise cracking

Its compatibility with existing probes and scanners helps streamline workflow and reduces equipment transition time.

Why Choose the OmniScan X3

 Designed for Compatibility and Convenience

Supports existing probes, scanners, and accessories

Available in multiple configurations: 32:128PR, 16:64PR, and 16:128PR

Features 64-element TFM capability

Up to 8 groups and 1,024 focal laws

Compatible with MX2/SX files, enhancing convenience for current users

Internal 64 GB SSD, expandable with USB storage

Powerful Features Built for Professional Inspectors

H3: Intuitive Software and Streamlined Workflow

The interface features a modern, simplified menu system designed to minimize button presses and reduce time spent navigating settings. New and existing OmniScan users can transition smoothly and begin inspections quickly.

 Live TFM Envelope Processing

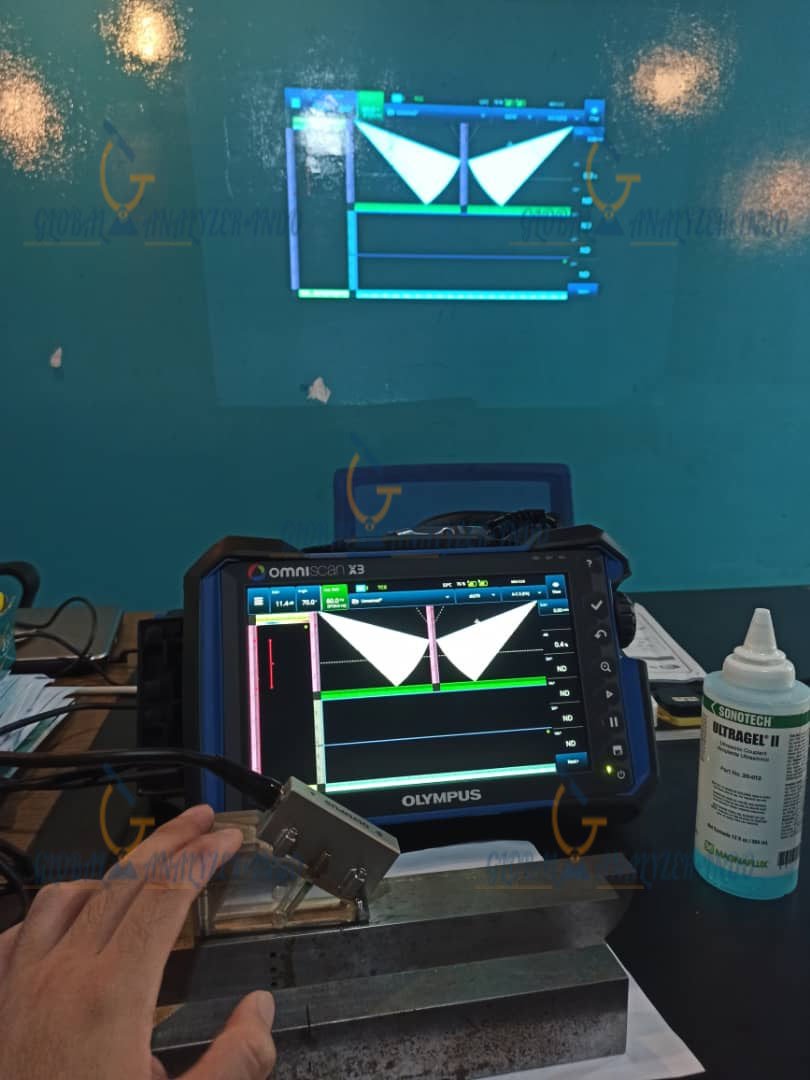

Advanced envelope processing produces clear, high-resolution TFM images that improve flaw visibility and enhance overall accuracy in detection and evaluation.

 Multiple TFM Modes for Confident Interpretation

Using different TFM wave sets within the same inspection increases the probability of detecting flaws with uncommon orientations, helping you size and interpret indications more accurately.

 Acoustic Influence Map (AIM) Tool

Before scanning, the AIM tool generates a real-time sensitivity model based on selected TFM modes, probe configurations, and reflector simulations—ensuring you validate coverage before inspection begins.

 Accelerated Calibration Process

High-speed calibration menus allow multiple group calibrations in minutes, reducing setup frustration and maximizing productive inspection time.

 Enhanced Data Analysis With OmniPC™

Leverage the power of your PC with OmniPC™ software, which features side-by-side file comparison and advanced analysis tools for efficient post-inspection data review.

SPECIFICATIONS:

Storage Devices : Storage Devices: SDHC™ and SDXC™ cards or most standard USB storage devices
Hard Drive Capacity : Hard Drive Capacity: Internal 64 GB SSD, extendable using an external USB drive
GPS : GPS: Yes (unless specified otherwise for some regions)
Wireless Connection : Wireless Connection: Yes (USB dongle sold separately as an accessory)
Lithium-ion Battery : Lithium-ion battery: 5 hours using 2 batteries (hot-swap capable)
Number of Receiving Elements : Number of Receiving Elements: OMNIX3-PATFM32128PR = 128 receiving elements
Ingress Protection Rating : Ingress Protection Rating: IP65 certified (completely protected against dust and water jets from all directions (6.3 mm nozzle)
Operating Temperature : Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
Storage Temperature : Storage Temperature: −20 °C to 60 °C (−4 °F to 140 °F) (with battery inside)  −20 °C to 70 °C (−4 °F to 158 °F) (with no battery inside)
Weight : 5.7 kg (12.6 lb) (with 1 battery)
Dimensions : (W × H × D): 335 mm x 221 mm x 151 mm (13.2 in. x 8.7 in. x 5.9 in.)

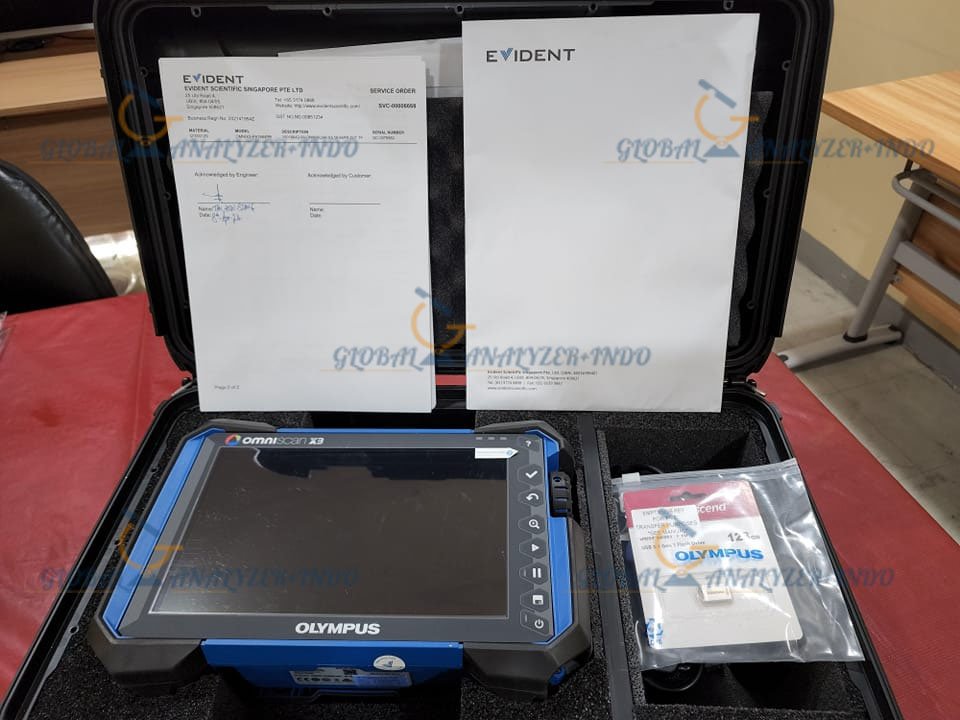

Package Includes

 Complete System and Accessories

OmniScan X3 32:128PR flaw detector

OmniPC 5 software

HSMT-Compact

OMNI-A2-SPLIT64-4UT

5L32-19.2X10-A31-P-5-OM

SA31-N55S-IHC series (various AOD models: 3.5, 4, 4.5, 5.563, 6.625, 8.625, 10.75, 12.75, 16, 24)

WTR-SPRAYER-8L

ENC1-AL-2.5-LM-MAG-UHOLDER

OMNI-A-BATT

Calibration certificate

Warranty card

Transport case

Warranty Information

Standard Warranty: 3 Years
