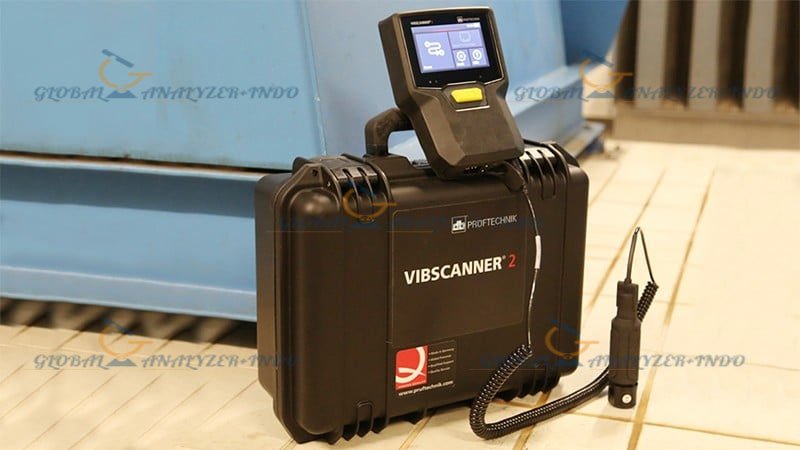

VIBSCANNER 2 EX – Explosion-Protected Vibration Measurement Tool

The VIBSCANNER 2 EX is an advanced, all-in-one vibration measurement device designed for hazardous and explosive environments. Engineered for speed, accuracy, and safety, it enables maintenance teams to quickly detect machine, gear, and bearing issues while fully complying with international explosion protection standards.

Why Choose VIBSCANNER 2 EX?

The VIBSCANNER 2 EX sets a new benchmark in vibration analysis by combining triaxial measurement technology, rugged industrial design, and intuitive operation. It is ideal for route-based maintenance tasks where reliability and safety are critical.

Key Benefits

• Certified for use in explosive and hazardous zones

• Simultaneous three-axis vibration measurement

• Up to four times faster data collection than traditional systems

• Simple one-button operation

• High-quality data with minimal time spent at each machine

Designed for Hazardous Environments

Explosion Protection Compliance

The VIBSCANNER 2 EX is approved for use in areas where flammable gases, dusts, fibers, or vapors may be present during normal operation. Its explosion-protected design allows safe vibration monitoring in industries such as oil & gas, chemicals, mining, and energy production.

Rugged Industrial Construction

• Antistatic and conductive housing

• Shock-resistant and dust-protected design

• IP55 protection rating for harsh environments

Fast and Accurate Vibration Measurement

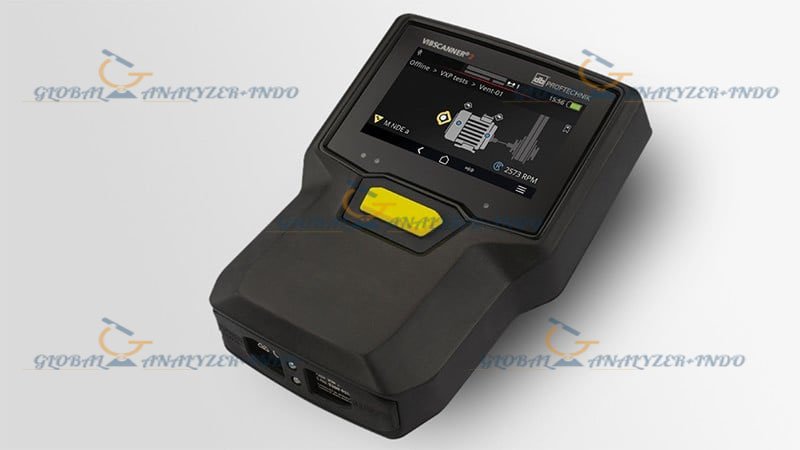

Triaxial Sensor Technology

The integrated triaxial sensor captures vibration data on the X, Y, and Z axes simultaneously. This eliminates the need for multiple measurement points and ensures consistent, high-quality data collection.

The “Triax-Effect”

Thanks to this technology, the VIBSCANNER 2 EX requires only one measurement point instead of three. This dramatically reduces inspection time while maintaining precise diagnostic accuracy.

RPM Finder

An intelligent RPM detection function automatically determines rotational speed from the vibration signal, enabling faster and more reliable analysis.

Optimized for Route-Based Maintenance

Efficient Data Collection

• Minimal machine contact time

• Parallel digital signal processing

• High sampling rates for detailed analysis

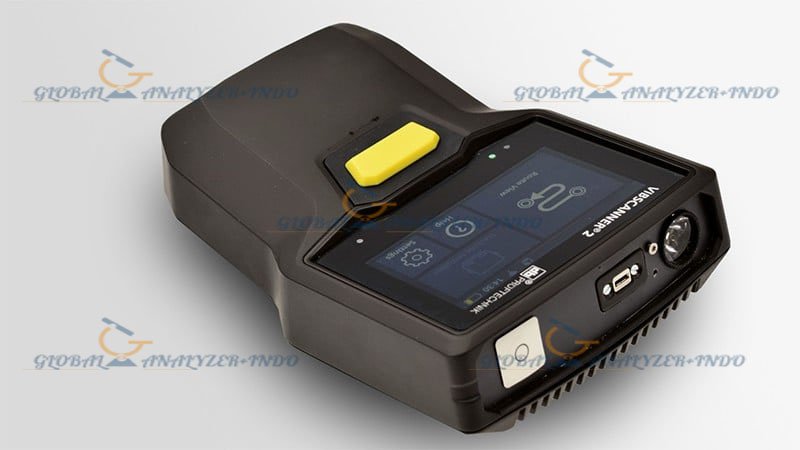

Easy to Use Interface

• Large, high-contrast capacitive touchscreen

• Glove-compatible multi-touch operation

• Clear graphical user interface requiring no prior training

Remote Condition Monitoring Services

Expert Support and Analytics

The VIBSCANNER 2 EX supports remote condition monitoring services, providing access to experienced vibration analysts. These services help organizations interpret data, detect faults early, and optimize maintenance strategies.

Business Benefits

• Improved asset reliability

• Reduced unplanned downtime

• Lower maintenance costs

• Extended machine lifespan

• Better maintenance planning

Technology Overview

Measurement Performance

• Three synchronous analog channels (X, Y, Z)

• High dynamic range for accurate diagnostics

• Advanced signal processing with 24-bit resolution

Display Technology

• Optically bonded touchscreen for high visibility

• Shock-resistant and durable design

• Adjustable brightness with ambient light sensor

Technical Specifications Overview

Measurement & Processing

• Channels: 3-axis synchronous measurement

• Sampling Rate: Up to 131 kHz per channel

• Dynamic Range: 109.5 dB

• Signal Processing: 3 × 24-bit ADC

Power & Battery

• Rechargeable lithium-ion battery

• Up to 10 hours continuous operation

• Fast charging with energy-saving mode

Connectivity

• USB interface for data transfer

• WiFi connectivity with secure protocols

• RFID reader for asset identification

Physical Characteristics

• Weight: Approx. 1.0 kg

• Compact, ergonomic design

• Operating temperature range suitable for industrial environments

Certifications and Compliance

The VIBSCANNER 2 EX complies with major international safety and quality standards, including:

• ATEX

• IECEx

• CE

• RoHS

• FCC

• CSA (U.S. & Canada)

These certifications ensure safe operation in explosive zones worldwide.

Applications

The VIBSCANNER 2 EX is ideal for:

• Motors and gearboxes

• Pumps and compressors

• Fans and rotating machinery

• Preventive and predictive maintenance programs

• Hazardous industrial environments
