PRUFTECHNIK VIBXPERT EX Dual Channel FFT Data Collector and Signal Analyzer

 VIBXPERT EX – Intrinsically Safe FFT Data Collector & Vibration Analyzer for Hazardous Areas

The VIBXPERT EX is a next-generation, intrinsically safe two-channel FFT data collector and signal analyzer engineered for use in hazardous industrial zones. Designed for explosive environments such as refineries, petrochemical plants, offshore rigs, and chemical facilities, it provides fast, reliable condition monitoring and troubleshooting for rotating machinery.

This rugged-grade instrument captures vibration data, bearing condition, inspection notes, and process information, all fully compatible with the OMNITREND® software ecosystem for streamlined analysis.

 High-Performance Machinery Monitoring in ATEX Zone 1

 Certified Intrinsic Safety for Explosive Environments

VIBXPERT EX carries a II 2 G Ex ib IIC T4 intrinsic safety rating and is fully ATEX Zone 1 compliant, allowing technicians to measure machine condition without additional protective equipment or workarounds.

 Designed for Hazardous Industrial Operations

Ideal for industries that demand precision and safety, including:

• Petrochemical processing

• Fuel and gas refineries

• Offshore oil and gas platforms

• Chemical manufacturing plants

• Hazardous-material storage sites

 Key Features of the VIBXPERT EX

 High-Resolution FFT Analysis

With 102,400 lines of resolution, the VIBXPERT EX supports detailed diagnosis of machine faults such as imbalance, misalignment, bearing damage, looseness, cavitation, and resonance.

 Fast Data Collection with Trending Spectra

The “trending spectra” feature accelerates field data collection, enabling teams to gather critical condition data more efficiently while maintaining highest accuracy.

 Full Functionality for In-Depth Diagnostics

Core features include:

• Acceptance measurements

• Time waveform capture

• Run-up and coast-down analysis

• One- and two-plane balancing

• Stroboscope output for visual speed checking

• Expanded analysis via protection-system interface

 Rugged and Field-Ready

The device is built with a durable aluminum housing, IP65 protection, and a design optimized for shock, dust, and moisture resistance—ensuring dependable operation in the harshest environments.

 Technical Specifications

 Input Capabilities

• 2× analog inputs

  • Voltage AC/DC ±30 V

  • Current AC/DC ±30 mA

  • ICP accelerometer (2 mA, 24 V max.)

  • CLD accelerometer (10 V, 10 mA max.)

• Frequency range: DC to 51.2 kHz

• Dynamic range: 96 dB (measurement)

• Sampling: up to 131 kHz per channel

• 1× Type-K thermocouple

• 1× digital pulse/tacho input

 Output

• TTL stroboscope control

• Signal-Out for headphone listening and oscilloscope visualization

 Measurement Performance

• Shock pulse: –10 to 80 dBsv

• RPM: 10–200,000 min⁻¹

• Temperature: –50°C to +1000°C

• Standards compliant for industrial vibration monitoring

 Hardware

• Display: Backlit LCD, 480 × 320 pixels

• Battery: Li-Ion 7.2V / 4.8Ah (34Wh)

• Charging time: < 5 hours

• Memory: 64 MB RAM + CompactFlash (1–4 GB)

• Dimensions: 250 × 220 × 37 mm

• Weight: ~2.3 kg

• IP Rating: IP65

• Operating temperature: –10°C to +50°C

• Intrinsic Safety: II 2 G Ex ib IIC T4

 Package Contents

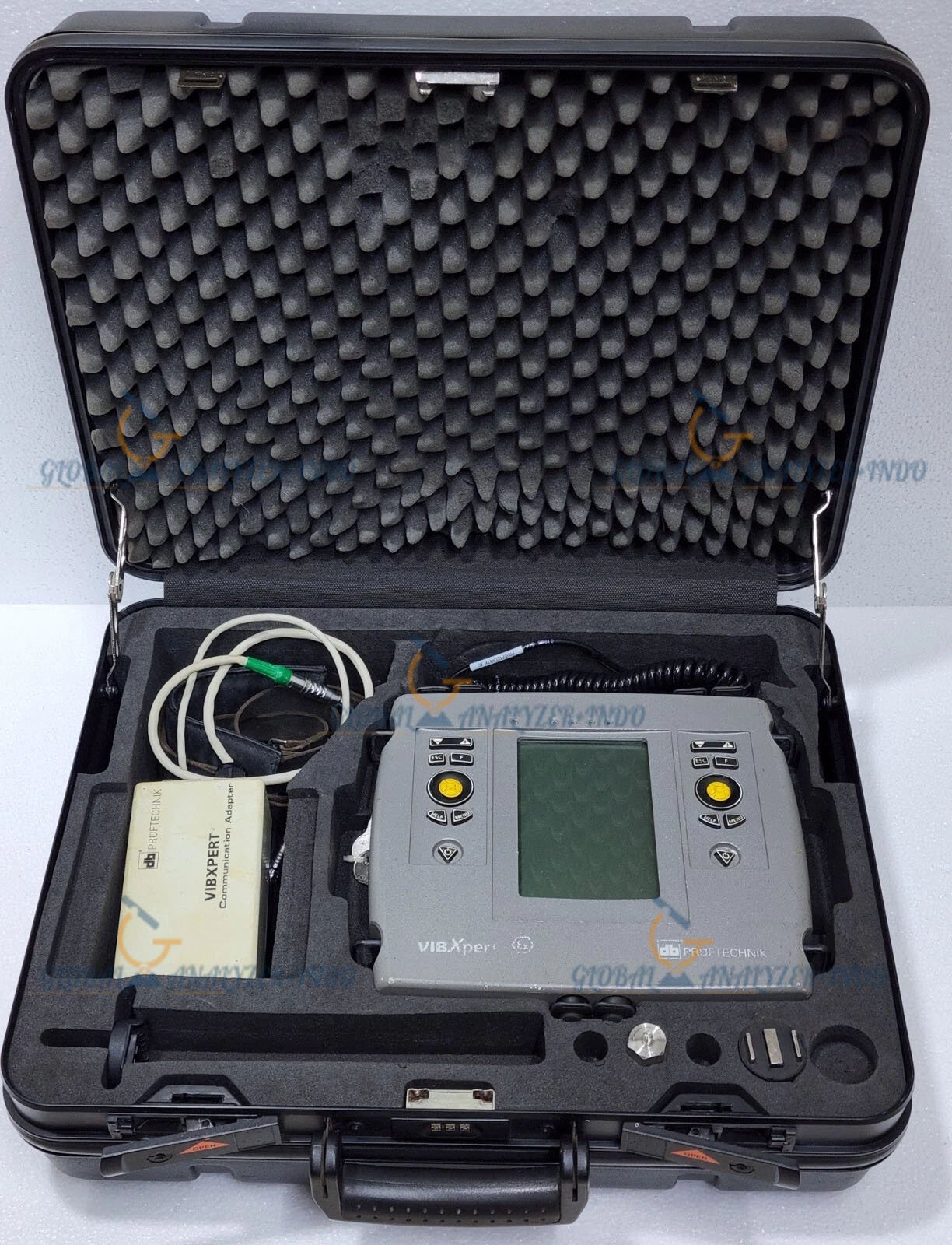

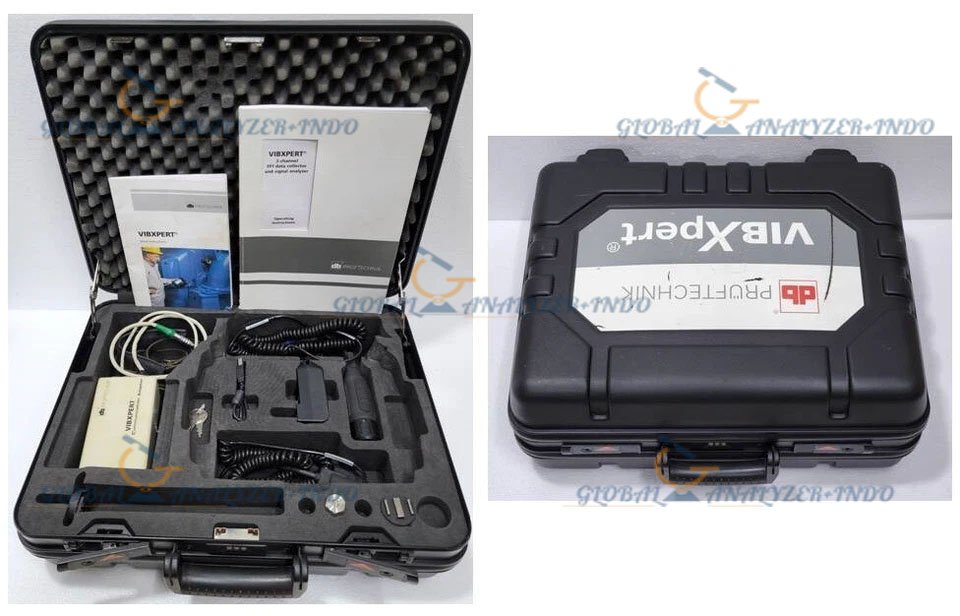

The VIBXPERT EX kit includes:

• VIBXPERT EX instrument

• Charger

• Protective carrying case

• Universal communication adapter

• USB cables

• Leather carrying strap

• 1-channel and 2-channel firmware certificates

• Spiral cables for CLD sensors

• Intrinsically safe accelerometers (2×)

• Magnetic mounting holders

• Full manual, quick-start guide, balancing manual

• OMNITREND software (CD-ROM)

• ATEX certification documents

• Communication adapter technical data

• OMNITREND web license

• PC license for VIBXPERT EX

 Warranty

The VIBXPERT EX comes with a 1-year warranty, covering manufacturing defects and ensuring reliable use in mission-critical operations.
