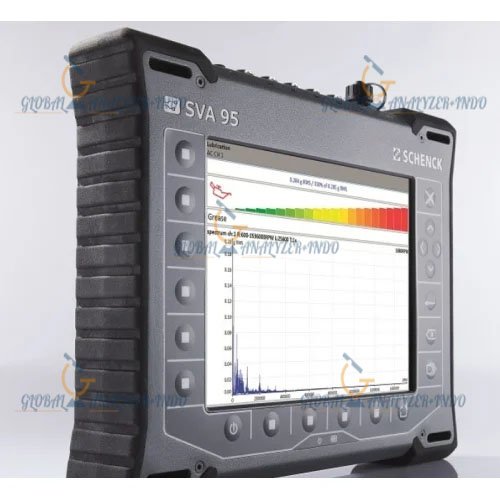

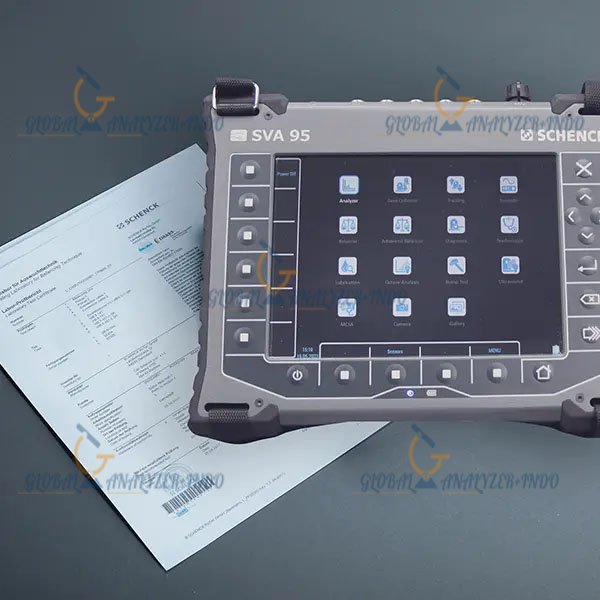

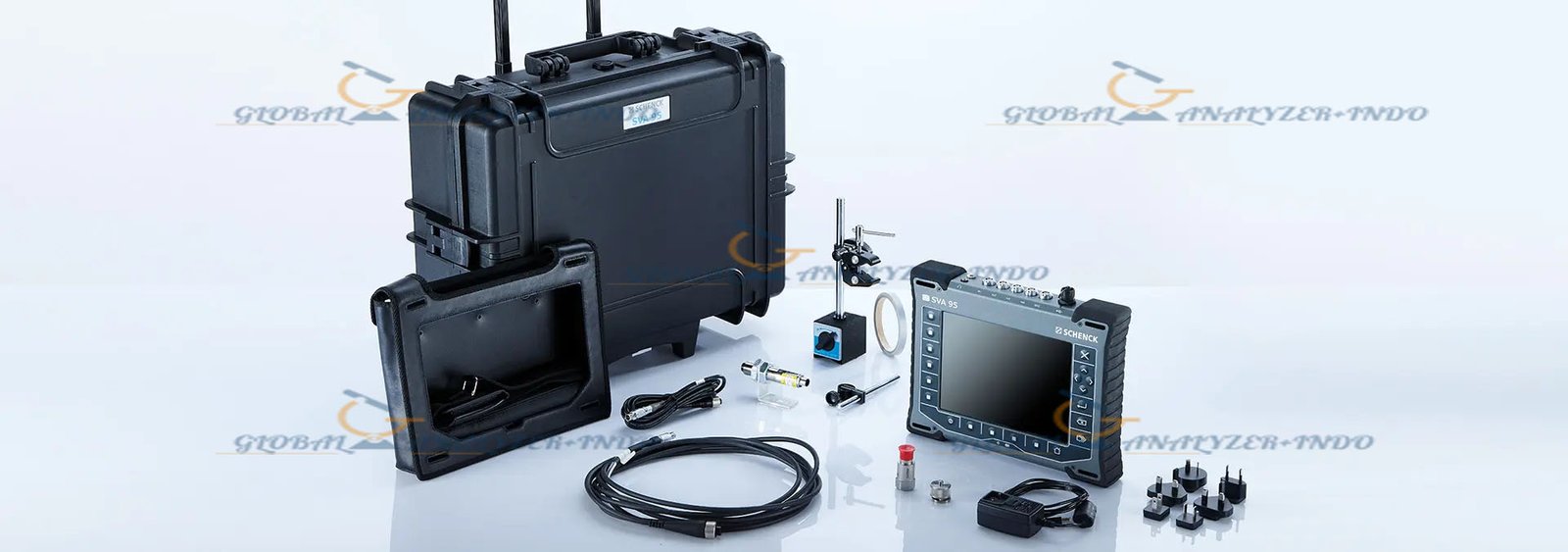

Schenck SVA 95 – Smart VibroAnalyzer 95 Vibration Analyzer
The Schenck SVA 95 Smart VibroAnalyzer 95 is a cutting-edge vibration analyzer designed to deliver precise machinery diagnostics and predictive maintenance solutions. Built for industrial professionals, this instrument combines powerful data acquisition, analysis, and visualization features in a compact and ergonomic package.
Advanced Features of the Schenck SVA 95
The SVA 95 is engineered to simplify vibration monitoring while providing highly accurate insights into equipment health. Its advanced features include multi-channel simultaneous data acquisition, high-resolution spectral analysis, and intelligent diagnostic software. The analyzer is capable of monitoring a wide range of machinery, from high-speed compressors to complex gearboxes and variable speed equipment.
Multi-Channel Vibration Analysis
Equipped with multiple input channels, the SVA 95 allows simultaneous collection of vibration signals from several axes. This capability reduces data collection time significantly, enabling technicians to perform faster inspections while maintaining high accuracy. Using triaxial sensors, the analyzer can capture vertical, horizontal, and axial readings in a single operation.
High-Resolution Data and Spectral Analysis
The analyzer supports high-resolution spectral analysis, allowing users to detect subtle machinery anomalies before they develop into critical failures. With a frequency span suitable for most industrial machinery and advanced Fast Fourier Transform (FFT) capabilities, the SVA 95 provides real-time diagnostics for both routine monitoring and troubleshooting complex mechanical issues.
Ergonomic Design for Field Use
Engineered for professionals working in demanding environments, the SVA 95 features a lightweight, portable design. Its user-friendly interface and adjustable display allow operation in bright sunlight or dark plant interiors. The analyzer’s long battery life ensures uninterrupted fieldwork, making it ideal for extended inspection routes without frequent recharging.
Intelligent Diagnostics and Embedded Expertise
The Schenck SVA 95 comes equipped with embedded diagnostic tools that guide technicians through advanced vibration analysis. Using pre-configured algorithms, the analyzer automatically identifies potential machinery defects, including imbalance, misalignment, bearing faults, and looseness. Even novice users can perform complex diagnostics efficiently, reducing the risk of overlooking critical issues.
Predictive Maintenance Benefits
By providing accurate and actionable data, the SVA 95 supports predictive maintenance strategies that extend equipment life and minimize unplanned downtime. Maintenance teams can identify early signs of wear or failure, plan repairs proactively, and improve overall operational efficiency.
Technical Specifications
The Schenck SVA 95 is built to meet rigorous industrial standards and provides detailed hardware and performance specifications:
Input Channels and Signal Processing
The analyzer features multiple AC and DC channels, supporting simultaneous signal acquisition. It provides high input sensitivity for precise vibration measurements and allows real-time analysis using FFT, envelope detection, and order tracking techniques.
Display and User Interface
A high-resolution touch display ensures clear visibility of spectra, waveforms, and diagnostic results. The interface supports both touchscreen and keypad operation, with adjustable backlight for varying environmental conditions.
Data Storage and Connectivity
The SVA 95 offers robust internal memory and expandable storage via SD cards. Data can be exported via USB or Ethernet for further analysis or archival. Optional wireless connectivity allows remote monitoring and centralized data management.
Environmental and Durability Standards
Designed for harsh industrial conditions, the analyzer is sealed to IP65 standards and operates within wide temperature ranges. Its durable housing and ergonomic form factor make it ideal for prolonged field use.
Applications of the Schenck SVA 95
The SVA 95 is suitable for a broad range of industrial machinery, including pumps, compressors, motors, turbines, and rotating equipment in manufacturing, energy, and process industries. Its versatility makes it a key tool for maintenance engineers and reliability specialists.
Specifications :
Input Channels
4 x AC/DC, 1 x TACHO for speed probe/external trigger
Frequency ranges (-3 dB): Maximum range
0.35 Hz – 90 kHz (1 Ch, 194 kHz sampling)
Maximum range
0.35 Hz – 5 kHz (4 Ch, 64 kHz sampling)
Minimum range
0.35 Hz – 25 Hz (4 Ch, 64 Hz sampling)
Sampling mode
Fully simultaneous for 4 channels
FFT resolution
100 to 3,276,800 lines
Display: Color
1125 x 800 pixels
Processor
Intel Atom 1.9 GHz
Memory, Route
64 GB, max., 16 GB for one route, number of routes is limited by free memory only
Raw signal recorder
64 kHz sampling frequency
4 Ch memory consumption 3 GB/hour
4 Ch total recording – 20 hours
Interface
USB 3.0, 2.0 compatible
Operating temperature range
-10 ºC to +50 ºC (-14 ºF to +122 ºF)
Power
Battery 8 hours of operation
Case
IP 65 rating, aluminium heavy duty
Size & Weight
29.5 x 23 x 4.9 cm, 1.98 kg
Languages
German, English, French, Spanish, Italian, Russian, Hungarian, Romanian, Polish, Czech, Thai, Chinese
Built-in camera
5 MPx, autofocus
