Veo3: Inspect With Confidence Using Advanced Ultrasonic Technology
The Veo3 brings a new level of confidence and precision to ultrasonic inspection. Building on the trusted Veo product line, this latest generation introduces a PCAP touch interface, customizable user templates, and—most notably—live TFM capabilities. Designed for demanding industrial workflows, the Veo3 helps inspectors maintain reliable procedures while benefiting from enhanced image resolution and performance.
Why Veo3 Sets a New Standard in Ultrasonic Inspection
A System Engineered for User Performance
The Veo3 is built around modern digital technology and a high-performance architecture that supports concurrent multi-scan and multi-technique operations. Inspectors can maintain their existing workflow while unlocking the clarity and sizing accuracy offered by TFM.
Enhanced Resolution Without Changing Your Workflow
With multi-technique integration, the Veo3 allows teams to continue using their trusted inspection methods while gaining the advantages of improved flaw characterization and real-time imaging.
Superior Digital Technology for Faster, Clearer Results
High-Capacity Data Processing
Equipped with a powerful 32-channel phased array beamformer, the Veo3 delivers impressive signal-to-noise ratio through enhanced digital processing.
Optimized for Large Data Acquisition
The system uses a 64-bit Linux operating system supported by a fast 128 GB SSD, enabling recording of very large acquisition files without compromising performance.
Multi-Technique Viewing in Real Time

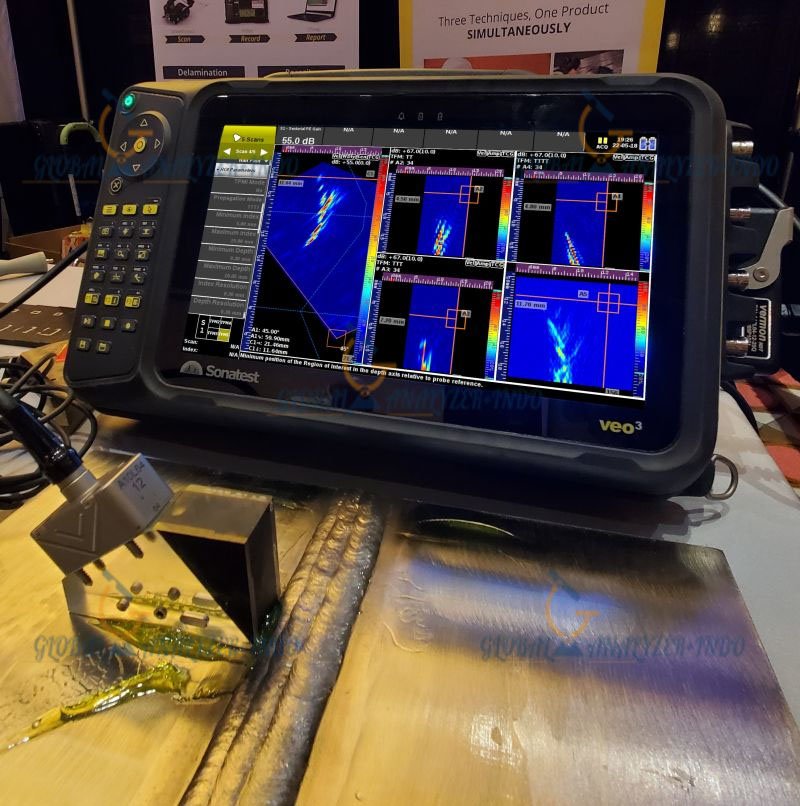

Inspectors can display simultaneous TFM, PA, and TOFD views during inspection—providing a complete understanding of component integrity in one instrument.
Intuitive Interface and Streamlined Workflow
User-Friendly Menus
The workflow-driven interface makes setup effortless. Built-in wizards help configure essential parameters such as:
Sound velocity
Wedge delay
DAC
TCG
TOFD setup
Encoder calibration
3D Inspection Planning
A fully integrated 3D inspection plan displays probe positioning and test part geometry. This visual assistance simplifies setup and supports accurate reporting.
Instant Adjustments
Focal law modifications are applied instantly, offering:
Angle resolution down to 0.1°
Up to 1024 beams without performance loss
Data can be permanently recorded for detailed reporting and further analysis.
FMC and TFM: High-Precision Imaging
High-Resolution TFM Imaging
The Veo3 can produce up to six live TFM scans from multiple FMC sources. TFM images can reach up to 500,000 pixels with resolutions as fine as 100 pixels per mm.
Full FMC Data Recording
All FMC data can be stored for advanced review, allowing users to compare historical and current inspections to detect defect growth or corrosion progression.
TFMi™ for Unmatched Defect Characterization
By combining up to four live TFM modes, the Veo3 delivers imaging that approaches real shape accuracy. This makes flaw characterization faster and more reliable—especially in weld analysis.
Technical Specifications
Phased Array (32:128PR)
Multiscan Capability: Up to 8 scans
Pulsers/Receivers: 32:128PR
Gain Range: 80 dB
Sampling Frequency: 125 MHz @ 12-bit
Bandwidth: 0.2–23 MHz
Pulse Rate Frequency: 50,000 Hz
Pulse Voltage: 100–500 V ActiveEdge©
Focusing Modes: Natural, Constant Depth, Constant Path, Constant Offset
S-Scan Resolution: Up to 0.1°
L-Scan Resolution: Down to 1 element or double resolution
Max PA Beams: Up to 1024 focal laws
Measurement & Tools
4 Gates / A-Scan Tools
TCG, DAC & Split-DAC
Extraction Box
3D Live Rendering Scan Plan
PDF Auto-Report & CSV Export
Integrated PDF Reader
Active Help for Calibration & Optimization
System & Environmental
Operating Time: 6 hours (hot-swappable batteries)
Power Input: AC 110/240V, 50/60 Hz
Dimensions: 115 × 220 × 225 mm
Weight: 5.1 kg (without batteries)
Environmental Rating: Designed for IP66
Standards Compliance: ISO18563 (EN16392) & EN12668

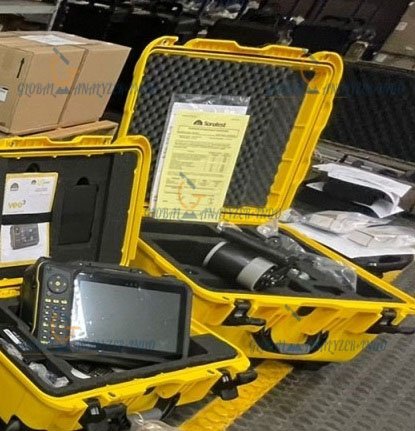

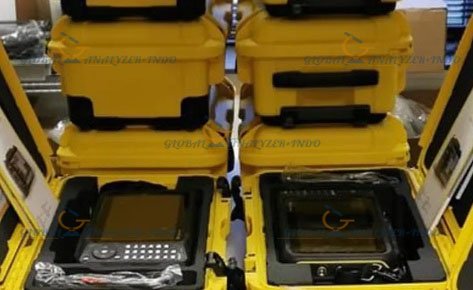

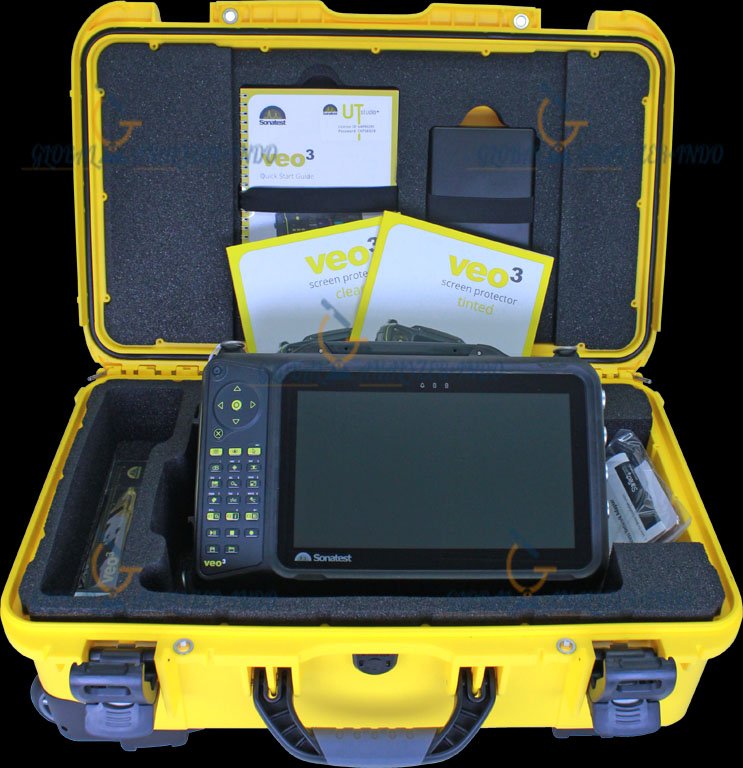

Package Includes
Veo3 Phased Array Flaw Detector
2 Lithium-Ion Batteries
8GB USB Stick
Ruler
PA 15V 4A AC/DC Power Adapter
Quick Start Guide (Hard Copy)
User Manual & Quick Start Guide (USB)
Carry Strap
Transport Case
Screen Protector (Clear/Tinted)
UTstudio Standard License
Warranty Card
Calibration Certificate
Warranty
The Veo3 is protected by a 5-year warranty, offering long-term reliability and confidence in demanding inspection environments.
