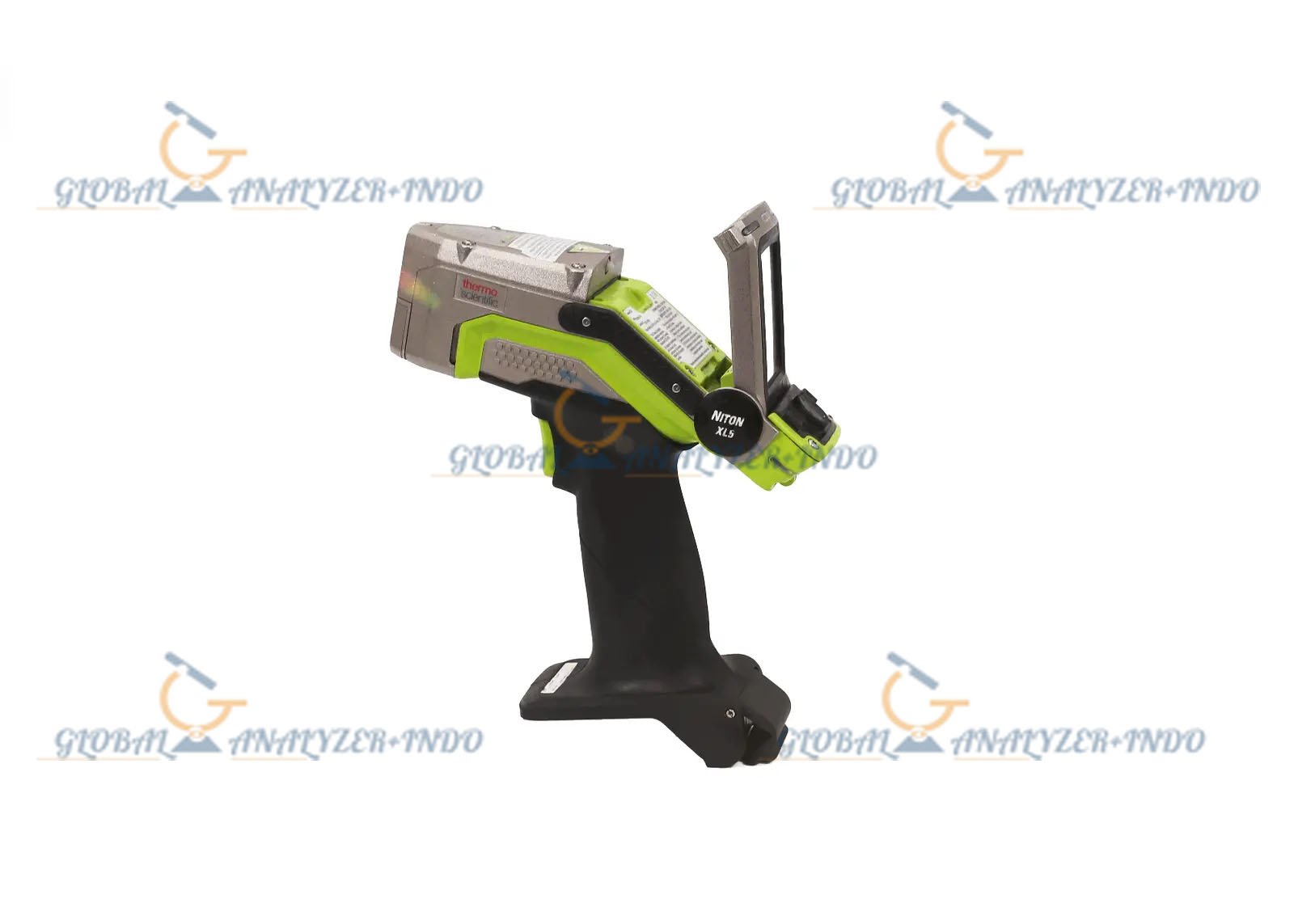

Thermo Scientific Niton XL5 Plus Handheld XRF Analyzer – High-Performance Elemental Identification

The Thermo Scientific Niton XL5 Plus is one of the most advanced handheld XRF analyzers available today, engineered to deliver exceptional performance even when analyzing lightweight elements. It provides rapid, non-destructive elemental analysis across metals, alloys, soils, geological materials, and consumer products. With its intuitive design, high-speed processing, and versatile applications, the Niton XL5 Plus stands as a reliable solution for professionals who require precision and speed in field or laboratory environments.

Overview of the Niton XL5 Plus XRF Analyzer

Built for Fast and Confident Elemental Analysis

The Niton XL5 Plus is equipped with a powerful 5W X-ray tube and a proprietary large-area silicon drift detector (SDD). This combination enhances sensitivity, enabling users to confidently measure elements from magnesium to heavier metals with minimal effort.

Lightweight, Rugged, and Field-Ready

Weighing only 2.8 lbs (1.3 kg), the analyzer offers exceptional portability. Its compact nose design, tilting touchscreen, and IP54-certified casing make it ideal for demanding industrial and outdoor environments.

Key Features of the Niton XL5 Plus

1. Advanced Analytical Performance

5W X-ray tube for increased excitation power

Extra-large area drift detector with graphene window for improved light element detection (Mg, Al, Si, P, S)

High count rate and enhanced resolution for accurate, repeatable results

Optimized for Light Elements

The advanced detector design drastically improves sensitivity for low-energy X-rays, enabling precise identification of aluminum alloys, magnesium components, and coated materials.

2. Intelligent Design for Maximum Productivity

Miniaturized analysis head improves access to tight or complex areas

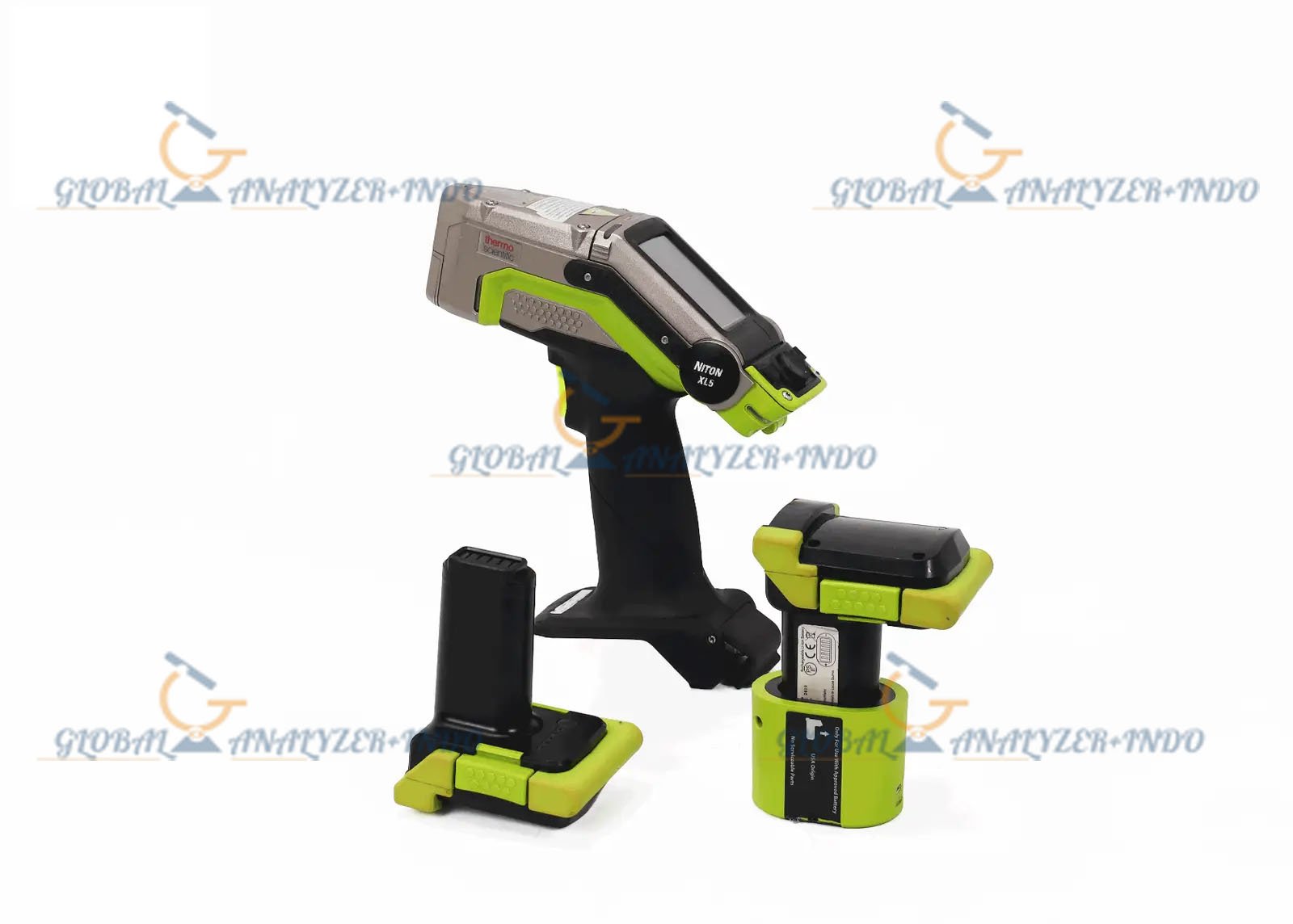

Hot-swap battery system prevents downtime

Tilting color touchscreen for comfortable use in any position

Dual cameras (macro + micro) enhance targeting accuracy

User-Friendly Interface

Directional keys and touchscreen controls allow for smooth navigation, even when wearing gloves on industrial sites.

3. Smart Connectivity and Data Handling

WiFi and USB-C data transfer

16 GB storage for up to 130,000 readings with spectra

Built-in GPS for geotagged data collection

Secure and Customizable

Password-protected user profiles and customizable data entry help maintain consistent workflows across teams.

Applications of the Niton XL5 Plus XRF Analyzer

Metal and Alloy Verification

Ideal for:

• Manufacturing and fabrication

• Weld inspection

• Incoming material verification

Positive Material Identification (PMI)

Provides fast PMI testing in petrochemical, power generation, and aerospace industries.

Scrap Recycling Operations

• Quick sorting of mixed metals

• Identification of high-value alloys

• Detection of tramp elements

Coating Thickness Measurements

Capable of measuring:

• Single metal layers

• Binary metal coatings
  Perfect for surface finishing, automotive, and plating industries.

Precious Metal and Jewelry Testing

The XL5 Plus delivers accurate gold, silver, platinum, and palladium analysis without damaging samples.

Geochemical and Mining Applications

• On-site elemental analysis of rock and soil

• Exploration target identification

• Real-time decision support in drilling operations

Environmental and Consumer Safety Screening

• Heavy metal detection in soils

• Screening for hazardous elements in consumer products

• Regulatory and compliance testing

Technical Specifications

Data Storage & Transfer

• Storage: 512 MB internal + 16 GB industrial-grade memory

• Capacity: Up to 130,000 readings with spectra

• Transfer: WiFi, USB-C

Detector & Display

• Detector: Extra-large area SDD with graphene window

• Protection: Detector ProGuard included

• Display: Tilting color touchscreen

X-Ray Source

• Anode: Ag (silver)

• Voltage: 6–50 kV

• Current: 0–500 µA, dynamically adjustable

• Filter Wheel: 6-position automatic filter

Spot Size Options

• Standard: 8 mm collimation

• Optional: 3 mm micro-spot

Software & Operating System

• OS: Linux

• Support Software: NitonConnect

• Libraries: Global alloy standards (SAE, AISI, ASTM, AA, DIN, GB) with user customization

Power & Battery

• 12V rechargeable Li-ion battery

• Hot swap capability

• Optional AC power supply

Operating Conditions

• Temperature: 0°C to 50°C

• Humidity: 10%–90% (non-condensing)

• Certification: CE, RoHS, FCC, IEC 61010-1:2010

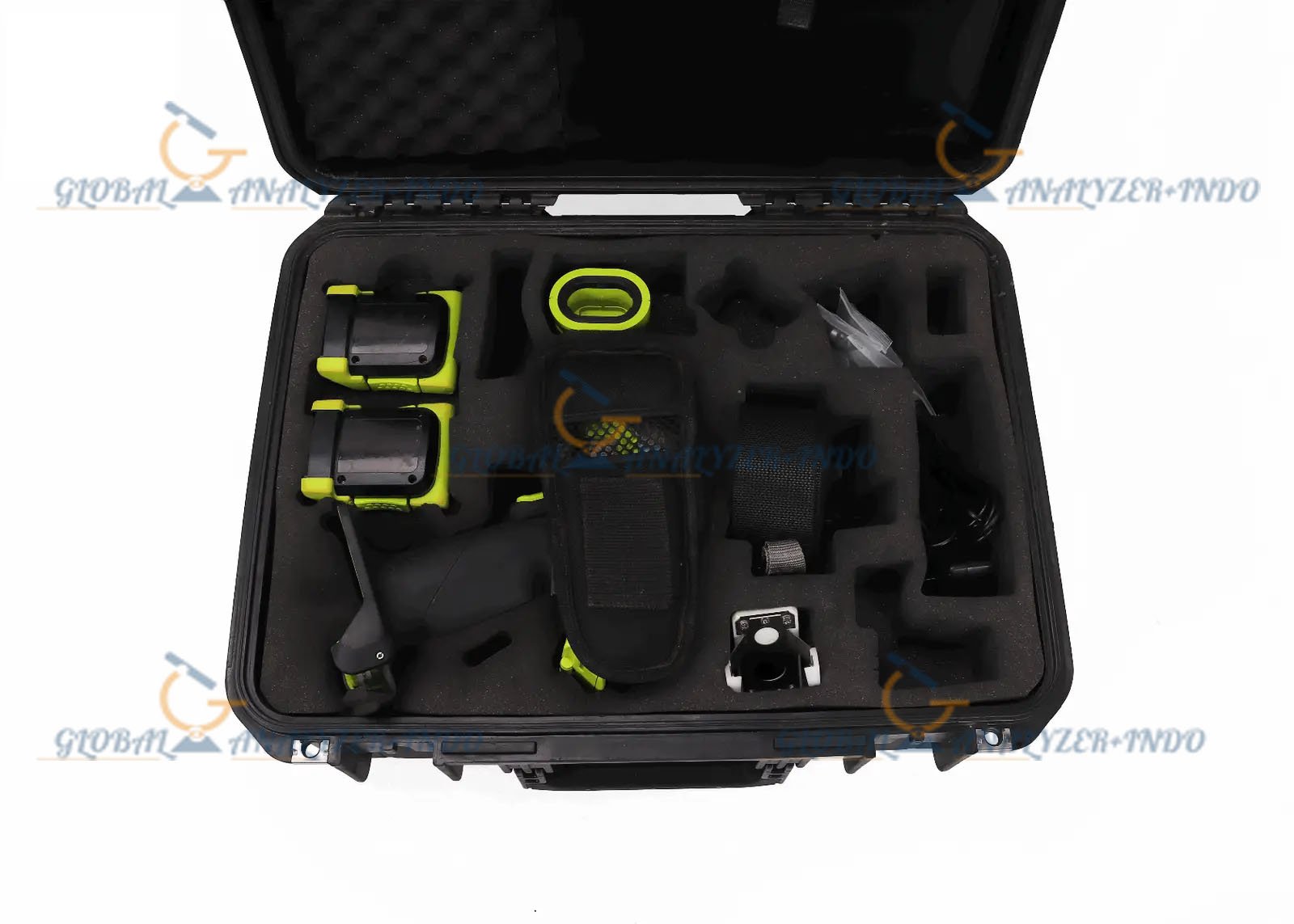

Included Accessories

Niton XL5 Plus Analyzer

Shielded carrying case

Backscatter shield

Portable test stand

Soil guard

Belt holster

Two Li-ion batteries

AC charger/adapter

Check samples

Safety lanyard

USB cable

User manual

Certificate of Calibration

Warranty card
