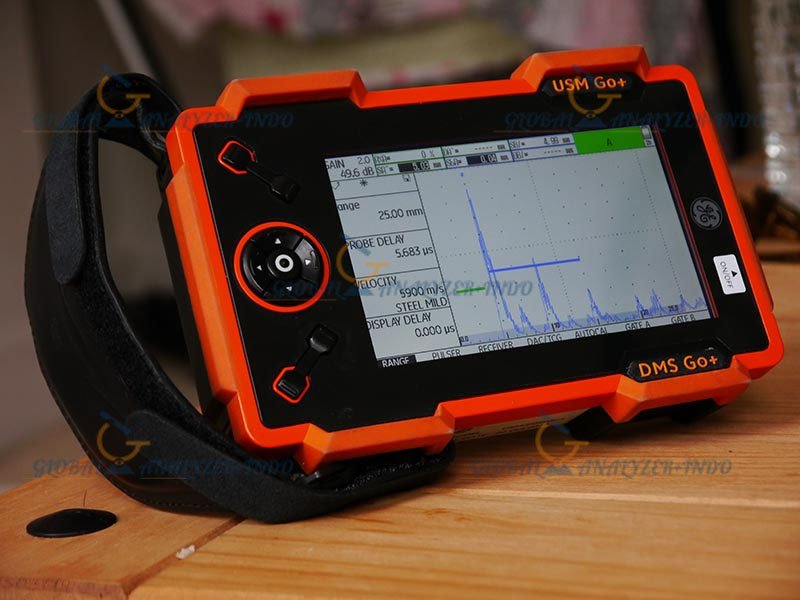

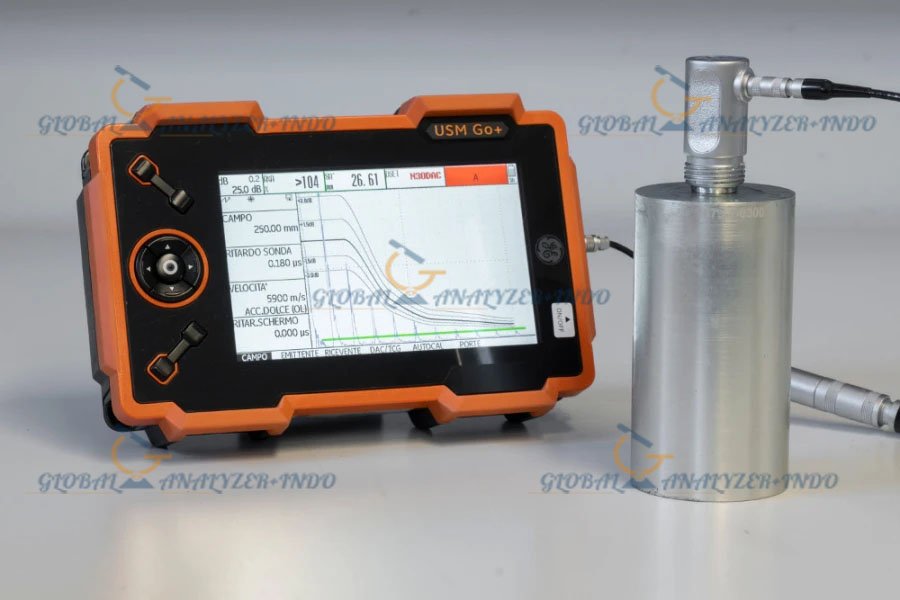

Waygate Technologies USM Go+ Ultrasonic Flaw Detector
The Waygate Technologies USM Go+ Ultrasonic Flaw Detector is a compact and powerful nondestructive testing instrument designed for accurate detection of internal material defects. In inspection environments where mobility and reliability are essential, ultrasonic testing offers a proven solution. Therefore, the USM Go+ enables inspectors to perform precise evaluations efficiently, both in the field and in industrial facilities.
Introduction to USM Go+ Ultrasonic Testing Technology
Ultrasonic flaw detection is widely used to identify internal discontinuities such as cracks, voids, and inclusions. However, effective inspection often requires a balance between performance and portability. For this reason, the Waygate Technologies USM Go+ Ultrasonic Flaw Detector combines advanced ultrasonic capabilities with a lightweight and user-friendly design.
Purpose of Portable Ultrasonic Flaw Detection
The primary purpose of portable ultrasonic flaw detection is to allow inspectors to assess material integrity without causing damage. As a result, inspections can be conducted directly at the inspection site. Moreover, portable instruments reduce downtime and support faster maintenance decisions.
Waygate Technologies Expertise in Ultrasonic Inspection
Waygate Technologies has extensive experience in developing ultrasonic testing solutions. Consequently, the USM Go+ reflects this expertise by delivering consistent signal quality, reliable defect detection, and practical operation for everyday inspection tasks.
Key Features of Waygate Technologies USM Go+ Ultrasonic Flaw Detector
The USM Go+ is designed to meet the needs of modern inspection professionals. In addition, its features focus on accuracy, portability, and durability.
High-Performance Ultrasonic Signal Processing
Accurate flaw detection depends on stable ultrasonic signals. Therefore, the USM Go+ provides high-performance signal processing that enhances defect visibility. Furthermore, clear signal representation improves inspection confidence.
Lightweight and Ergonomic Design
Portability is a major advantage in field inspections. As a result, the USM Go+ features a lightweight and ergonomic design that allows comfortable use over extended periods. Moreover, its compact form factor supports easy transport.
Durable Construction for Field Use
Inspection environments can be demanding. Consequently, the USM Go+ is built with a rugged housing to withstand harsh conditions. Therefore, inspectors can rely on consistent performance in industrial and outdoor settings.
Applications of Waygate Technologies USM Go+ Ultrasonic Flaw Detector
The versatility of the USM Go+ allows it to be used across various industries. As a result, it supports inspections that require both precision and mobility.
Welding and Fabrication Inspection
Weld integrity is critical for structural safety. Therefore, the USM Go+ is commonly used to inspect welds for internal defects. Moreover, early detection supports quality assurance and compliance.
Manufacturing Quality Control
In manufacturing, consistent inspection helps maintain product quality. Consequently, the USM Go+ supports inspection of raw materials and finished components. As a result, defects can be identified before products enter service.
Maintenance and Field Inspection
Routine maintenance inspections often require portable equipment. Therefore, the USM Go+ enables inspectors to evaluate assets directly on site. Furthermore, timely inspections help prevent unexpected failures.
Benefits of Using Waygate Technologies USM Go+ Ultrasonic Flaw Detector
Organizations that implement the USM Go+ gain several operational advantages. In addition, these benefits support efficient inspection workflows.
Accurate and Reliable Inspection Results
Stable ultrasonic performance ensures consistent flaw detection. Therefore, inspectors can make informed decisions based on dependable data.
Improved Inspection Efficiency
Fast setup and simple operation reduce inspection time. As a result, inspection teams can complete more tasks within limited schedules.
Enhanced Mobility and Flexibility
The compact design improves mobility. Consequently, inspectors can easily carry the USM Go+ between inspection locations without compromising performance.
Features:
– A-Scan video recording up to 8 minutes allows live reporting and playback of an entire inspection sequence for review by more qualified personnel
– A truly ambidextrous instrument with the flip function of the display and functionality of the rocker switches
– AUTOANG (Auto Angle) feature calculates the refracted angle of an angle beam wedge and utilizes it for trigonometric flaw location projections
– A standard USB connection allows for data to be downloaded from the flaw detector for further analysis or storage
– The instrument’s 2 GB memory can be easily exchanged by SD cards up to 16 GB
– Reports are produced in jpeg or bmp format so there is no need for special reading
software
– Backwall Echo Attenuator (BEA) helps to find very small defects, improving detectability
– Automatic Gate Threshold for the 2 gates ensuring accurate measurements made under the same conditions
Aplications:
– Weld inspection
– Inspection of forging and castings
– Inspection of rails
– Inspection of composites
– More demanding applications such as narrow band filters, low noise digital amplifier, and square wave pulsers
Specification:
– Display: 5″, 800 x 480 pixels, 108 × 65 mm (W x H), >200 cd/m2
– Size (W x H x D): 175 x 111 x 50 mm
– Weight: 850 g with battery
– Protection Class: IP 67
– Operating Temperature: 0 – 55 °C
– Battery: Li-Ion, rechargeable, 6 hours operation time
– Power Adapter/Charger: 100 – 240 V AC, 50/60 Hz
– Probe Connector: 2 x Lemo-00 (T/R)
– PC Interface: Mini USB
– Memory Card: SD-Card 16 GB max
– Reporting: Test report and A-Scan screen shot on SD-Card, Video recording of A-Scan
– Pulser: 120 – 300 V, 30 – 500 ns, flank < 10 ns, Spike, Square wave option
– Pulse Repetition Frequency: 15 – 2000 Hz
– Damping: 50 and 1000 Ohm
– Reciever: 110 dB dynamic, 0.5 ~ 18.5 MHz analog bandwidth
– Filter: BB
1-5 MHz, 2,25 MHz, 4 MHz, 5 MHz, 10 MHz, 13 MHz, 15 MHz
– Gates: A and B independent, B triggered by A, C option
Package Includes:
– USM Go+ BASE Instrument Package: Truly ambidextrous flip function, Wide VGA color LCD display 800 x 480 pixels, Operation with one thumb, Weighs less than 2 lbs. with battery, Color Leg Indicator in “live” A-scan for angle beam (weld inspection) work, Selectable 15 to 2000 Hz Pulse Repetition Rate, Auto-80 for easy 80% amplitude reference. Video Recording, IP67 sealing,Quickly store images to SD card in .JPG or .BMP format for easy reporting
– Lithium Ion battery charger
– AC power supply
– Protective LCD Screen Overlays (pkg. 10), clear, field replaceable
– SD Card (8 GB)
– Transport Case
– Hand Strap
– Quick Reference Operating Card
– Operating Manual on CD
– Certificate Of Conformity
