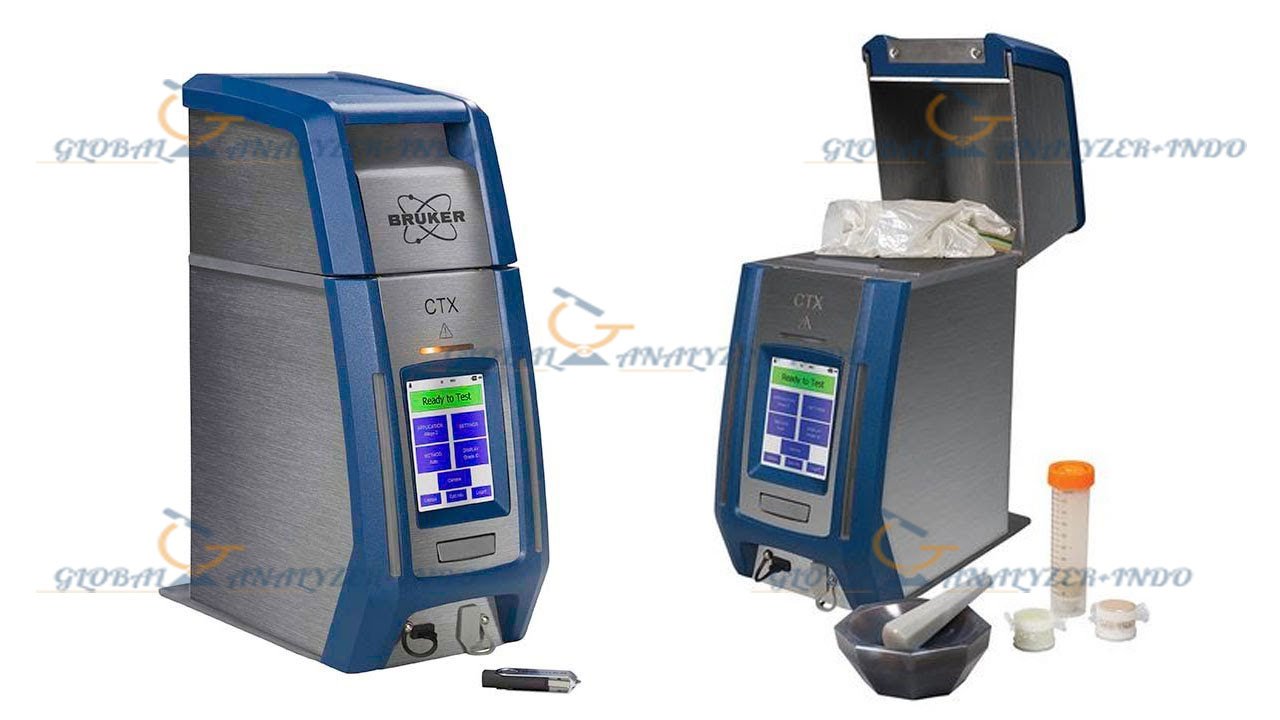

Bruker CTX 800 XRF Analyzer

Portable X-ray Fluorescence Spectrometer (CTX) for Elemental Analysis

The Portable Counter Top XRF (CTX) is a lightweight, battery-operated spectrometer designed for fast and accurate elemental analysis. Weighing only 7 kilograms, this compact, self-contained analyzer is highly portable, making it ideal for laboratory, field, or industrial environments. With a footprint of just 14 cm in width, the CTX delivers efficient performance without occupying significant workspace.

In addition, the CTX can analyze up to 48 elements per calibration, covering a wide elemental range from Magnesium (Mg) to Uranium (U), which makes it versatile for multiple industries and applications.

Key Features of the CTX Portable XRF

Advanced Detection and Analysis

• Latest graphene window SDD detector ensures excellent sensitivity for light elements.

• Patented DetectorShield™ provides long-term performance with minimal maintenance.

• SharpBeam™ collimator ensures precise X-ray targeting.

• High-speed pulse processing electronics allow rapid and accurate measurements.

• Consistent sample presentation with index markings enhances precision.

Benefits at a Glance

• Wide elemental range: Mg to U

• Detects concentrations from ppm to 100%

• Robust stainless steel construction, splash and dust-proof

• Dual safety interlocks for secure operation

• Small footprint: 14 x 25 cm for compact laboratory setups

Furthermore, its portability, precision, and rugged design allow the CTX to be used in harsh industrial environments without compromising safety or performance.

Applications of CTX Portable XRF

Near Real-Time Process Monitoring in Steel Production

The CTX is ideal for steelmaking environments due to its high accuracy and rugged construction. By analyzing the elemental composition of slag during the steelmaking process, the CTX provides near real-time insights into process efficiency and steel quality.

Moreover, placing the CTX near furnaces allows in-process optimization, enabling consistent production of higher-quality steel. In fact, its results are often comparable to conventional lab-based methods but without the delays associated with sample transport.

Geoscience and Mining

The CTX is a fully portable solution for field and laboratory work in geoscience, mining, and mineral exploration. For example, it can analyze soil, sediments, ores, drill cuttings, mudrock, concentrates, and industrial minerals.

In addition, it is suitable for use in mobile labs, trailers, ships, and platforms, providing flexibility for in-situ or near-field analysis.

Fuels and Oils Analysis

CTX enables safe and reliable elemental analysis of fuels, oils, and other petrochemicals. Its fully sealed sample plate prevents spills while allowing for precise testing.

Applications include:

• Sulfur detection in bunker fuel (MARPOL compliance)

• Monitoring oil blending processes

• Screening wear metals and additives in lubricants

Food Safety and Quality

CTX can perform rapid screening of nutrients and heavy metals in food and agricultural products. For instance, it can measure soil and fertilizer composition, detect fortificants, and screen for contaminants in food items.

Consequently, it ensures compliance with safety regulations while supporting food quality assurance programs.

Technical Specifications

Size and Weight

• Lightweight: 7.1 kg with battery

• Compact dimensions: 13.5 cm x 25 cm x 35 cm (WxDxH)

Excitation Source

Model 800: 50kV, 4W, Rh-target

Model 500: 40kV, 2W, Rh-target

Model 500S: 29kV, 2W, Rh-target

Detector

• SDD detector with graphene window and DetectorShield™

• Typical resolution: < 145 eV @ 450,000 cps

Sample Chamber

• Safety interlocked

• Internal dimensions: 12 cm x 13.5 cm x 8.5 cm

Elemental Range

• Model 800 / 500S: Mg – U

• Model 500: Cl – U

Package Contents

Bruker CTX 800 Countertop XRF Analyzer

Software and check samples

Charger and power cord

Two batteries

Radiation safety video

Five extra windows

Screwdriver

USB loaded with Bruker Toolbox, manuals, demonstration software, and utilities

Two collimators and one filter

Carry case and calibration certificate

Additionally, this comprehensive package ensures that users have everything needed for immediate operation and calibration.

Warranty

The CTX portable XRF comes with a 3-year manufacturer warranty, providing peace of mind and reliable performance for industrial and field applications. Therefore, maintenance and calibration concerns are minimized, and operational continuity is supported.
