Vanta M Series Handheld XRF Analyzer: Maximum Power, Rugged Design, and Superior Precision
The Vanta M Series represents the most powerful generation of Olympus handheld XRF analyzers. Designed for demanding industrial environments, each model integrates a large-area silicon drift detector (SDD), a 50 kV X-ray tube, and a choice of rhodium (Rh) or tungsten (W) anodes for enhanced analytical performance.
Regardless of the configuration, every Vanta analyzer delivers fast, accurate elemental results supported by Axon Technology™, Olympus’ advanced XRF signal processing engine. The M Series is also ruggedly built, drop-tested, and rated IP64 for dust and water protection.
Why Choose the Vanta M Series?
Rugged Performance for Harsh Environments
Vanta analyzers are engineered to withstand extreme, real-world conditions, making them ideal for mining, fabrication, recycling, environmental testing, and QC/QA operations.
Durable Construction
IP64 protection shields the device from dust and water splashes.
MIL-STD-810G drop testing ensures survivability in tough field operations.
The detector shutter on M Series models protects against punctures when testing rough or uneven surfaces.
Operates reliably within a –10 °C to 50 °C temperature range, enabling continuous use without cooling delays.
Revolutionary Axon Technology
The Vanta M Series incorporates proprietary Axon Technology™, designed with ultra-low-noise electronics to achieve higher X-ray count rates, faster throughput, and superior stability.
Benefits of Axon Technology
Extremely sensitive signal processing for rapid element detection
Improved repeatability between tests and between different units
Quad-core processing for enhanced speed and responsiveness
Consistent measurement accuracy throughout the instrument’s lifespan
Enhanced Productivity and Workflow Efficiency
Vanta analyzers streamline data collection, management, and reporting for professionals across industries.
Productivity Features
Application-specific software for optimized workflows
Easy data export via Wi-Fi, USB, Bluetooth®
Built-in GPS/GLONASS for geotagged results
Cloud-enabled system for fleet management and centralized data access
Optional 5 MP panoramic camera for merging sample images with XRF data
Ergonomic push-button joystick for glove-friendly operation
Key Features of the Vanta M Series
Customizable dashboard and function layout
Bright and clear capacitive touchscreen readable under any lighting
High-level analytical performance with SDD technology
Intuitive user interface for fast setup and navigation
Industrial-grade durability and reliability
Streamlined archiving and reporting for traceability
Optional panoramic camera and aiming camera
Applications of the Vanta M Series
Vanta analyzers deliver fast, accurate results in a wide range of industries.
Primary Application Areas
Mining & Geochemistry – rapid ore grade control and mineral identification
Scrap & Recycling – sorting alloys and verifying material composition
Positive Material Identification (PMI) – ensuring correct materials in fabrication and inspection
Environmental Assessments – soil testing and contaminant detection
Manufacturing QA/QC – verification of raw materials and finished products
Technical Specifications
Physical Specifications
Dimensions: 8.3 cm × 28.9 cm × 24.2 cm (3.25 in × 11.4 in × 9.5 in)
Weight: 1.70 kg with battery; 1.48 kg without battery
Display: 800 × 480 WVGA capacitive touchscreen with gesture support
X-Ray and Detection System
Excitation Source: 4 W X-ray tube with Rh, Ag, or W anode options
Voltage Range: 8–50 kV
Primary Beam Filtration: Auto-selected 8-position filter; optional 3 mm collimation
Detector: Large-area Silicon Drift Detector (SDD) for the M Series
Power and Connectivity
Battery: Removable 14.4 V Li-Ion with hot-swap capability
AC Power: 100–240 VAC, 50–60 Hz, 70 W max
USB Ports:
-(2) USB 2.0 Type-A
-(1) USB mini-B
Wireless: Wi-Fi 802.11 b/g/n (optional), Bluetooth® (optional)
Data Storage: microSD™ slot with included 1 GB industrial SD card
Operating Environment
Temperature: –10 °C to 50 °C
Humidity: 10%–90% non-condensing
Drop Test: MIL-STD-810G, 1.3 m (4 ft)
IP Rating: IP64 protection
Pressure Correction: Built-in barometer for altitude compensation
Camera Options
Aiming Camera: Full-VGA CMOS (optional)
Panoramic Camera: 5 MP CMOS with autofocus (optional)

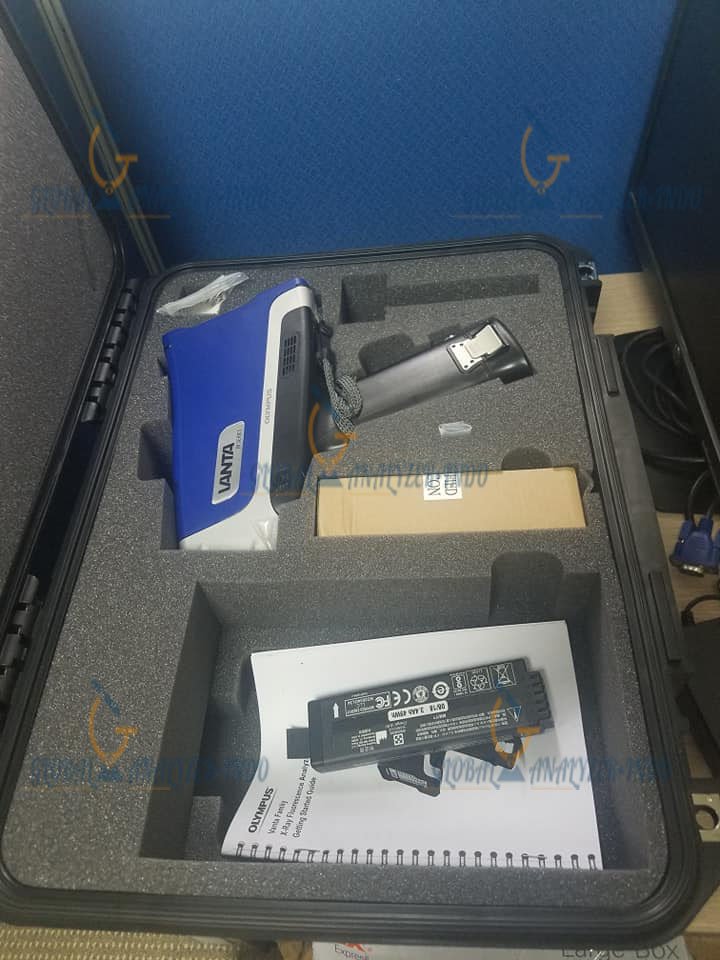

Package Contents

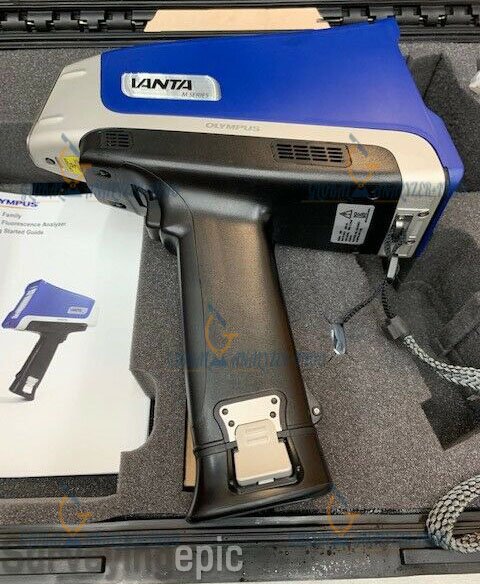

Vanta M Series handheld XRF Analyzer
Two Li-Ion batteries
Charger and AC power cable
Docking/calibration stand
USB drive
Hard carrying case
Ten protective windows
Specifications sheet and user manual
Warranty certificate and warranty card
Certificate of origin
Calibration certificate
Warranty Information
The Vanta M Series includes a 2-year manufacturer warranty, providing long-term reliability and support for industrial users.
