Vanta Element XRF Analyzer Series: Fast and Affordable Alloy Identification
The Vanta Element XRF analyzer series offers an efficient solution for quick alloy identification and sorting—without the high cost typically associated with advanced XRF technology. Designed to support scrap recycling, quality control, and general metal analysis, the series provides reliable performance in a rugged, handheld format.
Overview of the Vanta Element Series
The Vanta Element lineup includes two economical models engineered for basic alloy ID and fast, on-the-spot elemental analysis.

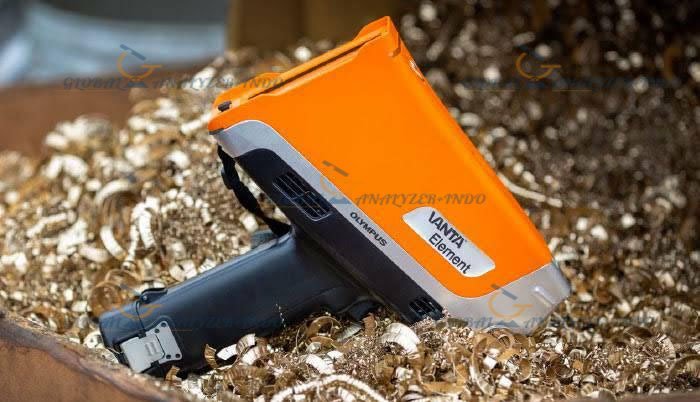

Vanta Element Analyzer: Affordable Alloy Identification
Use case: Cost-effective alloy identification
Ideal for: Quick, straightforward material verification
Detector type: Silicon PIN
Window material: Thick Kapton® window
Excitation source: 2-watt X-ray tube with a 35 kV tungsten anode
Key Features of the Vanta Element XRF Analyzers
Advanced Electronics for Accurate, Repeatable Results
The series integrates advanced electronics and stability technology to deliver consistent performance:
Vanta electronics platform ensures high measurement reliability
Axon Technology supports stable count rates for precise elemental readings
Streamlined Data Management and Connectivity
Engineered for efficient workflow, the analyzer offers several modern data management tools:
Optional wireless connectivity for exporting results to network folders
Cloud-based storage and remote data monitoring through Olympus Scientific Cloud
Direct USB data export for easy file transfer
Includes a 1 GB industrial microSD card for local storage
Built for Tough Industrial Environments
The Vanta Element analyzer is designed to keep operating costs low while maximizing durability and uptime.
Rugged Construction
IP54 rating protects against dust and water splashes
MIL-STD-810G drop-tested, helping prevent damage from accidental falls
Performance maintained from −10 °C to 45 °C (14 °F to 113 °F)
Stainless-steel faceplate enhances resistance to wear
Tool-less window replacement for quick maintenance
Technical Specifications
Physical Dimensions and Weight
Size (W × H × D): 8.3 × 28.9 × 24.2 cm (3.25 × 11.4 × 9.5 in.)
Weight: 1.54 kg (3.39 lb) with battery; 1.32 kg (2.91 lb) without battery
X-Ray Source and Optics
Excitation source: 2-watt X-ray tube, 35 kV tungsten anode
Primary beam filtration: Fixed aluminum filter
Detector: Silicon PIN
Power and Operating Controls
Power options:
Removable 14.4 V Li-Ion battery
18 V AC power transformer, 100–240 VAC, 50–60 Hz, 70 W max
Display: 800 × 480 WVGA LCD with capacitive touchscreen and gesture support
Operating system: Linux
Environmental Conditions
Temperature range: −10 °C to 45 °C at 100% duty cycle
Humidity: 10%–90% (noncondensing)
Drop test: MIL-STD-810G, 4-ft (1.3 m) drop
IP rating: IP54 protection
Connectivity and Ports
USB ports:
Two USB 2.0 Type-A ports (for accessories, Bluetooth®, WLAN, flash drives)
One USB 2.0 mini-B port (PC connection)
Wireless LAN: Supports 802.11 b/g/n (optional USB adapter)
Bluetooth: Supported via optional USB adapter
Data storage: microSD™ slot with included 1 GB industrial card
Included Accessories and Package Contents
Standard Package
Vanta Element analyzer
Two lithium-ion batteries
Battery charger and AC adapter
Docking/calibration stand
USB drive
Hard transport case
User manual
Warranty card
Calibration certificate
Optional Accessories
Field stand
Soil foot
Holster
Warranty Information
The Vanta Element series is backed by a one-year warranty, providing dependable coverage for essential components and performance assurance.
