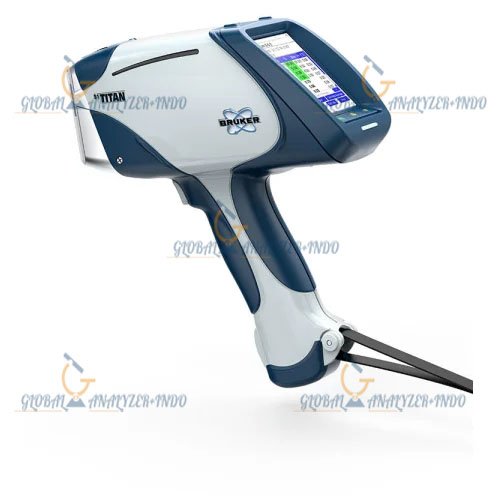

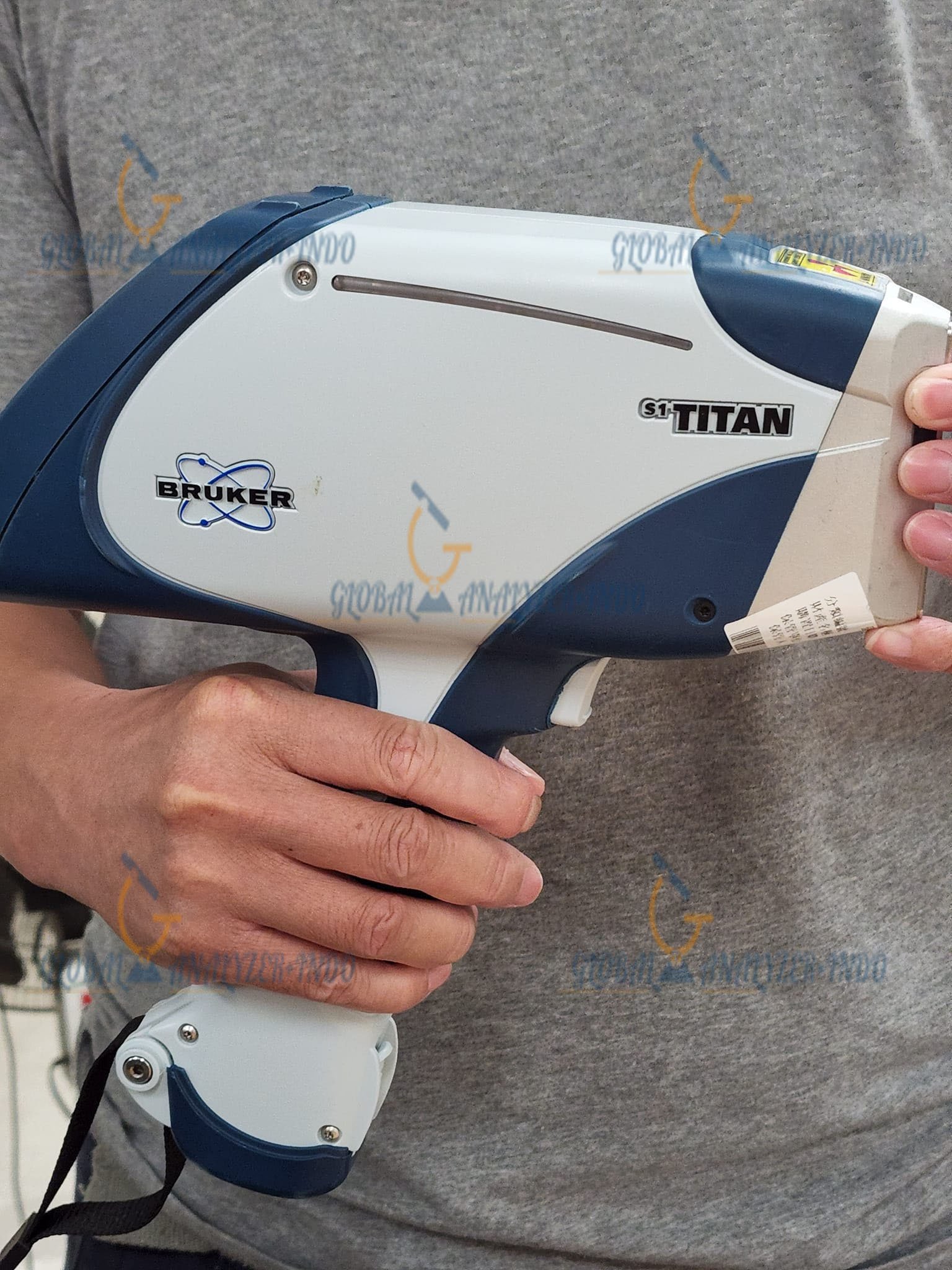

Bruker S1 Titan 800 Handheld XRF Analyzer

S1 TITAN Handheld XRF Analyzer: High-Speed, Accurate Elemental Analysis

The S1 TITAN handheld XRF analyzer is engineered for professionals who need fast, reliable, and precise material identification. With a lightweight 1.5 kg design and rugged construction, it delivers laboratory-level performance directly in the field.

Key Performance Highlights

Twice the Speed with Advanced Graphene SDD Technology

New-generation graphene window SDD detectors deliver significantly higher count rates, enabling the rapid measurement of light elements—up to two times faster than earlier detector designs.

Maximum Detector Protection with 50 Newton Shielding

A reinforced detector shield provides 50 N of force resistance, safeguarding the detector from accidental impacts or sharp samples during routine inspections.

Precision for Small Components with 3 mm Collimator

An optional 3 mm small-spot collimator allows accurate analysis of small parts, welds, and detailed features without compromising data quality.

Innovative Features of the S1 TITAN

The S1 TITAN incorporates multiple design improvements to support demanding industrial environments:

High-power 50 kV X-ray tube

State-of-the-art graphene window SDD

Integrated TITAN Detector Shield for unmatched protection

SMART Grade timing for rapid alloy identification

Wi-Fi and USB communication

Dust- and moisture-sealed housing for harsh environments

S1 TITAN Model Configurations

All S1 TITAN models use the same high-performance graphene SDD detector, ensuring consistent accuracy and speed across the product line.

S1 TITAN 500

Designed for users who primarily analyze heavier elements, starting from sulfur. Offers excellent value and fast results where light-element detection is not essential.

S1 TITAN 500S

A versatile, easy-to-use model capable of measuring light and heavy elements simultaneously—ideal for mixed material applications.

S1 TITAN 800

The premium configuration with the widest analytical range. Delivers superior performance for magnesium, aluminum, silicon, and other light elements without requiring vacuum or helium.

TITAN Detector Shield: Guaranteed Protection

Accidental detector puncture is one of the most expensive risks when using handheld XRF instruments. The TITAN Detector Shield minimizes this risk dramatically—especially when testing sharp materials such as metal turnings or fine wires. This feature helps users avoid costly repairs and unplanned downtime.

Wide Elemental Detection Range

The S1 TITAN series provides reliable elemental analysis from magnesium (Mg) to uranium (U).
Users benefit from:

Multiple calibration sets: alloys, precious metals, mining, soil, restricted materials, metal coatings, and custom applications

High count rates and excellent resolution

Faster performance than previous generations

Lower detection limits for trace analysis

Easy light-element measurement (Mg, Al, Si) without special atmospheres (500S and 800 models)

Applications Across Industries

Metal Alloys & PMI

Essential for refineries, recyclers, fabricators, and inspection agencies, the S1 TITAN enables rapid alloy verification and positive material identification with non-destructive testing.

Geoscience & Exploration

Real-time data allows geologists and mining operators to make informed decisions quickly. Field analyses can be correlated with laboratory results for improved resource evaluation.

Restricted Materials & Consumer Safety

Ideal for screening toys, electronics, appliances, and personal-care items for hazardous substances. Helps companies maintain compliance with RoHS and other safety standards.

Technical Specifications: S1 TITAN 800

Detector: Graphene window SDD, 20 mm² active area

Resolution: <145 eV @ 450,000 cps

Detector Shield: Standard on all units

Dimensions: 25 × 28 × 9 cm

Weight: 1.5 kg with battery

Integrated Camera: Optional

Element Range: Mg – U

Collimators: 8 mm standard; 5 mm and 3 mm optional

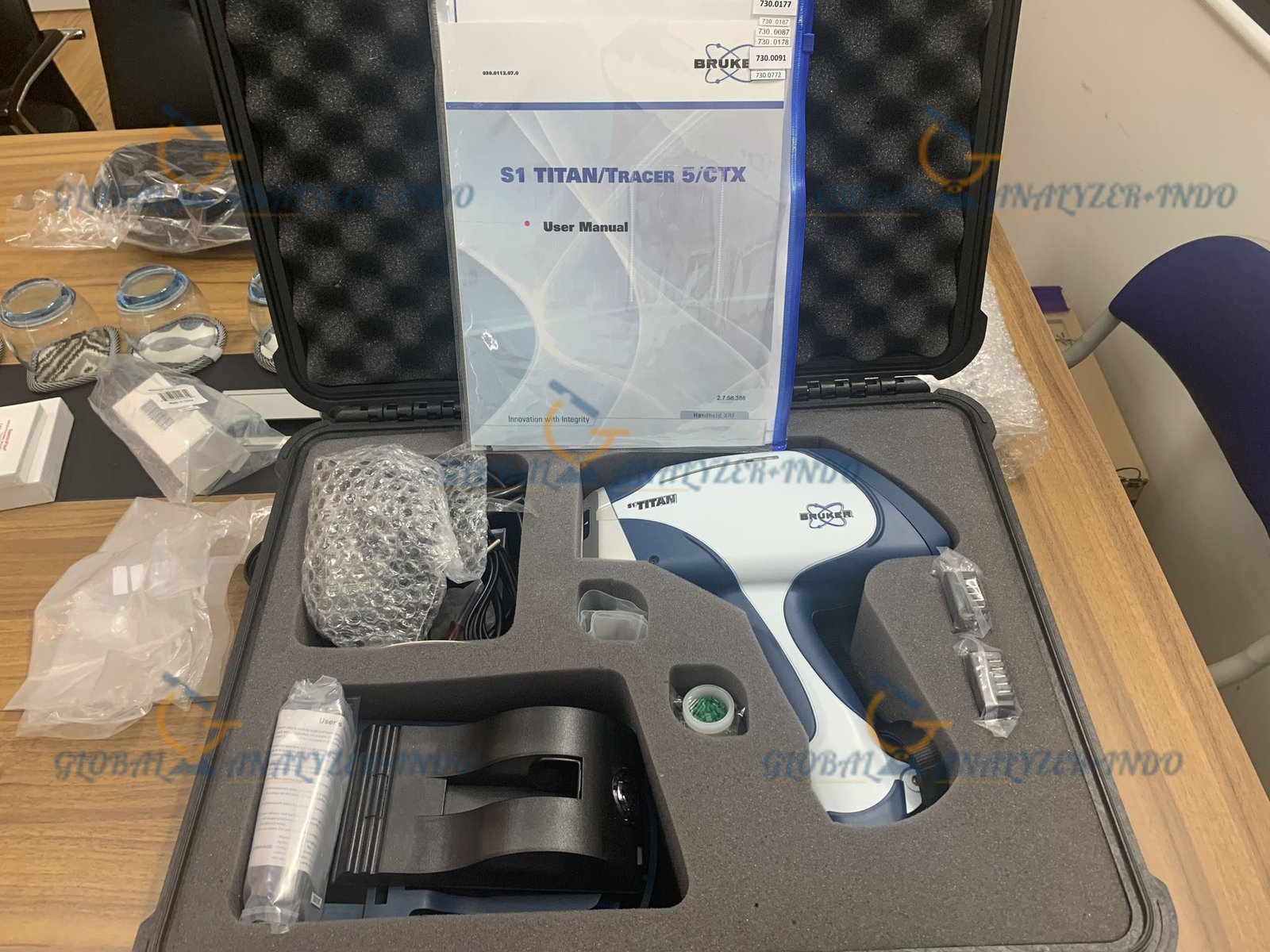

Included in the Package

S1 TITAN 800 handheld XRF analyzer

Five Ultralene protective windows

Two 7.2V Li-ion batteries

Battery charger & power cable

AC adapter

USB flash drive and remote cable

Check samples

Software suite

User manual

Calibration certificate

Portable desktop stand

Hard carrying case

Warranty

The S1 TITAN series includes a 3-year warranty, ensuring dependable performance and professional support.
