Easy Laser XT440 Laser Shaft Alignment Tool System

Easy-Laser XT440: Next-Generation Shaft Alignment System

The Easy-Laser XT440 marks the beginning of a new era in alignment technology. As the first model in the Generation XT series, it introduces a powerful cross-platform system that allows users to view alignment data across multiple smart devices, including tablets, smartphones, and the dedicated XT11 display unit. Designed for both horizontal and vertical/flange-mounted machines, the XT440 enables precise shaft alignment, soft-foot checks, and fully documented reporting with optional photo and thermal image attachments.

Key Advantages of the Easy-Laser XT440

Cross-Platform Flexibility

The system’s architecture accommodates a free app for smart devices, giving operators the freedom to choose their preferred display platform without sacrificing performance.

Entry-Level System with Advanced Capability

Although classified as an entry-level alignment tool, the XT440 delivers professional-grade accuracy, fast measurements, and intuitive workflows suitable for industrial environments.

XT11 Display Unit Overview

Rugged Construction for Demanding Conditions

The XT11 Display Unit is engineered for long-term durability. Its rubber-coated housing meets IP66 and IP67 standards, offering reliable protection against dust, water, and shocks. A built-in 13 MP camera supports image documentation, and users may opt to integrate a thermal imaging camera for expanded diagnostics.

Glove-Friendly Touch Interface

A large 8-inch touchscreen offers excellent visibility and functionality even when used with gloves. The interface remains responsive in harsh conditions, ensuring users can navigate apps effortlessly during field operations.

Convenient OLED Status Display

A small OLED screen shows battery status for the display and measuring units—useful even when the unit is powered off. A dedicated screen-lock button prevents unintentional touches.

Features of the XT11 Display Unit

• Durable, rubber-protected design (IP66/67)

• 8” glove-enabled touchscreen

• Lock-screen function for safety

• Clear OLED battery status display

• Optional IR camera for thermal diagnostics

• Up to 16 hours of continuous runtime

XT40-M / XT40-S Measuring Units

Fast and Accurate Alignment

The XT40 measuring units use advanced line laser technology for quick setup and readings. A large 30 mm PSD sensor and built-in OLED display provide precise feedback while helping technicians position the units correctly on shafts.

Built to Withstand Industrial Environments

Designed with rigid aluminum housings and grid-lock fasteners, the XT40 units maintain stability during alignment tasks. They deliver long operating times and feature integrated wireless communication for seamless connectivity.

Key Features of XT40-M / XT40-S

• Wireless communication with rechargeable battery

• TruePSD technology for high-resolution accuracy

• Dual lasers and dual PSD sensors

• Robust aluminum casing (IP66/67)

• OLED display showing unit angle

• 24+ hours operating time

Technical Specifications

XT11 Display Unit Specifications

General

• Display: 8” VGA color screen, LED backlit, multitouch

• Battery: Heavy-duty, fixed Li-Ion

• Connections: USB A, USB B, charger, AV

• Communication: Wireless tech + WiFi

• Environmental Rating: IP66/67

• Camera: 13 MP with flash (removable for security)

• Optional IR Camera: FLIR LEPTON® (0–450°C / 32–842°F)

• Operating Time: Up to 16 hours

Size and Weight

• Dimensions: 274 × 190 × 44 mm

• Weight: 1450 g

XT40 Measuring Unit Specifications

Performance

• Detector: 30 mm TruePSD

• Resolution: 0.001 mm

• Accuracy: ±5 µm ±1%

• Range: Up to 10 m

• Laser Type: Diode (630–680 nm), Class 2

Design and Durability

• Environmental Rating: IP66/67

• Housing: Anodized aluminum + PC/ABS + TPE

• Operating Temperature: -10 to 50°C

• Runtime: Over 24 hours

• Weight: 245 g

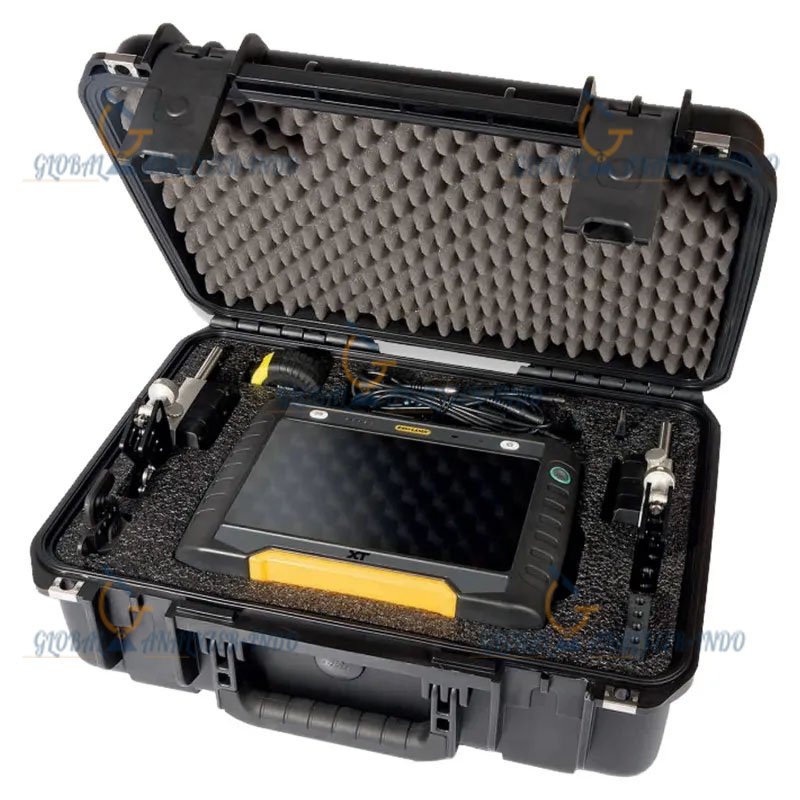

What’s Included in the Easy-Laser XT440 Package

• XT11 Display Unit

• XT40-M Measuring Unit

• XT40-S Measuring Unit

• Shaft brackets with chains and rods

• Four 60 mm rods

• 3 m measuring tape

• Hex key set

• AC charger (100–240 V)

• DC split charging cable

• DC–USB charging adapter

• Shoulder strap for XT11

• Quick reference guide

• Optics cleaning cloth

• USB with manuals

• Documentation folder

• Medium carrying case

• Calibration Certificate

• Warranty Card

Warranty Information

The Easy-Laser XT440 system comes with a 3-year warranty, ensuring long-term reliability and support for industrial users.
