SKF TKSA 51 Shaft Alignment Tool: Flexible, Accurate, and App-Driven Alignment Technology
The SKF TKSA 51 is a modern, app-based shaft alignment tool designed for technicians of all skill levels—from beginners to experienced professionals. Paired with a tablet or smartphone, this tool delivers a powerful balance of flexibility, portability, and precision. Its wide range of included accessories enables efficient alignment on motors, gearboxes, pumps, fans, drives, and many other rotating machines. With built-in training videos and intuitive controls, operators can achieve accurate measurements without specialised training.
Key Features of the SKF TKSA 51
1. Exceptional Measurement Flexibility
The TKSA 51 supports the well-known 9–12–3 measurement method, but adds greater freedom by allowing measurements to begin at any shaft angle. With only 40° minimum rotation required, it is ideal for confined spaces and applications with limited accessibility.
2. Automatic Alignment Reports
After each alignment, the system automatically generates a detailed report. Users can personalise these reports by adding notes, a machine photo, and a digital signature. Reports can then be exported as PDF files and shared directly through mobile apps.
3. Compact Yet Comprehensive
Despite its broad functionality, the tool remains lightweight and compact. Magnetic brackets, extension rods, and chains are included to accommodate diverse machine setups while still keeping the toolkit easy to transport.
4. Intuitive 3D Live View
The 3D live view feature provides real-time visual feedback during alignment. Technicians can rotate the virtual machine model to match the actual equipment, ensuring quick and accurate positioning of measurement heads.
5. Disturbance Compensation for High Accuracy
To maintain precision in environments with vibration or external interference, the TKSA 51 averages measurement values over time. This delivers reliable and stable readings even in challenging industrial settings.
6. Fully Functional Demo Mode
The free mobile app includes a demonstration mode, enabling users to explore the shaft alignment process and interface before purchasing the TKSA 51.
Technical Specifications
Sensor & Communication
20 mm (0.8 in.) PSD with Class 2 line laser
Inclinometer accuracy: ±0.1°
Bluetooth 4.0 LE connectivity
Measurement Performance
Measurement distance: 0.07 to 5 m (0.23 to 16.4 ft)
Supports horizontal and vertical shaft alignment
Minimum rotation: 40°
Soft foot detection included
Construction & Power
Housing: Anodized aluminum front; PC/ABS back cover
Operating time: Up to 8 hours
Fast charging: 10 minutes = 1 hour usage
Rechargeable Li-ion battery
Dimensions & Compatibility
Unit size: 52 × 64 × 50 mm (2.1 × 2.5 × 2 in.)
Weight: 190 g (0.4 lb)
Compatible devices:
iPad / iPhone / iPod Touch
Samsung Galaxy Tab Active 2
Galaxy S6 or newer
OS Requirements: iOS 9+ or Android 4.4.2+
Software & App Features
Available on Apple App Store & Google Play
Machine library with QR code scanning
Target values
Disturbance compensation
3D machine free view
Automatic PDF reports
Screen rotation support
Fixture & Capacity
V-brackets with 15 mm width
Shaft diameters: 20–150 mm (0.8–5.9 in.)
Up to 450 mm (17.7 in.) using included extension chains
Maximum coupling height: 45 mm + 120 mm per extension rod set
Environmental & Physical Data
Operating temperature: 0 to 45 °C (32 to 113 °F)
IP rating: IP54
Carrying case size: 355 × 250 × 110 mm (14 × 9.8 × 4.3 in.)
Total weight with case: 2.9 kg (6.4 lb)
Certification & Warranty
Delivered with a 2-year calibration certificate
Backed by a 2-year warranty

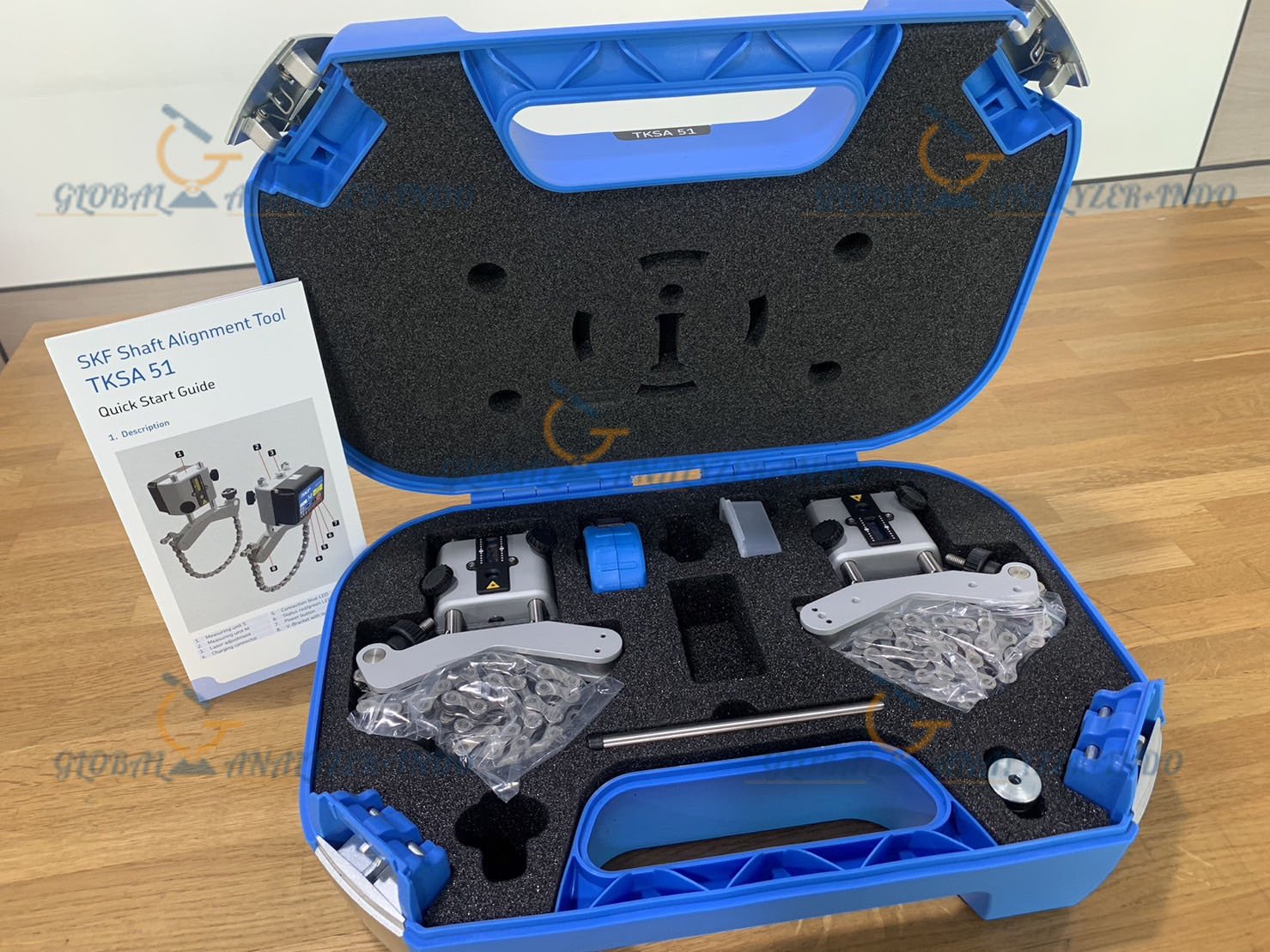

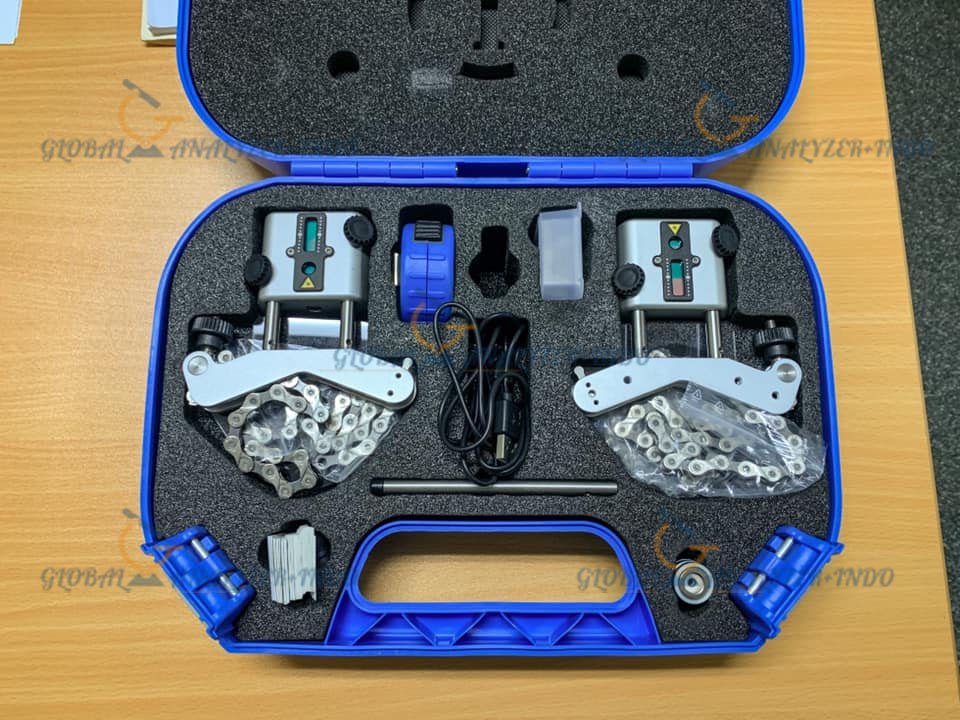

Package Includes
2 × TKSA 51 measuring units
2 × Shaft brackets with chains and magnets
4 × 120 mm extension rods
2 × 980 mm extension chains (for shafts up to 450 mm diam.)
Micro USB to USB split charging cable
2 m measuring tape (metric & imperial)
Calibration and conformance certificate
English Quick Start Guide

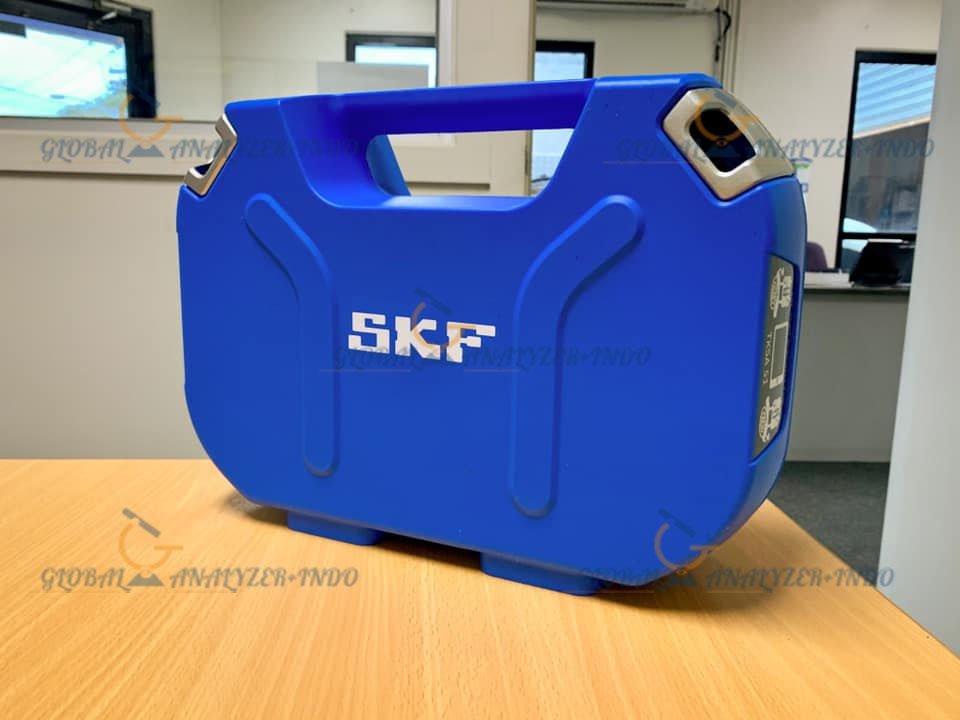

SKF carrying case
Bluetooth 4.0 LE or USB cables
2 × V-brackets
2 × 150 mm threaded rods per bracket
4 × 90 mm extension rods
Warranty card
Warranty Information
The SKF TKSA 51 comes with a 2-year warranty, ensuring long-term dependability and protection for industrial users.
