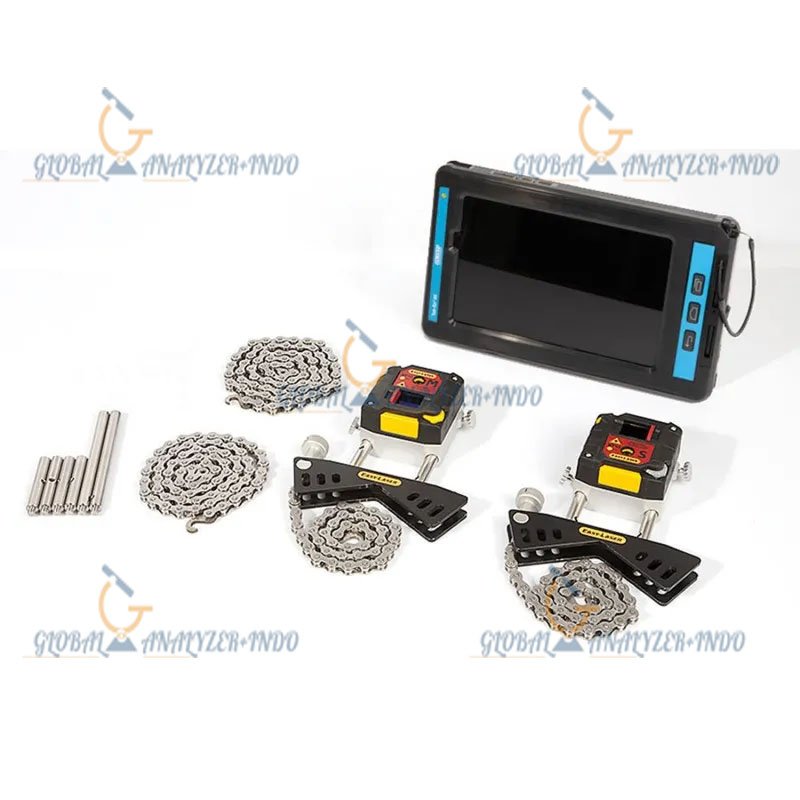

Easy-Laser XT550 – Ex/ATEX Shaft alignment Tool System

Easy-Laser XT550: Ex/ATEX Certified Shaft Alignment System for Hazardous Environments

The Easy-Laser XT550 is a state-of-the-art shaft alignment system engineered for hazardous industrial environments. With full Ex/ATEX certification, this system allows technicians to perform precise alignment tasks safely in areas where explosive gases, vapors, or dust are present. Combining rugged design, high-precision laser technology, and cross-platform functionality, the XT550 ensures maximum safety, efficiency, and accuracy for industrial machinery maintenance.

Why Choose the Easy-Laser XT550?

Ex/ATEX Certification for Maximum Safety

Designed specifically for classified hazardous zones, the XT550 meets strict Ex/ATEX standards, preventing sparks and ignition in flammable environments. It allows maintenance teams to work confidently without compromising safety.

High-Precision Laser Technology

Featuring dual-laser measurement units and high-resolution TruePSD detectors, the XT550 delivers reliable alignment results for horizontal and vertical machinery, reducing vibration and wear.

Rugged and Durable for Harsh Conditions

The XT550 is built to withstand industrial challenges, including:

• Dust and water exposure (IP66/67 rated)

• Shock and vibration

• Extended operation times for full work shifts

Key Features of the Easy-Laser XT550

1. Dual-Laser Measuring Units

The XT550 uses dual-laser technology for fast setup and highly accurate measurements. This ensures stable readings over long distances and reduces the need to reposition sensors.

2. TruePSD High-Resolution Detectors

TruePSD sensors provide unlimited resolution, guaranteeing precise alignment measurements and repeatable results even in large industrial setups.

3. Flexible Display Options

Technicians can choose to use:

• Dedicated Easy-Laser display units

• Smartphones or tablets via the free XT app

This cross-platform flexibility allows teams to work efficiently using the device that best fits their workflow.

4. Advanced Reporting and Documentation

The XT550 supports detailed documentation, including:

• Alignment results with numerical and graphical displays

• Optional photos and notes for machine records

• Exportable PDF reports for compliance and record-keeping

5. User-Friendly Interface

Step-by-step guides, intuitive navigation, and real-time feedback make the XT550 easy to operate, even for less experienced technicians.

Applications of the XT550

Industries That Benefit Most

The XT550 is ideal for industries where hazardous environments are common:

• Oil and gas

• Petrochemical and chemical plants

• Mining operations

• Pharmaceutical production

• Food and grain processing

Compatible Machinery

The XT550 can be used to align:

  Pumps

  Motors

  Gearboxes

  Compressors

   Fans and blowers

  Turbines

Benefits of Using the Easy-Laser XT550

Improved Machine Efficiency

Correct shaft alignment reduces vibration and mechanical stress, increasing machine performance and energy efficiency.

Enhanced Safety

Certified for Ex/ATEX zones, the XT550 prevents sparks and ensures safe operation in hazardous areas.

Lower Maintenance Costs

Precise alignment reduces wear on bearings, couplings, and seals, decreasing repair costs and downtime.

Reliable Documentation

Digital reporting and record-keeping improve traceability, ensuring compliance with safety and maintenance regulations.

Warranty Information
3 Years
