Easy Laser XT770 Laser Shaft Alignment Tool System

Easy-Laser XT770: The Most Advanced Shaft Alignment System in the XT Generation

The Easy-Laser XT770 stands as the most powerful solution within the Generation XT shaft alignment series. Built on innovative cross-platform technology, it allows technicians to work on the device of their choice—whether using the rugged XT12 display unit, or the user’s own iOS® or Android® smartphone or tablet. With the free XT application, all measurement functions are immediately accessible without additional licenses or restrictions.

This flexibility, combined with high-precision measuring units, makes the XT770 an ideal tool for professionals who demand accuracy, durability, and ease of use in all industrial environments.

Key Benefits of the Easy-Laser XT770

Work Your Way with Cross-Platform Freedom

The Generation XT concept enables complete freedom of choice. Operators can use:

• The XT12 industrial display unit, or

• Their own iOS® / Android® device

The XT app provides a full suite of measurement programs, ensuring you are never locked into a single workflow or hardware ecosystem.

Hassle-Free Operation

Simply connect the XT70 measuring units to any display device running the XT app. No licensing hurdles. No complicated activations. Just connect, measure, and document.

Main Features of the XT770 System

High-Precision Measuring Technology

• Built-in wireless communication

• Dual laser beams with dual PSD detectors

• TruePSD technology for maximum resolution and precision

• Slideable target for improved setup flexibility

• OLED display showing live angle readings

• Up to 24 hours of continuous operation

Industrial-Grade Durability

• Sturdy aluminum construction

• IP66/67 protection against dust, water, and harsh environments

• Designed to withstand the toughest field conditions

XT12 Display Unit Overview

Rugged and Ready for Field Use

The XT12 Display Unit features a robust exterior with IP66/67 classification and is engineered for outdoor environments. Its 8-inch capacitive touchscreen remains responsive even while wearing gloves, providing clear visibility in demanding settings.

Built-In Documentation Tools

A 13 MP autofocus camera is included, and users may upgrade to an optional FLIR LEPTON® thermal camera—perfect for combining alignment data with visual or thermal inspection results.

XT12 Technical Specifications

• Display: 8″ LCD capacitive touchscreen

• Battery: Heavy-duty Li-Ion

• Connections: USB A, USB C, AV, charger

• Operating Temperature: -10 to 50°C

• Ingress Protection: IP66/67

• Dimensions: 269 × 190 × 49.4 mm

• Weight: 1400 g

• Runtime: Up to 16 hours

XT70-M / XT70-S Measuring Units

High Accuracy for Professional Alignment Tasks

The XT70 series measuring units provide outstanding measurement performance using dual-axis TruePSD sensors.

Performance Specifications

• Detector: 20 × 20 mm TruePSD

• Resolution: 0.001 mm

• Accuracy: ±1 µm ±1%

• Range: Up to 20 m (66 ft)

• Laser Class: Class 2 diode laser

• Angle Resolution: 0.1°

• Runtime: Up to 24 hours

Durability and Design

• IP66/67 protection

• Anodized aluminum housing

• Robust construction for long-term reliability

• Compact and lightweight (272 g)

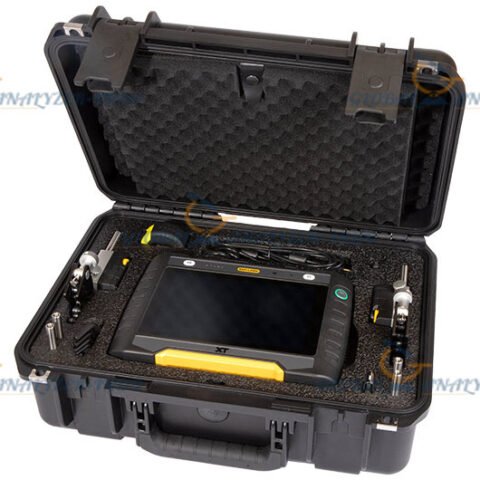

What’s Included in the Easy-Laser XT770 Package

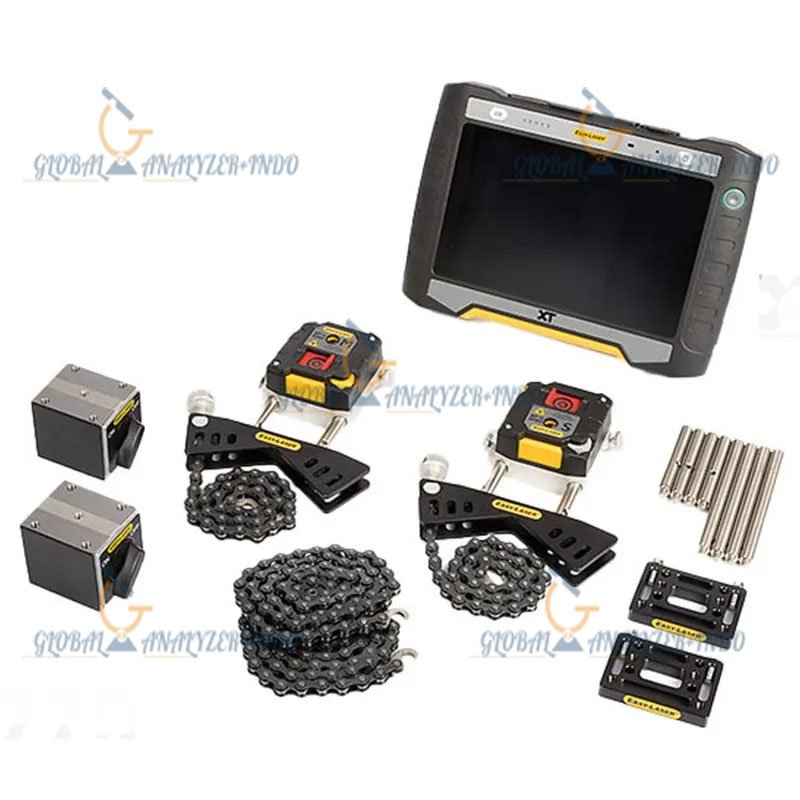

• XT12 Display Unit (1)

• XT70-M Measuring Unit (1)

• XT70-S Measuring Unit (1)

• Shaft brackets with chains and 120 mm rods (2)

• Magnetic shaft brackets (2)

• Rods: 60 mm (4) and 120 mm (4)

• Magnet bases (2)

• Offset brackets (2)

• Extension chains 900 mm (2)

• Measuring tape (3 m)

• Hexagon wrench set

• AC Charger (100–240 V)

• DC split charging cable

• DC-to-USB charging adapter

• Quick reference manual

• Optics cleaning cloth

• USB drive with manuals

• Documentation folder

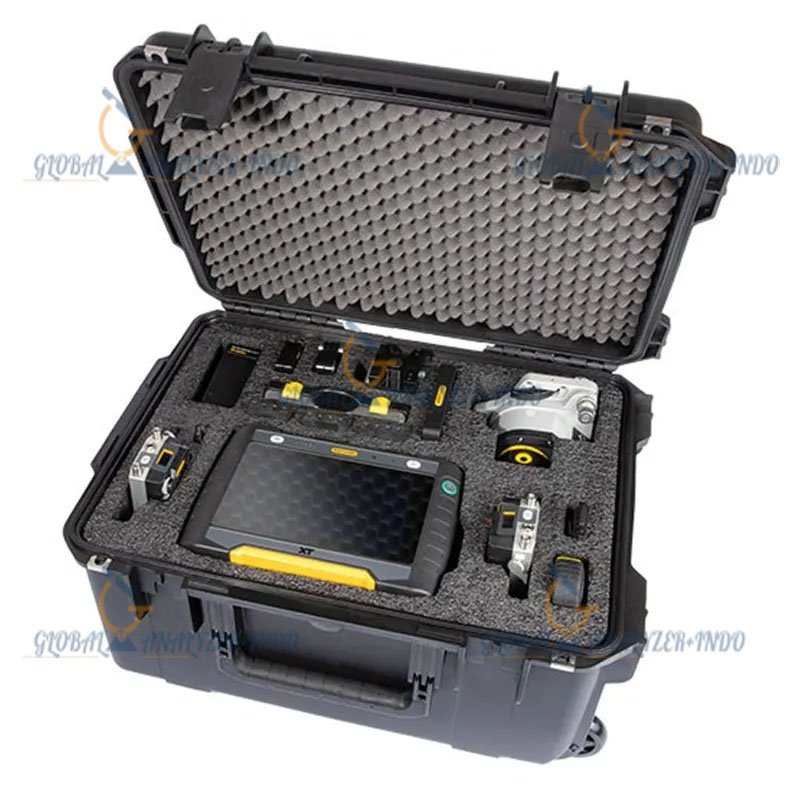

• Large carrying case

• Warranty card

Warranty Information

The Easy-Laser XT770 alignment system includes a 3-year warranty, ensuring long-term performance and reliability.
