GOM ATOS II Triple Scan & TRITOP 4 System: Complete 3D Measurement Solution
The GOM ATOS II Triple Scan combined with the TRITOP 4 System provides a powerful 3D measurement solution for industrial inspection, quality control, and engineering applications. Modern manufacturing and assembly processes demand both precision and efficiency. Therefore, using this system allows professionals to capture detailed surface data while establishing accurate reference coordinates, ensuring reliable results.
Overview of the GOM ATOS II and TRITOP 4 System
The ATOS II Triple Scan is a high-resolution optical 3D scanner, while the TRITOP 4 System provides precise photogrammetric measurement. Together, they create a complete solution for industrial and research applications. Moreover, the combination allows users to measure both small details and large assemblies with equal accuracy.
Professionals Who Benefit from This System
This combined solution is widely adopted by:
Automotive and aerospace engineers
Quality control and inspection specialists
Tooling and fixture validation teams
Research and industrial engineering departments
As a result, it supports a wide variety of workflows, from component verification to full-scale assembly inspection.

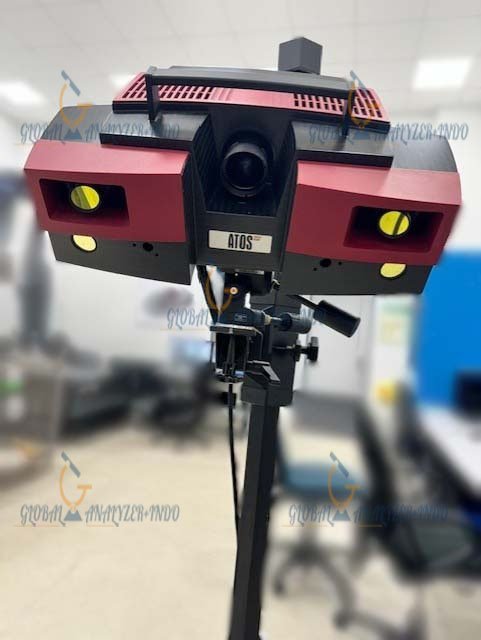

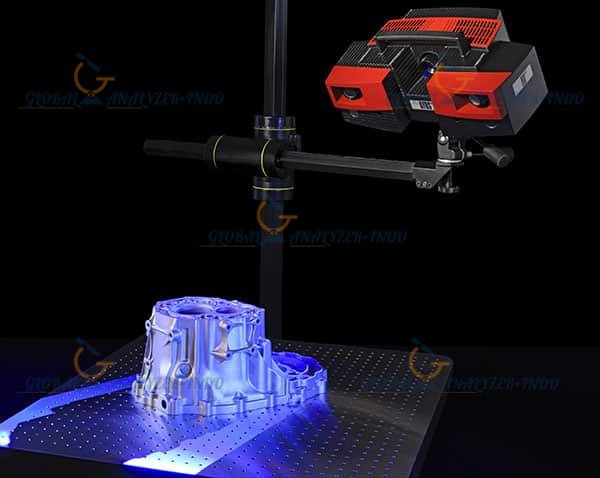

Key Features of GOM ATOS II Triple Scan
Triple Scan Technology for Complete Data Capture
The ATOS II Triple Scan uses three cameras to capture detailed surface geometry. Consequently, it reduces shadows and missing data, improving overall scan quality.
High-Resolution Surface Measurement
With dense point clouds and precise surface detail, users can perform accurate dimensional inspection. Moreover, the system supports deviation analysis and reverse engineering tasks efficiently.
Fast and Efficient Workflow
Automated scanning and advanced software processing reduce inspection time. Therefore, teams can complete complex measurements faster without compromising accuracy.
Key Features of TRITOP 4 System
Precise Photogrammetric Reference Measurement
TRITOP 4 captures highly accurate reference points. Consequently, it establishes a reliable coordinate system that supports large-scale scanning and assembly verification.
Ideal for Large Components and Assemblies
The TRITOP 4 System complements the ATOS II scanner for full-scale measurement tasks. As a result, engineers can measure large parts without repositioning the object.
Portable and Flexible Design
Lightweight and easy to set up, TRITOP 4 enables on-site measurement directly in production or assembly areas. Therefore, users benefit from greater flexibility and faster data acquisition.
Technical Capabilities
Integrated Measurement Workflow
The ATOS II and TRITOP 4 systems work seamlessly together. In addition, combining surface scan data with photogrammetric reference points ensures full spatial accuracy.
Advanced Inspection Software
GOM’s software processes data efficiently, offering visualization, analysis, and reporting capabilities. Consequently, decision-making becomes more accurate and faster.
Reliable Performance in Industrial Environments
Both systems maintain accuracy despite vibration, temperature fluctuations, or challenging lighting conditions. Therefore, professionals can trust the system for consistent results.
Benefits of Using GOM ATOS II & TRITOP 4
Higher Accuracy and Repeatability
The combination guarantees reliable measurement results. Moreover, engineers can use these results for quality assurance, reverse engineering, and process optimization.
Increased Inspection Efficiency
Fast scanning and simplified workflows allow teams to perform inspections quickly. As a result, downtime reduces, and productivity improves.
Reduced Rework and Enhanced Quality
Accurate data helps detect deviations early in the production process. Consequently, manufacturers can minimize rework and maintain higher product quality.
Common Applications
Dimensional Inspection
The system verifies component geometry against CAD models. Therefore, it ensures strict compliance with tolerances and design specifications.
Tooling, Fixture, and Mold Verification
Engineers use it to check fixtures and molds. In addition, this helps prevent assembly errors and maintains process consistency.
Assembly Analysis and Reverse Engineering
The combined system supports full-scale assembly alignment and reverse engineering. As a result, it enables accurate reconstruction and evaluation of complex objects.
Why Choose GOM ATOS II Triple Scan & TRITOP 4 System?
This solution offers a unique combination of high-resolution scanning and precise photogrammetric measurement. Therefore, it is ideal for professionals who demand both surface detail and large-scale accuracy.
Trusted GOM Technology
GOM is recognized worldwide for optical measurement solutions. Moreover, its proven technology ensures reliable performance in demanding industrial conditions.
Designed for Complex Measurement Tasks
The ATOS II and TRITOP 4 handle complex geometries and large assemblies with ease. Consequently, users can trust the system for any industrial or research application.
