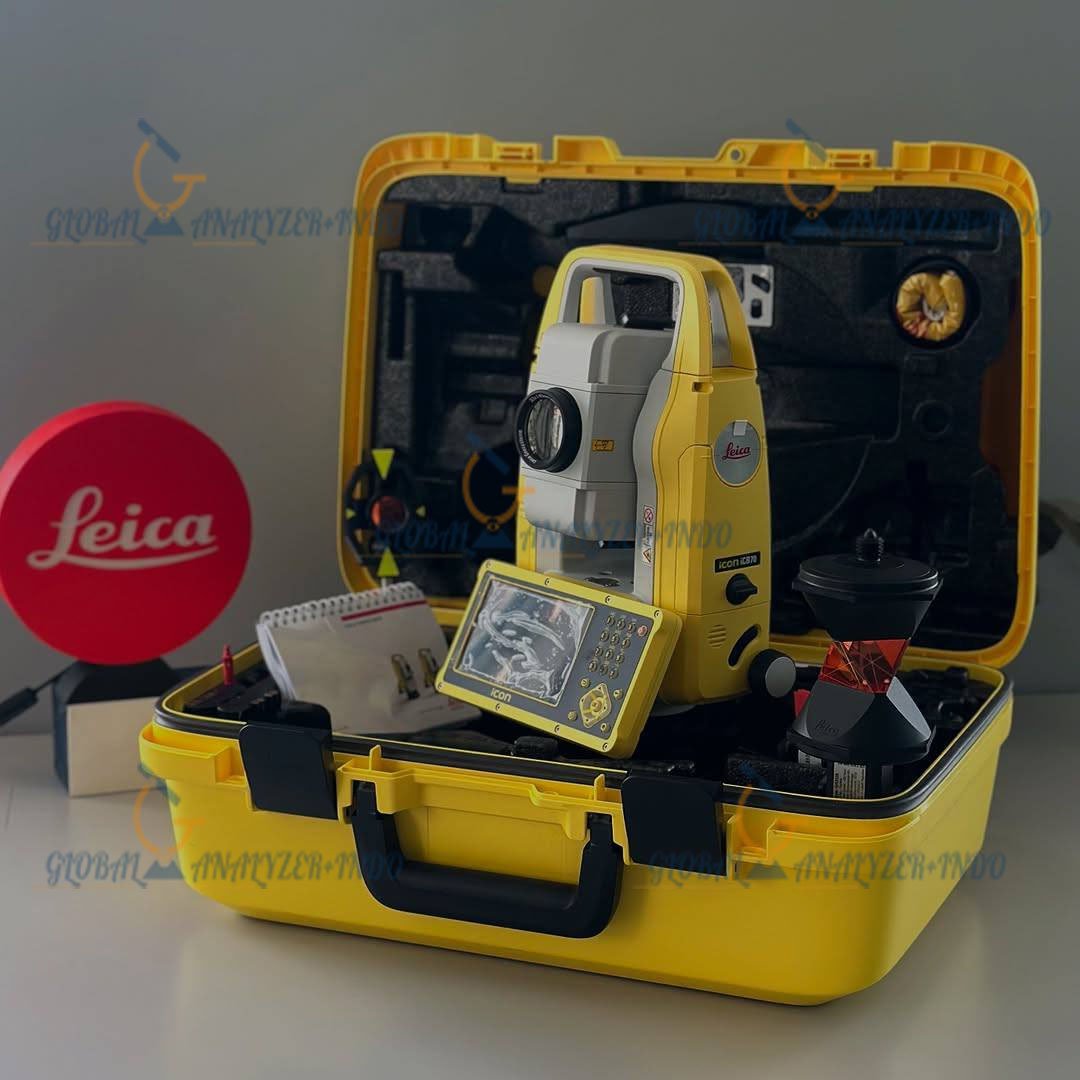

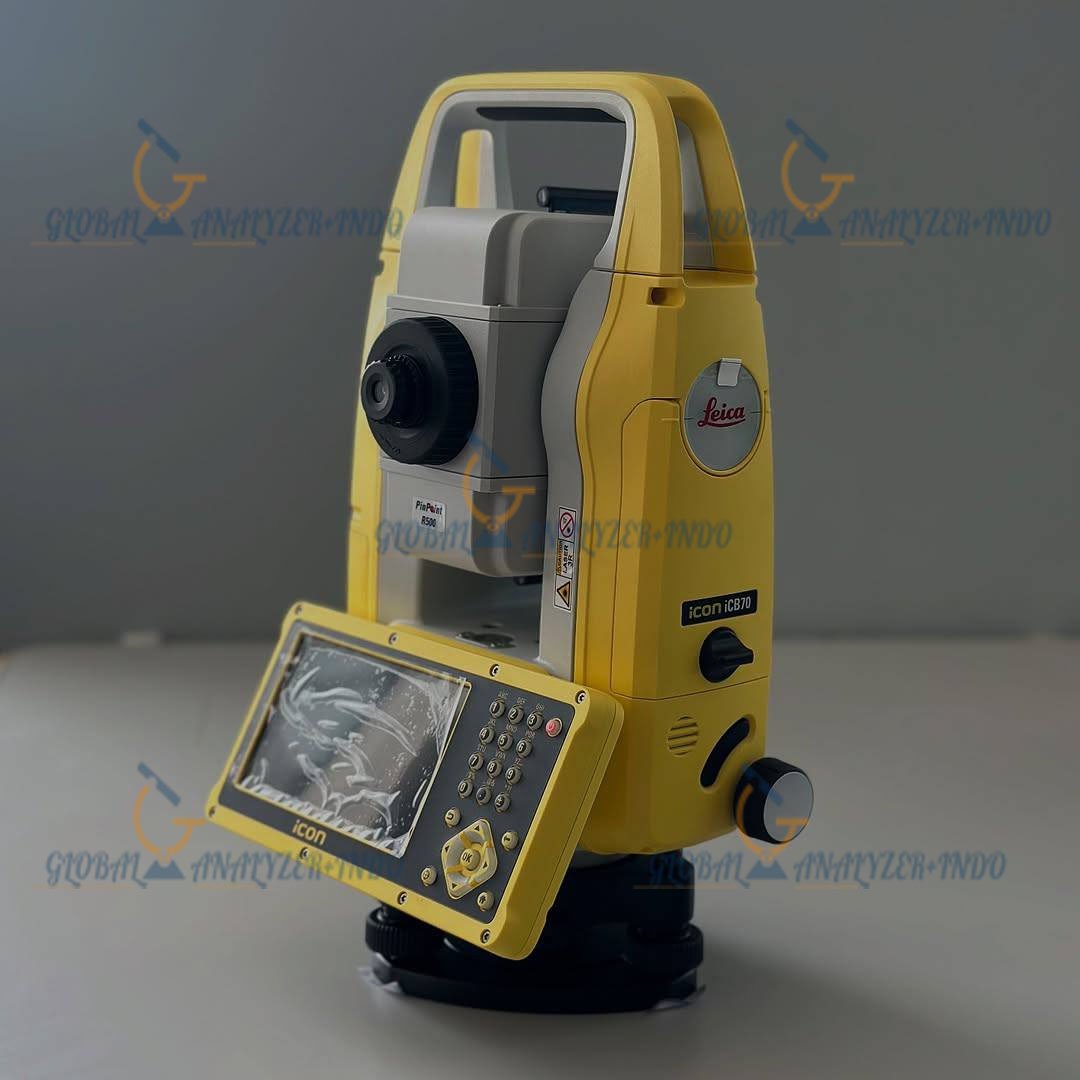

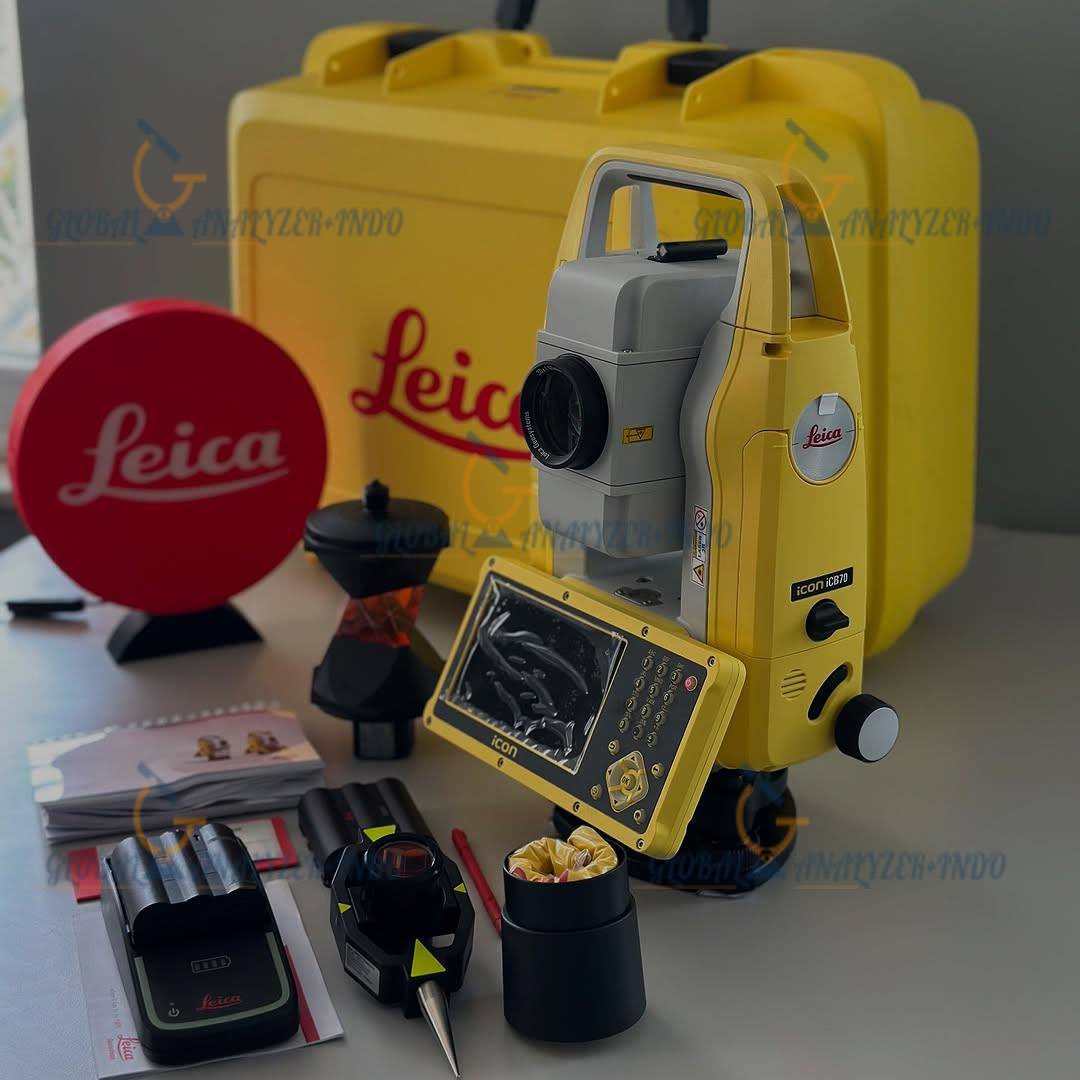

Leica iCON iCB70 Manual Total Station
Introduction to the Leica iCON iCB70
The Leica iCON iCB70 Manual Total Station is a professional-grade construction total station designed for fast, accurate, and efficient digital layout workflows. Developed by Leica Geosystems, the iCB70 combines precision measurement technology, reflectorless capabilities, integrated connectivity, and construction-focused software into a highly productive field instrument.
Built specifically for construction professionals, contractors, surveyors, BIM specialists, and infrastructure teams, the Leica iCON iCB70 simplifies layout, as-built measurements, verticality checks, and digital construction processes. The system is optimized for transitioning from traditional manual layout methods to fully digital construction workflows.
Why Choose the Leica iCON iCB70
Construction-Focused Workflow
Unlike conventional surveying total stations, the iCB70 is engineered specifically for construction applications. It supports rapid stakeout, structural layout, and digital building workflows.
Integrated Digital Construction Technology
The system supports modern BIM and IFC model workflows directly in the field using Leica iCON build software.
Fast and Accurate Measurements
The iCB70 delivers high-precision prism and reflectorless measurements suitable for demanding construction tolerances.
Mobile Connectivity
Integrated 4G communication enables direct synchronization between the office and field teams, ensuring project data remains updated in real time.
Key Features of Leica iCON iCB70
Digital Layout Technology
The iCB70 replaces traditional layout methods such as tapes, strings, and chalk lines with digital positioning workflows.
Benefits
- Faster point layout
- Reduced human error
- Improved construction accuracy
- Better productivity
- Reduced project rework
Prism and Reflectorless Measurements
The instrument supports both prism and reflectorless measurement modes, enabling flexible field operation.
Applications
- Structural layout
- Façade measurements
- Steel structure positioning
- Interior fit-out
- As-built documentation
FineFocus Telescope
The FineFocus telescope system helps operators accurately target prisms and measurement points even in difficult environments.
Integrated Connectivity
The Leica iCON iCB70 includes advanced communication features:
- Bluetooth
- WLAN
- Optional LTE / 4G modem
- Mobile data transfer
These capabilities improve collaboration between office and field crews.
Leica iCON Build Software
The onboard Leica iCON build platform simplifies construction tasks with an intuitive interface designed specifically for building construction projects.
Supported Functions
- Point stakeout
- Line layout
- As-built recording
- Volume calculations
- IFC model visualization
- BIM integration
Applications of Leica iCON iCB70
Building Construction
Used for:
- Foundation layout
- Column positioning
- Wall alignment
- MEP installation
- Structural verification
Civil Engineering
Supports:
- Road layout
- Utility installation
- Infrastructure alignment
- Elevation checks
- Construction verification
Industrial Construction
Ideal for:
- Plant construction
- Steel erection
- Equipment installation
- Structural alignment
- Facility documentation
BIM and Digital Construction
The iCB70 integrates directly with BIM workflows and IFC models for modern digital construction projects.
Leica iCON iCB70 Technical Specifications
General Specifications
| Specification | Details |
|---|---|
| Product Name | Leica iCON iCB70 |
| Instrument Type | Manual Construction Total Station |
| Manufacturer | Leica Geosystems |
| Primary Application | Construction Layout |
| Survey Type | Manual Total Station |
| Onboard Software | Leica iCON build |
| Display Type | 5-inch Color Touchscreen |
| Keyboard | Full Numeric Keyboard |
| Telescope | FineFocus Telescope |
| Construction Workflow Support | Yes |
| BIM Support | Yes |
| IFC Model Support | Yes |
| Mobile Data Transfer | Supported |
| Operating Interface | Touchscreen + Keypad |
Angular Measurement Specifications
| Specification | Details |
|---|---|
| Angular Accuracy Options | 1″, 2″, 5″ |
| Angle Measurement Method | Absolute Continuous Diametrical |
| Display Resolution | 1″ |
| Compensator Type | Quadruple Axis Compensation |
| Compensator Accuracy | 0.5″ / 1.5″ |
| Compensator Range | ±4′ |
| Electronic Level Resolution | 2″ |
| Circular Level Sensitivity | 6’ / 2 mm |
Distance Measurement Specifications
Prism Measurement
| Specification | Details |
|---|---|
| Prism Measurement Range | 1.5 m to 3,500 m |
| Prism Accuracy | ±(1 mm + 1.5 ppm) |
| Measurement Mode | Single / Continuous |
| Continuous Accuracy | ±(3 mm + 1.5 ppm) |
| Typical Measurement Time | 2.4 s |
| Prism Compatibility | Standard Leica Prisms |
Reflectorless Measurement
| Specification | Details |
|---|---|
| Reflectorless Technology | R500 |
| Reflectorless Range | Up to 500 m |
| Reflective Tape Range | >250 m |
| Reflective Tape Accuracy | ±(3 mm + 2 ppm) |
| Laser Measurement | Supported |
| Non-Prism Surface Measurement | Yes |
Optical and Telescope Specifications
| Specification | Details |
|---|---|
| Telescope Type | FineFocus |
| Targeting Capability | High Precision |
| Magnification | High-Resolution Optical System |
| Focus Type | Manual FineFocus |
| Reticle Illumination | Supported |
| Viewing Quality | Optimized for Construction Layout |
Display and User Interface Specifications
| Specification | Details |
|---|---|
| Screen Size | 5-inch |
| Display Type | Color Touchscreen |
| User Interface | Construction Optimized |
| Keypad | Full Numeric |
| Operating System | Leica iCON Environment |
| Workflow Navigation | Graphical Interface |
Connectivity Specifications
| Specification | Details |
|---|---|
| Bluetooth | Integrated |
| WLAN / Wi-Fi | Supported |
| USB Connectivity | Supported |
| Mobile Data | GSM / GPRS / UMTS / LTE Optional |
| Office Synchronization | Real-Time |
| Data Transfer | Wireless and Wired |
Environmental Specifications
| Specification | Details |
|---|---|
| Protection Rating | IP66 |
| Dust Protection | Yes |
| Water Resistance | Yes |
| Construction Site Ready | Optimized |
| Outdoor Operation | Supported |
Construction Workflow Features
| Feature | Description |
|---|---|
| Digital Layout | Replace tapes and strings |
| BIM Integration | IFC model compatibility |
| As-Built Measurement | High-accuracy verification |
| Verticality Checks | Structural alignment verification |
| Volume Calculations | On-site calculations |
| Point Layout | Fast digital stakeout |
| Real-Time Updates | Office-to-field synchronization |
Advantages of Leica iCON iCB70
Increased Productivity
The iCB70 enables crews to layout more points per day compared to traditional manual methods.
Reduced Errors
Digital workflows minimize mistakes associated with manual tape measurements and chalk-line methods.
Simplified Operation
The interface is designed for construction personnel with minimal surveying experience.
BIM-Ready Workflow
Supports fully rendered IFC models directly in the field environment.
Strong Construction Durability
Its IP66-rated design ensures reliable operation under harsh site conditions.
Industries Using Leica iCON iCB70
Construction Industry
Commonly used for:
- Commercial buildings
- Residential developments
- Structural steel layout
- Concrete formwork
- Interior construction
Infrastructure Projects
Supports:
- Highway construction
- Rail projects
- Utility installation
- Bridge construction
- Tunnel alignment
Industrial Facilities
Ideal for:
- Factory construction
- Industrial retrofits
- Equipment alignment
- Plant expansion
- Structural verification
Leica iCON Software Ecosystem
Compatible Software
| Software | Function |
|---|---|
| Leica iCON build | Layout and Stakeout |
| Leica Infinity | Data Processing |
| BIM Platforms | Model Integration |
| CAD Systems | Design Coordination |
