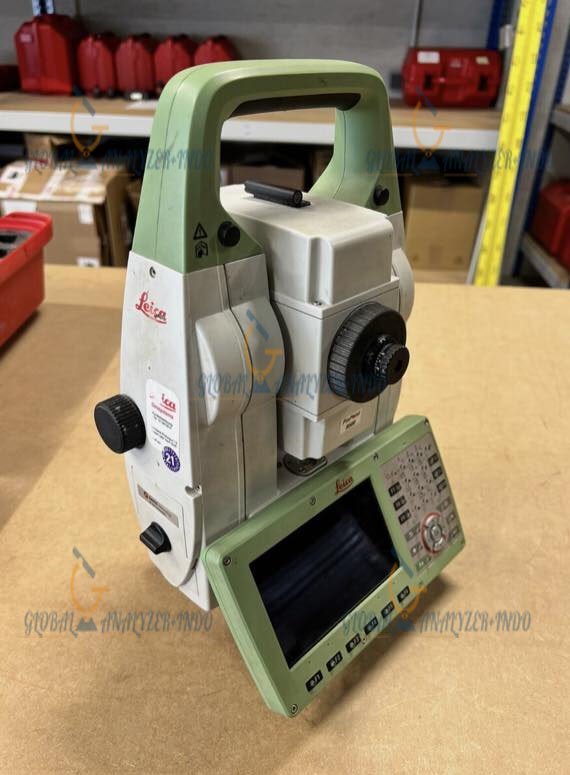

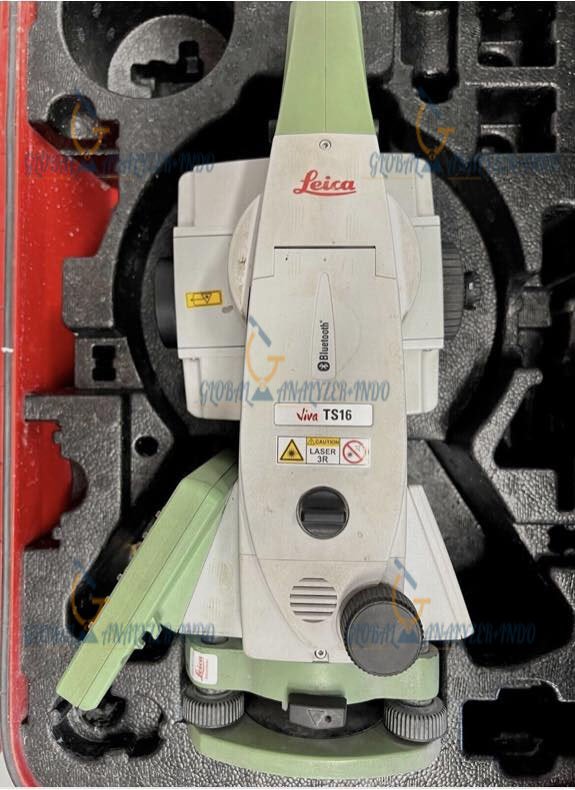

Leica TS16 A 3″ R500 Survey Robotic Total Station

The Leica TS16 A 3″ R500 is a high-performance robotic total station designed for surveyors who need precise measurements, efficient workflows, and reliable field performance. Built with Leica’s industry-leading technology, this instrument delivers accuracy, flexibility, and advanced automation for a wide range of surveying applications.

What Is the Leica TS16 A 3″ R500?

The Leica TS16 A 3″ R500 is a robotic total station combining advanced angle measurement capabilities with reflectorless distance measurement (R500) to allow surveyors to capture data quickly and accurately. It is part of Leica’s TS16 series, which is known for smart automation, robust design, and superior connectivity.

Key Features of the Leica TS16 A 3″ R500

1. High-Accuracy 3″ Angular Measurement

The 3-second angular accuracy ensures reliable results for tasks requiring tight precision, such as construction staking, engineering surveys, and topographic mapping.

2. Reflectorless EDM up to 500 Meters

The R500 option provides reflectorless distance measurement up to 500 m, enabling safe and efficient surveying of hard-to-reach or hazardous locations.

3. Robotic One-Person Operation

With its automated tracking and targeting capabilities, the TS16 allows a single operator to perform tasks typically requiring two people. This increases productivity and reduces labor costs.

4. Leica Captivate Software Integration

The instrument supports Leica Captivate, an intuitive software platform designed to simplify data capture, visualization, and management directly on the controller or onboard display.

5. Intelligent Lock and ATR Technology

Lock-on capabilities and Leica’s Automatic Target Recognition (ATR) help maintain precise tracking even in challenging environments or when working around obstructions.

6. Rugged and Weather-Resistant Design

Built to withstand jobsite conditions, the TS16 is resistant to dust, moisture, and extreme temperatures, ensuring dependable operation in the field.

Benefits of Using the Leica TS16 A 3″ R500

Improved Productivity

The robotic functionality and long-range reflectorless capabilities significantly reduce time spent on site while maintaining measurement integrity.

Higher Accuracy and Consistency

Surveyors benefit from stable, repeatable results thanks to high-precision optics and advanced tracking technology.

Versatile Applications

The TS16 A 3″ R500 is suitable for construction layout, land surveying, mining operations, deformation monitoring, and engineering design tasks.

Seamless Data Transfer

Multiple connectivity options allow efficient sharing of project data between field and office teams, improving workflow and collaboration.

Typical Applications

Construction and Layout

Use the TS16 for precise stakeout of building corners, utilities, foundations, and alignment tasks.

Topographic and Boundary Surveys

Capture detailed terrain and boundary data quickly with reflectorless and prism-based measurement capabilities.

Infrastructure and Engineering Projects

Ideal for roadwork, bridge construction, tunnel alignment, and other high-accuracy engineering applications.

Monitoring and Deformation Analysis

Track structural movement over time with automated observations and high-precision measurement tools.

Technical Specifications (Overview)

Angular Accuracy

• 3″ (three seconds)

Distance Measurement

• Reflectorless: Up to 500 m

• With prism: Extended range depending on prism type

Tracking and Targeting

• Automatic Target Recognition (ATR)

• Smart tracking and lock functionality

Software Compatibility

• Leica Captivate

• Leica Infinity (office software)

Hardware Design

• Rugged IP-rated housing

• Long-lasting battery life

• High-visibility display options

Why Choose the Leica TS16 A 3″ R500?

If your project demands precision, reliability, and efficient one-person surveying, the Leica TS16 A 3″ R500 stands out as one of the most capable robotic total stations on the market. Its blend of advanced technology, durable construction, and intuitive interfaces makes it a long-term investment for any survey professional.

Warranty Information
3 Years
