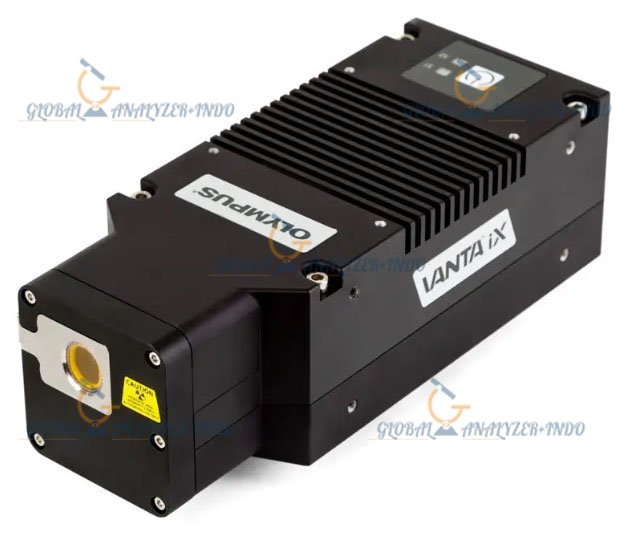

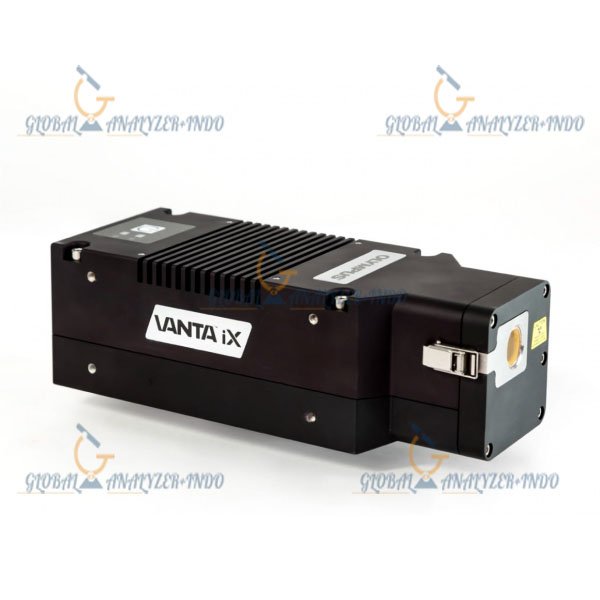

Olympus Vanta iX In-Line XRF Analyzer

Introduction to Olympus Vanta iX

The Olympus Vanta iX In-Line XRF Analyzer is an advanced solution designed for continuous elemental analysis in industrial production environments. This system supports real-time material verification and process control by delivering fast and reliable X-ray fluorescence measurements directly on the production line.

Overview of In-Line XRF Technology

Principles of XRF Analysis

X-ray fluorescence analysis identifies the elemental composition of materials by measuring the characteristic energy emitted when a sample is exposed to X-rays. This method enables accurate detection of metals and alloys without altering the tested material.

Advantages of In-Line Elemental Analysis

In-line XRF analysis allows manufacturers to monitor material composition during production. This capability improves quality control, reduces material waste, and ensures compliance with industry specifications.

Key Capabilities of Olympus Vanta iX

Continuous Real-Time Measurement

The Vanta iX provides continuous elemental analysis during manufacturing processes. Real-time data helps operators make immediate adjustments to maintain consistent material quality.

Industrial-Grade Design

The system features a robust design suitable for harsh industrial environments. It supports stable performance under high temperatures, vibration, and demanding operating conditions.

Seamless System Integration

The Olympus Vanta iX integrates easily with existing production lines and automation systems. This flexibility supports efficient data communication and streamlined process control.

Industrial Applications of Olympus Vanta iX

Metal Production and Processing

Metal producers use the Vanta iX to monitor alloy composition during casting and processing. Accurate in-line analysis helps maintain consistent product specifications.

Manufacturing Quality Control

Manufacturers rely on the Vanta iX to verify raw materials and finished products. The system supports fast decision-making and reduces the risk of non-conforming materials entering the supply chain.

Recycling and Material Sorting

In recycling operations, the Vanta iX assists in identifying and separating metal grades. This improves material recovery efficiency and overall operational performance.

Benefits of Using Olympus Vanta iX In-Line XRF Analyzer

Improved Process Efficiency

Real-time elemental feedback reduces delays associated with off-line testing. Production teams can optimize processes without interrupting material flow.

Enhanced Product Consistency

Continuous monitoring ensures stable material composition throughout production. This consistency supports customer requirements and regulatory standards.

Reduced Operational Costs

By minimizing rework and scrap, the Vanta iX helps lower production costs. Efficient in-line analysis also reduces the need for manual sampling and laboratory testing.

Why Choose Olympus Vanta iX

Professionals choose the Olympus Vanta iX In-Line XRF Analyzer for its accuracy, durability, and integration capability. The system supports modern manufacturing strategies focused on quality, efficiency, and automation.

100% Inspection for Metal Fabrication of Tubes, Bars, and Rods

For organizations adopting Industry 4.0 practices and 24/7 process control to verify alloys with pass/fail analysis, the Vanta iX analyzer delivers material verification and lot/heat control for bar, billet, tube, and rod manufacturing, as well as machined parts and customized components. Automating your testing with a Vanta iX analyzer adds a competitive edge to your finished product since you can demonstrate that materials are 100% tested and verified.

Scanning and Monitoring for Ore Grade Control in Mining

For geological processing and mining, the Vanta iX analyzer enables core scanning and on-belt analysis with real-time results to monitor process variability and ensure ore grade consistency. During on-belt analysis, the analyzer provides blending verification and process validation of concentrates.

Fast and Accurate Elemental Analysis for Continuous Quality Control

Like all Vanta electronics, the Vanta iX analyzer works fast while delivering reliable, actionable results to guide critical decisions.
– High resolution: ID a range of alloy grades—including light and heavy elements
– Fast, accurate results: the analyzer’s electronics provide high throughput, stability, and count rate
– Efficient: features a silicon drift detector (SDD) and the proven Axon Technology™ found in every Vanta analyzer

Easily Integrates into a Variety of Production Systems

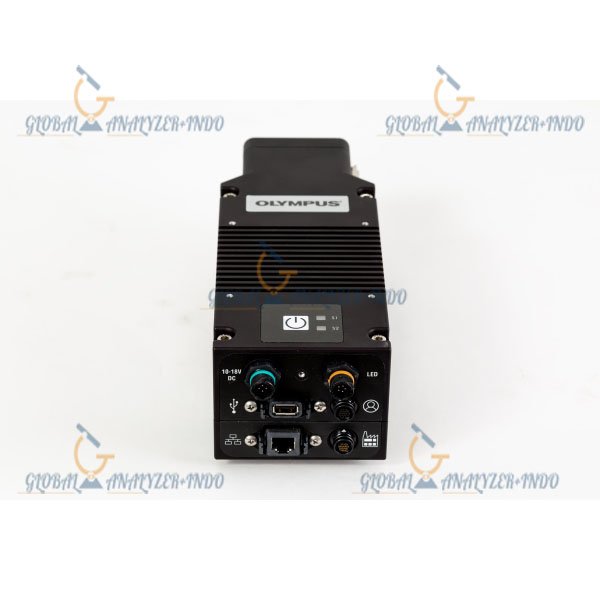

The Vanta iX analyzer is versatile, compact, and easy to install—use the mounting holes on each side to mount the analyzer onto robotics and other systems. There is no external control box, so you can easily control the analyzer with either the Vanta Connect API or a PLC and discrete wire.

Specifications:

– Dimensions (W × H × D): 10 cm × 7.9 cm × 26.6 cm (3.9 in. × 3.1 in. × 10.5 in.)
– Weight: 2.4 kg (5.29 lb)
– Excitation Source:
* X-ray tube: Rh or W anode (application optimized) 5–200 μA
* MR model: 8–50 keV (4 W max)
* CW model: 8–40 keV (4 W max)
– Primary Beam Filtration: Eight filter positions automatically selected per beam per method
– Detector:
* MR model: Large-area silicon drift detector
* CW model: Standard silicon drift detector
– Power: Power over Ethernet (PoE) or 18 V AC power adaptor
– Elemental Range:
Method dependent:
* MR model: Mg–U
* CW model: Ti–U (with standard window and calibration)
– Pressure Correction: Built-in barometer for automatic altitude and air pressure correction
– IP Rating: IP54
– Operating Environment:
– Operating System: Linux
– Application Software: Olympus proprietary data acquisition and processing package

Warranty Information
2 Years
