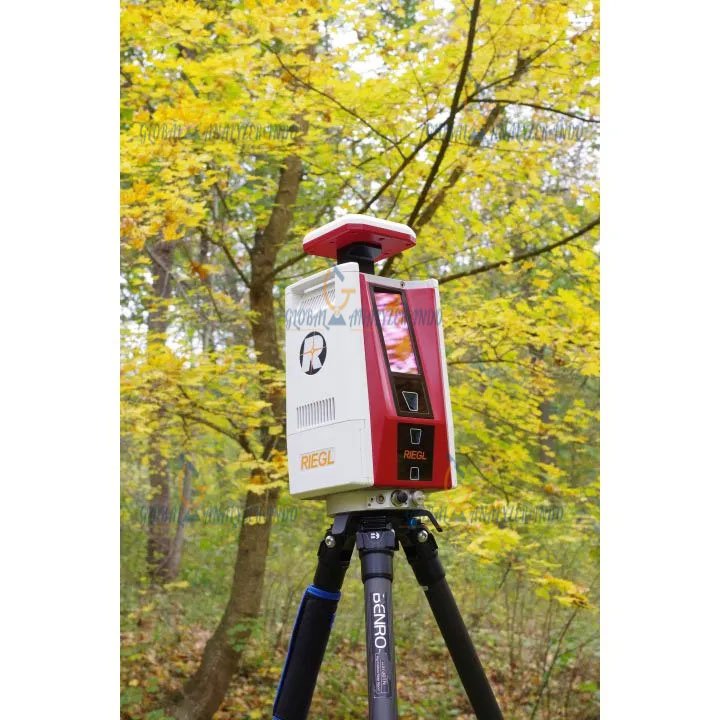

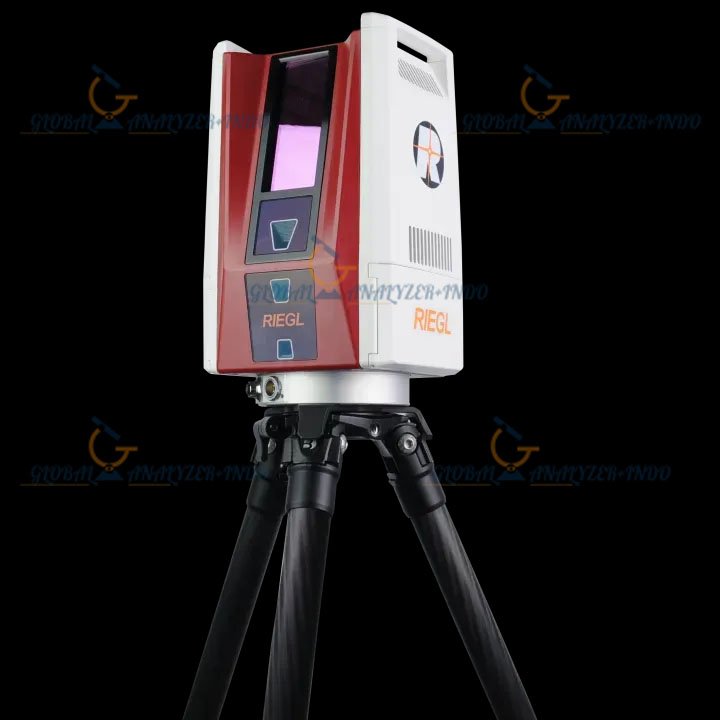

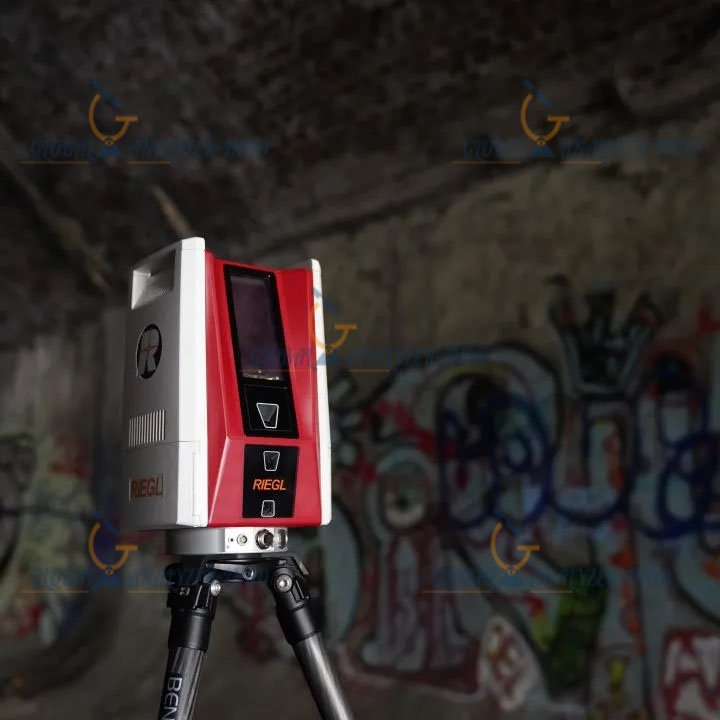

RIEGL VZ 600i 3D Laser Scanner

RIEGL VZ 600i 3D Laser Scanner: The Ultimate Tool for Precision and Efficiency

The RIEGL VZ 600i 3D Laser Scanner is a cutting-edge solution designed to provide high-precision 3D data capture for professionals across industries. Whether it’s surveying, civil engineering, architecture, or construction, the VZ 600i combines advanced technology with user-friendly features to streamline workflows and ensure accuracy.

Key Features of the RIEGL VZ 600i

The RIEGL VZ 600i stands out with a range of advanced features that make it the preferred choice for professionals looking for speed, accuracy, and reliability in 3D scanning. Below, we explore the key features that make this device a top choice for a variety of applications.

High-Speed Data Acquisition

With an impressive data acquisition rate of up to 1 million measurements per second, the VZ 600i ensures rapid capture of large-scale environments in high detail. This speed allows users to complete projects more efficiently, saving valuable time in the field.

Long-Range Capability

The VZ 600i offers a range of up to 600 meters, with a 5 mm accuracy, making it ideal for large-scale surveying, infrastructure inspections, and topographic mapping. Whether you’re working on a small project or a vast landscape, the scanner delivers consistent, reliable data over long distances.

Multiple Echo Capability

Thanks to multiple echo digitization, the RIEGL VZ 600i is capable of capturing data from multiple target echoes, even in challenging environments with obstructions or high levels of noise. This feature is essential for accurate mapping in complex sites like forests, urban areas, or industrial facilities.

Real-Time Data Processing

The VZ 600i includes real-time data processing capabilities, which allow for instant previewing of captured data in the field. This helps ensure that the collected data is accurate and complete, eliminating the need for lengthy post-processing and reducing the chances of errors.

Eye-Safe Operation

With Laser Class 1 safety, the VZ 600i ensures that users can operate the scanner without the need for safety goggles or additional protective gear, making it easier and safer to work on-site for extended periods.

RIEGL VZ 600i Specifications

Here’s a closer look at the RIEGL VZ 600i laser scanner’s technical specifications, offering professionals a detailed understanding of its performance capabilities.

Laser and Measurement Specifications

• Laser Pulse Repetition Rate: 1.2 MHz

• Measurement Speed: Up to 1 million measurements per second

• Range: Up to 600 m with 5 mm accuracy

• Field of View: 100° vertical / 360° horizontal

• Precision: 3 mm

• Eye Safety: Laser Class 1 (Eye-Safe)

• Angular Accuracy: 18”

• Operating Temperature: -10°C to +50°C

Design and Build

• Weight: 10.5 kg

• Dimensions: 260 mm (width) x 310 mm (height)

• Weather Resistance: IP54-rated for dust and water resistance

• Operating System: Integrated touchscreen interface with a simple menu for ease of use

Connectivity and Power

• Connectivity: Wi-Fi, 4G LTE, and Ethernet for seamless data transfer

• Battery Life: 4-6 hours, depending on usage

• Power Supply: 24 VDC

Applications of the RIEGL VZ 600i 3D Laser Scanner

The RIEGL VZ 600i is used across various industries where high-precision 3D scanning and data acquisition are required. Below are some of the most common applications of this powerful tool.

Surveying and Topography

The VZ 600i is ideal for land surveying, topographic mapping, and geographical information system (GIS) data collection. Its long-range capability and high-speed measurements make it perfect for large-scale surveying projects, including urban planning and natural resource management.

Civil Engineering and Infrastructure

For civil engineering projects, the VZ 600i is indispensable in capturing detailed data for infrastructure analysis, including roads, bridges, tunnels, and buildings. Its accuracy and real-time data processing capabilities improve project efficiency, reducing the need for rework and ensuring high-quality results.

Architecture and Building Design

Architects and engineers use the VZ 600i for as-built documentation, building measurements, and façade inspections. The scanner’s high precision allows for accurate modeling of existing structures, supporting design and renovation processes.

Construction Monitoring

In construction projects, the VZ 600i helps track site progress and monitor construction activities. With its ability to capture data quickly and accurately, it supports project managers in making informed decisions and keeping the project on schedule.

Cultural Heritage and Archaeology

The VZ 600i is used for archaeological surveys and the preservation of cultural heritage sites. Its ability to capture highly detailed 3D models of historical sites and artifacts allows for accurate documentation and preservation for future generations.

Benefits of the RIEGL VZ 600i

Here’s a quick rundown of the key benefits of using the RIEGL VZ 600i in your next project.

Efficiency and Speed

With its high-speed data acquisition and real-time data processing, the VZ 600i ensures faster project turnaround times, making it an excellent choice for tight deadlines and large-scale data capture tasks.

Accuracy and Precision

The VZ 600i provides 5 mm accuracy and 3 mm precision, ensuring that every scan delivers highly reliable data. This level of detail is critical for industries like surveying, engineering, and architecture.

User-Friendly Interface

The VZ 600i includes an intuitive touchscreen interface, simplifying operation and reducing training time for new users. The user-friendly design ensures that professionals can focus on the task at hand without getting bogged down by complicated settings.

What’s Included in the RIEGL VZ 600i Package?

When purchasing the RIEGL VZ 600i, you get everything needed to start scanning right away. The package includes:

• RIEGL VZ 600i 3D Laser Scanner

• RiSCAN PRO Software for data acquisition, processing, and visualization

• Nikon D700 Camera for high-resolution imaging

• GPS Receiver for georeferencing

• Tripod Adapter Plate for stable setup

• Power Supply and Cables for seamless operation

• Transport Case to keep the scanner safe during transit
