SKF TKSA 41 Wireless Laser Shaft Alignment Tool System

SKF TKSA 41 Laser Shaft Alignment Tool: Advanced, Accurate, and Easy to Use

The SKF TKSA 41 is a high-performance laser alignment system engineered to deliver precise shaft alignment for rotating machinery. Equipped with wireless measuring units, powerful laser technology, and an intuitive touchscreen interface, this tool ensures reliable measurements even under demanding industrial conditions. Designed to enhance alignment practices, the TKSA 41 offers exceptional value and user-friendly operation for professionals across many industries.

Key Features of the SKF TKSA 41

1. Wireless Communication for Safer and Easier Operation

The TKSA 41 uses wireless connectivity to simplify handling during alignment tasks. This allows technicians to align machines located in hard-to-reach or potentially hazardous areas while maintaining a safe working distance.

2. Free Measurement Mode

The free measurement function allows users to begin measurements at any shaft angle. Only a 90° sweep is required to complete the alignment process, significantly speeding up workflow and increasing flexibility.

3. Automatic Measurement Detection

With automatic measurement capability, the system detects when the heads are positioned correctly and records data hands-free. This reduces manual input and helps ensure more consistent measurement quality.

4. Automatic PDF Report Generation

Every completed alignment automatically generates a detailed report. Users can add notes and embed photos taken with the built-in camera, offering a comprehensive record of work performed. Reports can be exported easily as PDF files via USB.

5. Live View for Intuitive Adjustments

The live view function provides real-time guidance during horizontal and vertical machine adjustments. This makes the alignment process smoother, faster, and easier to understand.
(Note: Vertical shaft alignment requires the TKSA 51 or TKSA 71.)

6. Built-In Machine Library

The integrated machine library organizes all machines and alignment records in one place. QR code support further streamlines machine identification and enhances alignment workflow efficiency.

Why the TKSA 41 Is Recommended Across Industries

Improving Uptime and Reducing Costs

Proper shaft alignment is critical for extending machine life, reducing vibration, and preventing premature wear. The TKSA 41’s user-friendly design enables technicians of all experience levels to perform accurate alignment tasks, making it suitable for nearly all industrial sectors—manufacturing, processing plants, utilities, and more.

Technical Specifications

Sensor & Communication

• 29 mm (1.1 in.) CCD with line laser

• Electronic inclinometer: ±0.5°

• Bluetooth 4.0 LE or USB cables

Measurement Capabilities

• Working distance: 0.07 to 4 m (0.23 to 13.1 ft)

• Accuracy: <0.5% ±5 μm / 10 μm (0.4 mils)

• Supported shaft diameters: 20–150 mm (0.8–5.9 in.); up to 300 mm (11.8 in.) with extension chains

• Maximum coupling height: 195 mm (7.7 in.)

Display Unit

• 5.6″ color resistive touchscreen LCD

• Updates via USB

• Battery life: up to 8 hours (5,000 mAh LiPo)

Measuring Units

• Battery life: up to 12 hours (2,000 mAh LiPo)

• IP54 protection rating

• Operating temperature: 0–45 °C (32–113 °F)

Measurement Modes

• Standard 9–12–3 measurement

• Automatic 9–12–3 measurement

• Free measurement with minimum 90° rotation

• Live corrections for horizontal and vertical adjustments

• Laser soft foot detection tool

Reporting

• Automatic PDF export via USB

• Customizable with images and notes

System Dimensions & Weight

• Carrying case: 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)

• Total weight with case: 4.75 kg (10.5 lb)

Certificates and Warranty

• Calibration certificate valid for 2 years

• 3-year warranty included

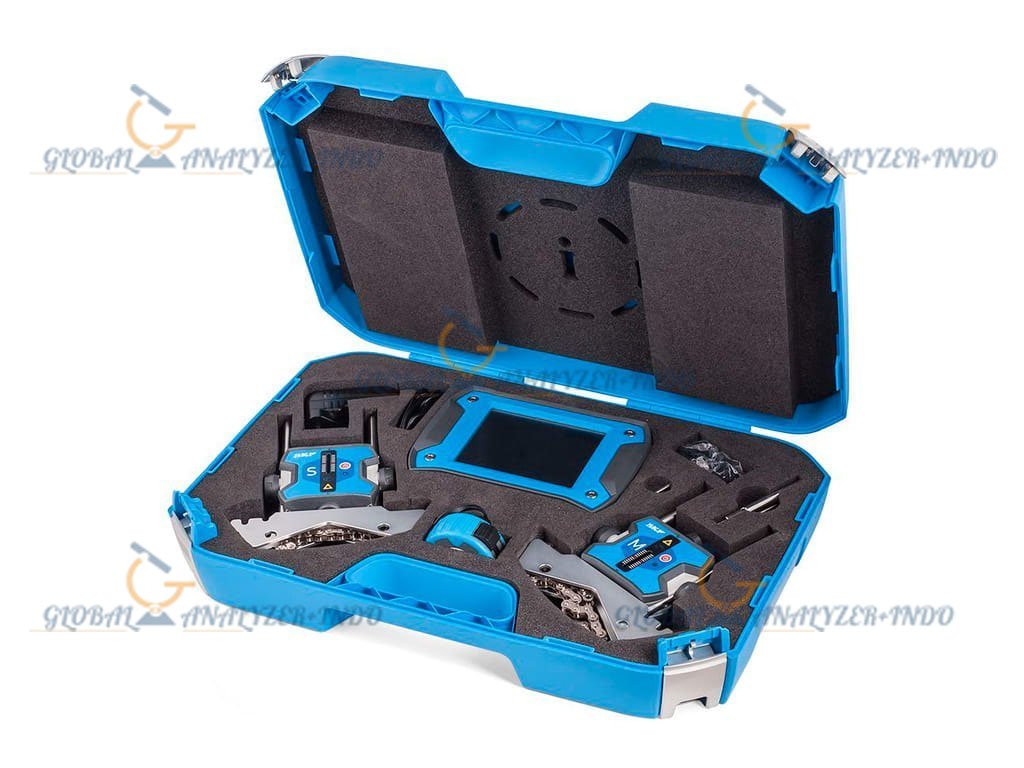

Package Contents

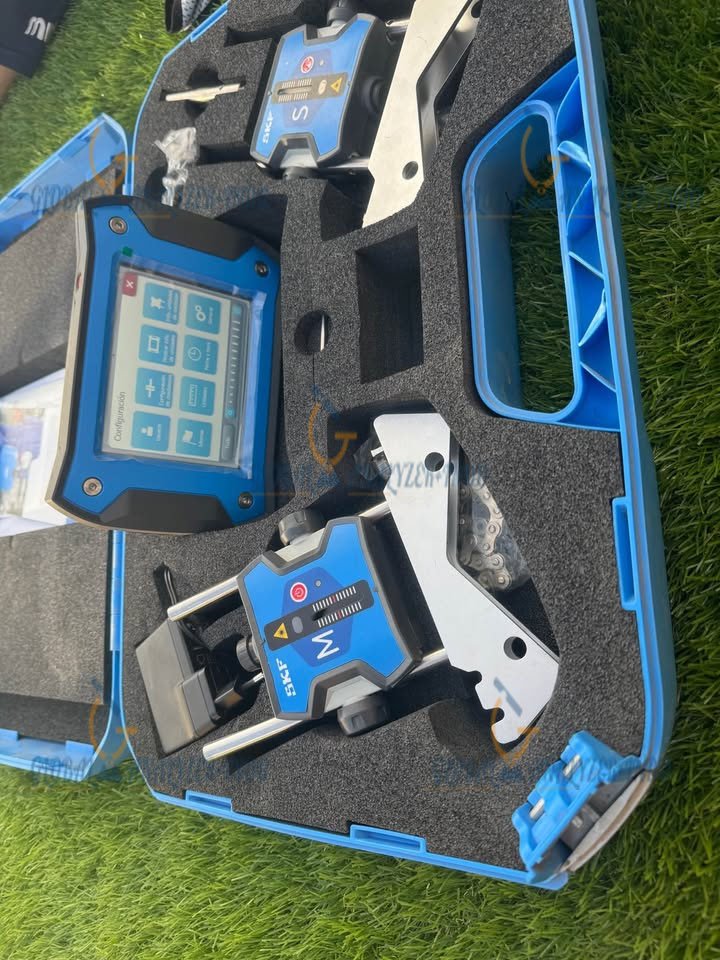

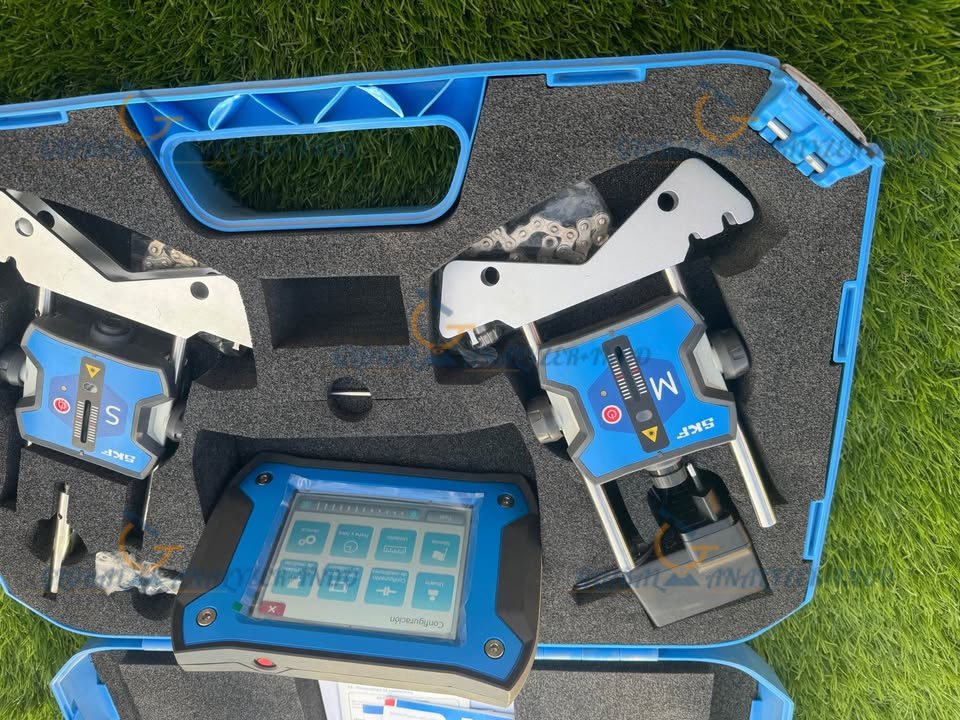

• TKSA 41 display unit

• TKSA 41 S measuring unit

• TKSA 41 M measuring unit

• Two V-brackets with chains

• 90 mm extension rods

• Chain-tightening rod

• 5 m (16 ft) measuring tape (metric & imperial)

• 12V DC 3A power supply

• International power adapters (US, UK, EU, AUS)

• Two micro-USB to USB cables

• Quick Start Guide (EN)

• Certificate of calibration and conformance

• QR code sticker sheet

• Warranty card

Warranty Information

The SKF TKSA 41 comes with a 3-year warranty, ensuring long-term reliability and peace of mind for all users.
