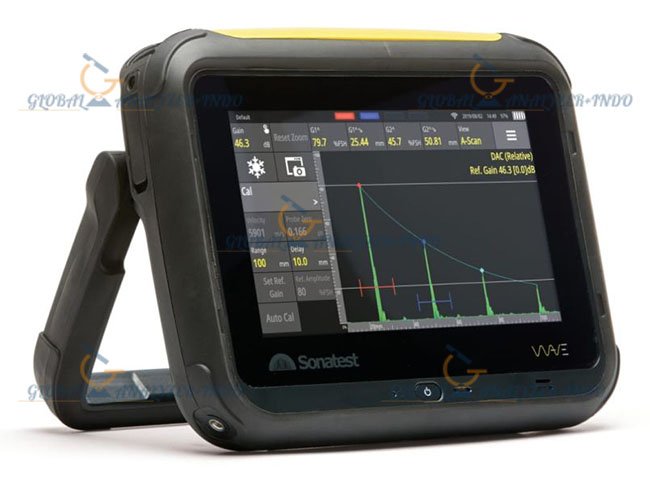

WAVE by Sonatest: A New Era in Customizable Ultrasonic Testing

Ultrasonic testing (UT) enters a new phase of flexibility and performance with WAVE by Sonatest—a device engineered to adapt to your workflow, your procedures, and your team’s skill level. With highly customizable settings, an intuitive interface, and advanced diagnostic tools, WAVE delivers professional-grade inspection results in just a few clicks.

Why WAVE Redefines Ultrasonic NDT

Tailored Settings for Every Inspection

Imagine working with a UT instrument where essential parameters are preconfigured and available instantly. WAVE makes this possible, allowing operators to adjust the device to match unique processes, part geometries, and inspection conditions.

A Modern Platform Built for Efficiency

WAVE integrates cutting-edge technologies to streamline daily operations—enhanced visualization, smart apps, touch navigation, and mobile-like usability—resulting in reduced setup time and improved accuracy.

Key Features of WAVE Ultrasonic Testing Device

1. Interactive Scan Plan

WAVE’s interactive scan plan is designed to simplify interpretation during inspection.

Advanced Geometry Support

Capable of representing curved components, T-joints, and complex shapes

Supports weld overlays and TKY/nozzle/flange geometries

Real-Time Ray Tracing

With live raytracing, the system helps operators distinguish between actual flaws and geometrical indications, minimizing false calls and reducing unnecessary repairs.

Accurate Visualization

Projected A-Scan display

True depth readings on uneven or complex surfaces

2. Application-Based Workflow Design

WAVE uses an application (app) concept that lets operators create tailored interfaces based on inspection requirements.

Customizable User Interface

Technicians can optimize layouts, presets, and settings to meet specific procedures, enhancing efficiency and reducing operational mistakes.

Optimized Navigation

The streamlined design and clear display ensure faster setup and improved inspection continuity.

3. UTouch Technology

UTouch gives the device smartphone-like responsiveness while maintaining rugged performance.

Intelligent Touch Recognition

An advanced algorithm differentiates between finger contact and couplant, ensuring reliable control even in challenging field conditions.

4. WAVE Companion Software

WAVE Companion is a dedicated software environment where predefined app setups are created and deployed to the UT unit.

Seamless Setup Management

Upload apps via USB-C, Ethernet, or Wi-Fi

Create specialized presets for different teams or inspection types

The default app provides full access to all device functionalities

Applications Across Multiple Industries

Industries That Benefit from WAVE

Aerospace

Automotive

Manufacturing

Forging

Power Generation

Oil and Gas

Its versatility makes WAVE suitable for inspection tasks ranging from weld examination to complex component analysis.

Technical Specifications

Wave Concept

Up to 50 User-Created Apps

P-CAP Multi-Touch UTouch Technology

Interactive Scan Plan Capabilities

Crown & Root Geometry Support

Weld Overlay Visualization

TKY / Nozzle / Flange Geometry Support

Curved Surface Compatibility

Live Raytracer

Projected A-Scan

True Depth Calculation on Complex Shapes

Measurement Tools

4 Gates

DAC / Split DAC (Standard)

TCG (Standard)

AVG/DGS (Standard)

AWS & API (Standard)

Curved Surface Correction (CSC)

Support for TKY and Complex Shapes

Transmitter & Receiver

Transmitter

PRF: 1500

Voltage Range: 100–500 V

Receiver

120 dB Dynamic Range

0.2–20 MHz Bandwidth

20 Filters

Signal Averaging Enabled

General Specifications

Battery Life: up to 10 hours

Display: 7″ widescreen (1024 × 600)

Dimensions: 222 × 174 × 63 mm

Weight: 1.7 kg

IP67 Rating

Operating Temperature: –10°C to 45°C

Wi-Fi Enabled

Built-in Speaker & Audio Recording

What’s Included in the Package

WAVE Lemo unit

Smart Li-ion Battery Pack

AC/DC Battery Charger

Hand Strap Assembly

Ethernet to USB Adapter

1 m Ethernet Cable

Quick Start Guide

125 ml Bottle of Water-based Couplant

Clear Screen Protector Kit

Tinted Screen Protector Kit

Carry Case

Warranty

WAVE comes with 3-year warranty coverage, offering long-term reliability and peace of mind.
