Wohler VIS 700 HD Kit (Model 7082) – Advanced Video Inspection Camera

The Wohler VIS 700 HD Kit (model 7082) is a professional-grade inspection camera designed for thorough inspections of wastewater systems, sewer lines, ventilation ducts, flue gas systems, and chimneys. Combining precision German optics with high-resolution digital sensors, this tool delivers crystal-clear images that can be transmitted live via wireless LAN. Recognized with the Plus X Award for high quality, ease of use, and functionality, the VIS 700 is a reliable choice for inspection professionals.

Key Features of the Wohler VIS 700 HD

High-Resolution Imaging

The Wohler VIS 700 produces HD-quality images using advanced high-resolution sensors. This ensures detailed and accurate inspection results, whether capturing photos or videos.

Compact, Pan & Tilt Camera Head

Equipped with a 1.5-inch detachable waterproof color camera head, it features full pan and tilt functionality for precise viewing in tight spaces.

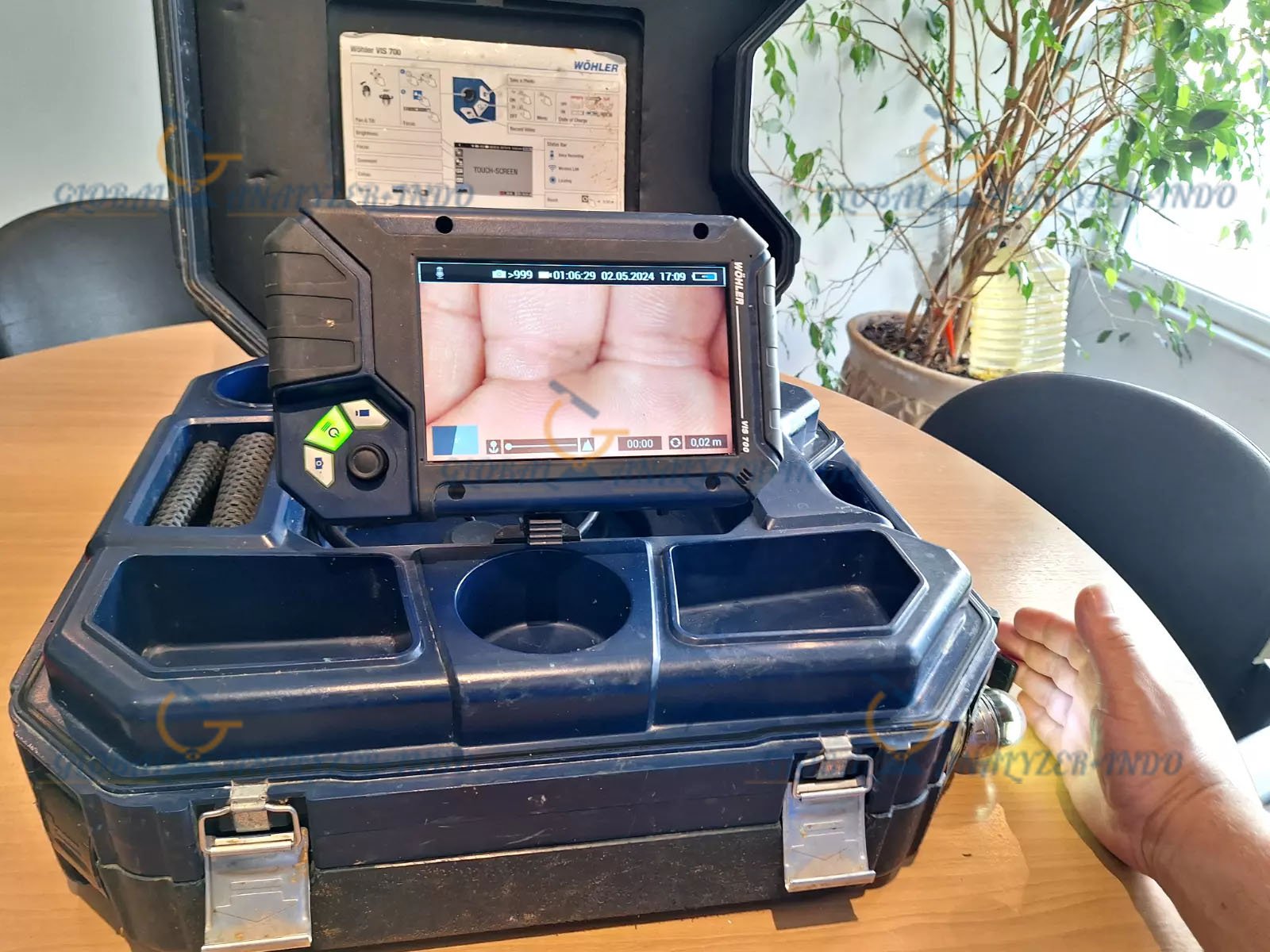

Large Touchscreen Monitor

The 7-inch HD color touchscreen provides intuitive navigation with a built-in joystick for focusing and control. Users can also type notes directly on the screen using the on-board keyboard.

Wireless Connectivity

The camera supports live video and image transmission via wireless LAN, allowing direct viewing on smartphones or tablets.

Camera Location Assistance

A built-in radio transmitter helps pinpoint the camera head’s location during inspections. The monitor displays camera position and angle for effortless navigation.

Easy Documentation

Users can save images and videos to an SD card and add comments directly via the monitor, making reporting and documentation quick and efficient.

Applications of the Wohler VIS 700

The VIS 700 is versatile and suitable for a wide range of applications:

Inspecting wastewater and sewer lines (2.5″ and larger)

Analyzing house connection pipes up to 8″

Examining ventilation system ductwork

Monitoring flue gas systems (2.5″ and larger)

Inspecting false ceilings, shafts, and hollow spaces

Evaluating industrial machines and plant equipment

Conducting NDT (Non-Destructive Testing) applications

Technical Specifications

Monitor

Inspecting wastewater and sewer lines (2.5″ and larger)

Analyzing house connection pipes up to 8″

Examining ventilation system ductwork

Monitoring flue gas systems (2.5″ and larger)

Inspecting false ceilings, shafts, and hollow spaces

Evaluating industrial machines and plant equipment

Conducting NDT (Non-Destructive Testing) applications

Camera Head

Type: 1/2.7″ Color CMOS

IP Rating: IP67 (waterproof)

Viewing Angle: 160° diagonal

Focus Distance: 1 inch to infinity

Light Source: 10 white LEDs

Dimensions: 1.5 x 2.5 in

Push Rod

Length: 100 ft

Diameter: 0.33 x 0.22 in

Electronic Meter Counter: 1-inch resolution, max 5% deviation

Memory & Recording

Max SD Card Capacity: 32 GB (SD/SDHC, class 10)

Recording Resolution: 1280 x 720 HD at 25 fps

Format: AVI (H264)

Recording Capacity: Approx. 3 GB per hour

Locator Receiver

Max SD Card Capacity: 32 GB (SD/SDHC, class 10)

Recording Resolution: 1280 x 720 HD at 25 fps

Format: AVI (H264)

Recording Capacity: Approx. 3 GB per hour

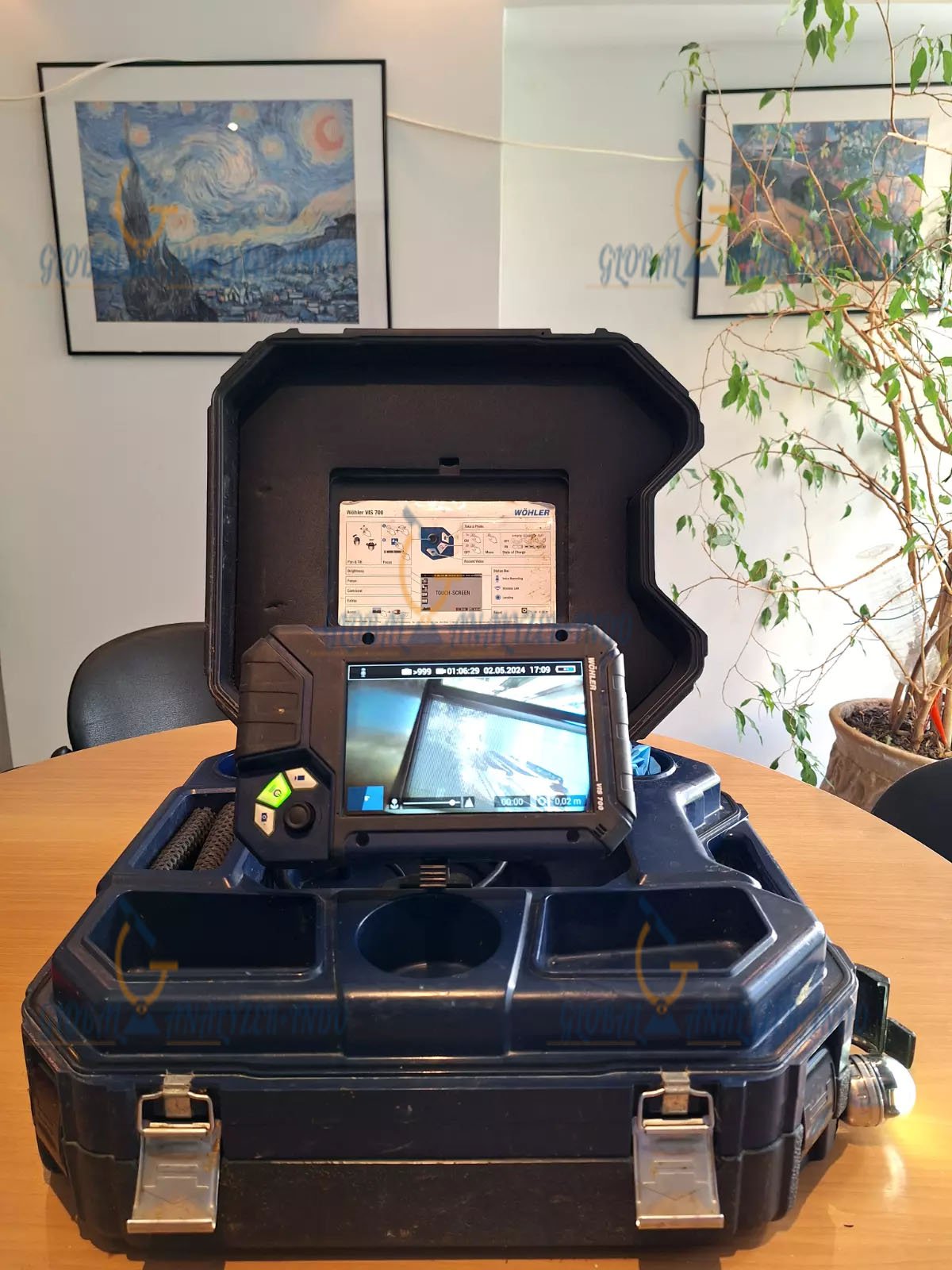

Package Contents

7” TFT touchscreen color monitor

1.5” pan & tilt color camera head

32 GB SD Card

100’ push rod

Anti-slide mat

USB charger and cable

Hard-shell carrying case

Manufacturer warranty

Warranty Information

The Wohler VIS 700 HD Kit comes with a 1-year manufacturer warranty, ensuring reliable support and service.
