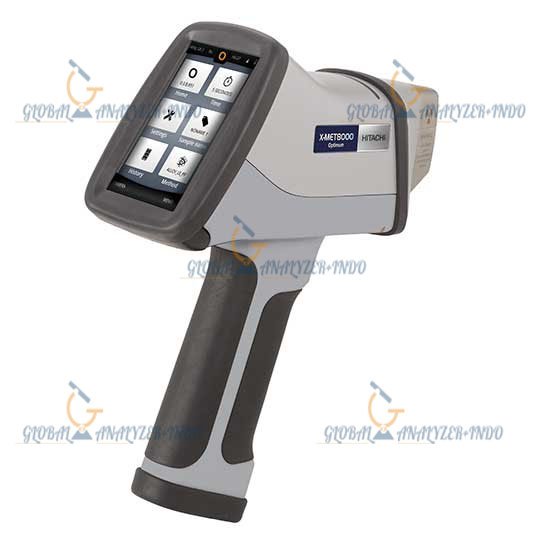

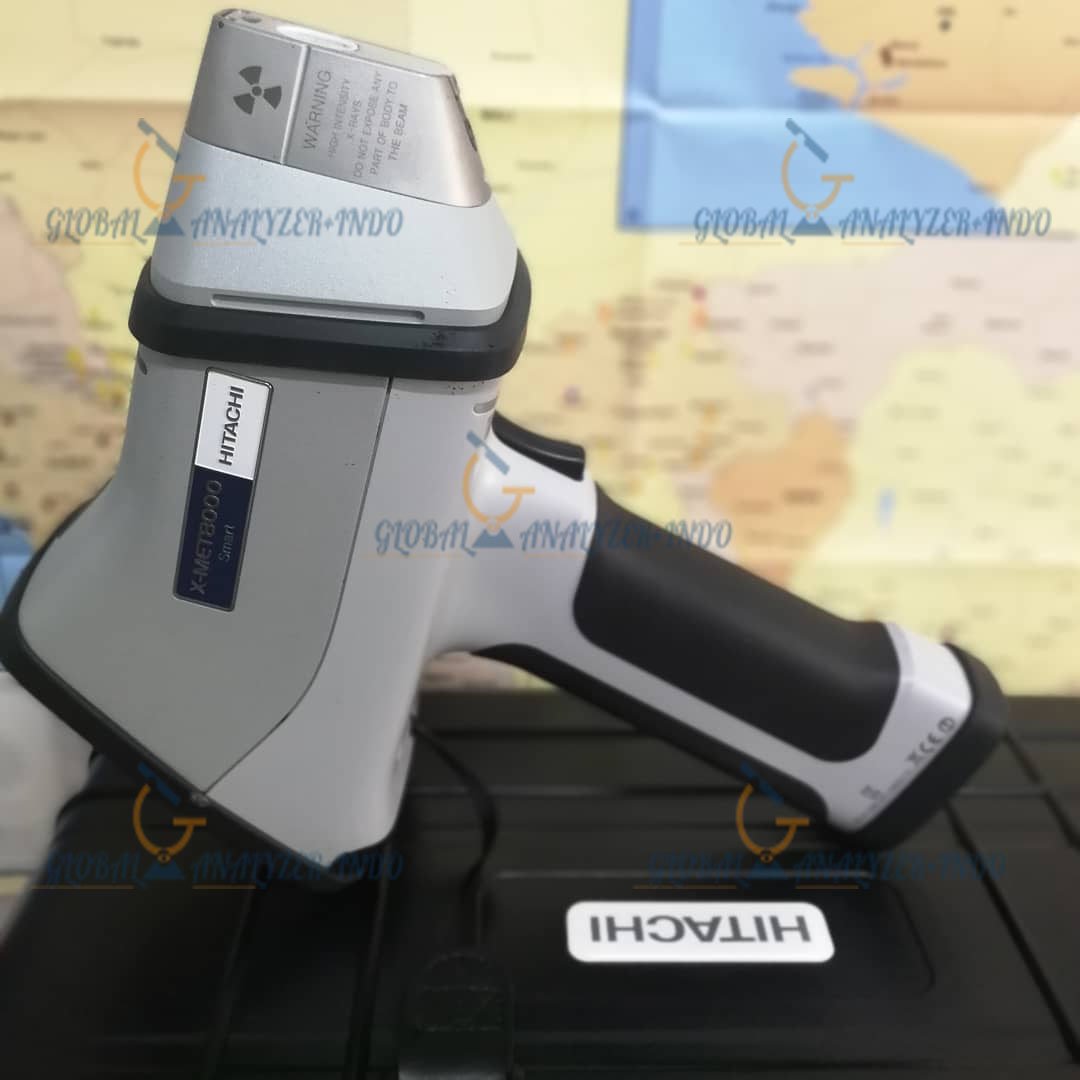

Hitachi XMET 8000 Smart Handheld XRF Analyzer

X-MET 8000 Handheld XRF Analyzer: Reliable and Fast Alloy & Material Identification

The X-MET 8000 series of handheld  X-ray fluorescence (XRF) analyzers delivers exceptional speed and accuracy for alloy grade identification and elemental chemistry across a wide variety of materials, including solid metals, metal powders, polymers, wood, liquids, soil, ores, and minerals. Designed to be robust, user-friendly, and dependable, the X-MET 8000 ensures precise results in both field and laboratory environments.

Handheld XRF Solutions for Every Application

Built for Performance and Practical Use

The X-MET 8000 handheld analyzer combines power and portability, making it ideal for quality control, scrap sorting, PMI, mining exploration, environmental testing, and general laboratory analysis. Its ergonomic design and smart interface make routine measurements fast and effortless.

Multiple Models for Different Requirements

With several configurations available, the X-MET 8000 series offers options that meet various testing needs, performance levels, and budget ranges. Each unit is supported by a 3-year warranty and cost-saving service and calibration programs.

Key Features of the X-MET 8000

X-ray tube: 40 kV

X-ray tube filters: Single filter design

Detector: Large-area SDD for high sensitivity

Maximum sample temperature: 100°C

Durability rating: IP54 for dust and splash protection

Detector window protection: Window shield included

Calibration type: Standardless (FP)

Integrated camera: Optional for sample positioning

Technical Specifications

Optimized for Routine Alloy Analysis

The X-MET 8000 Smart model is engineered for quick and accurate identification of common alloys, offering reliable performance across industrial and field applications.

Core Specifications

X-ray tube: 40 kV

Filter system: Single filter

Detector type: Large-area SDD

Elemental range: K to U

Maximum sample temperature: Up to 400°C with heat-resistant window

Environmental protection: IP54 rating

Weight: 1.5 kg

Battery life: 10–12 hours per charge

Detector protection: Thick Kapton® window

Calibration: Standardless (FP method)

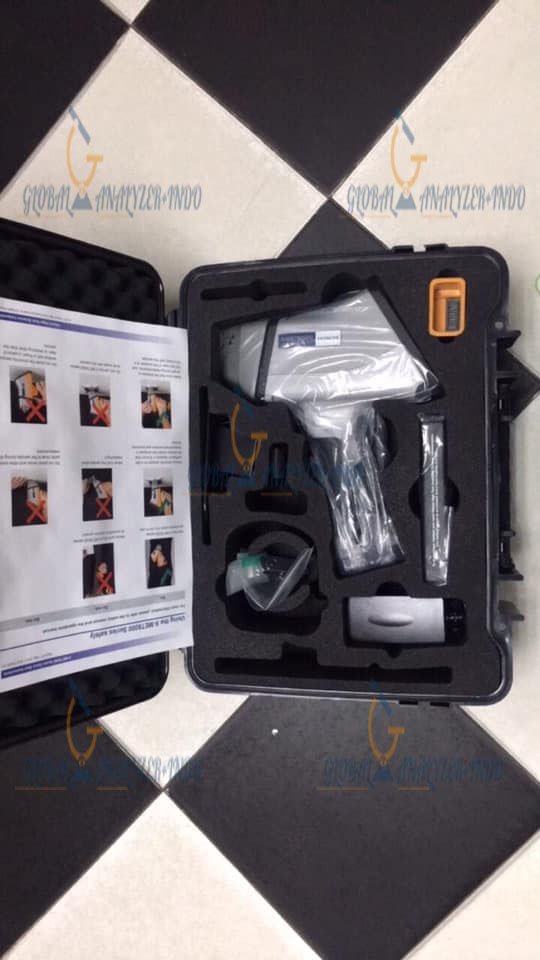

Package Contents

X-MET 8000 Smart analyzer

Check sample

Soil and mining CRMs (depending on package)

Blank check sample

Battery charger with UK, US, EU, and AU plugs

Two Li-ion batteries

USB cable

USB memory stick with User Manual & Safety Manual (13 languages)

Light radiation shield

Background plate

WiFi and Bluetooth connectivity

Hard protective case

Warranty card

Calibration certificate

Warranty Information

The X-MET 8000 Smart model includes a 3-year manufacturer warranty, covering hardware reliability and calibration quality.
