Olympus EPOCH 650 Digital Ultrasonic Flaw Detector

The Olympus EPOCH 650 is a next-generation ultrasonic flaw detector designed to deliver exceptional clarity, durability, and efficiency. Thanks to its transflective full VGA display and advanced digital processing, it provides reliable A-scan visibility in virtually any lighting environment. Moreover, the instrument’s rugged construction and intuitive controls make it one of the most adaptable solutions for modern nondestructive testing.

High-Visibility Display and Optimized Signal Quality

Full VGA Display for Accurate Readability

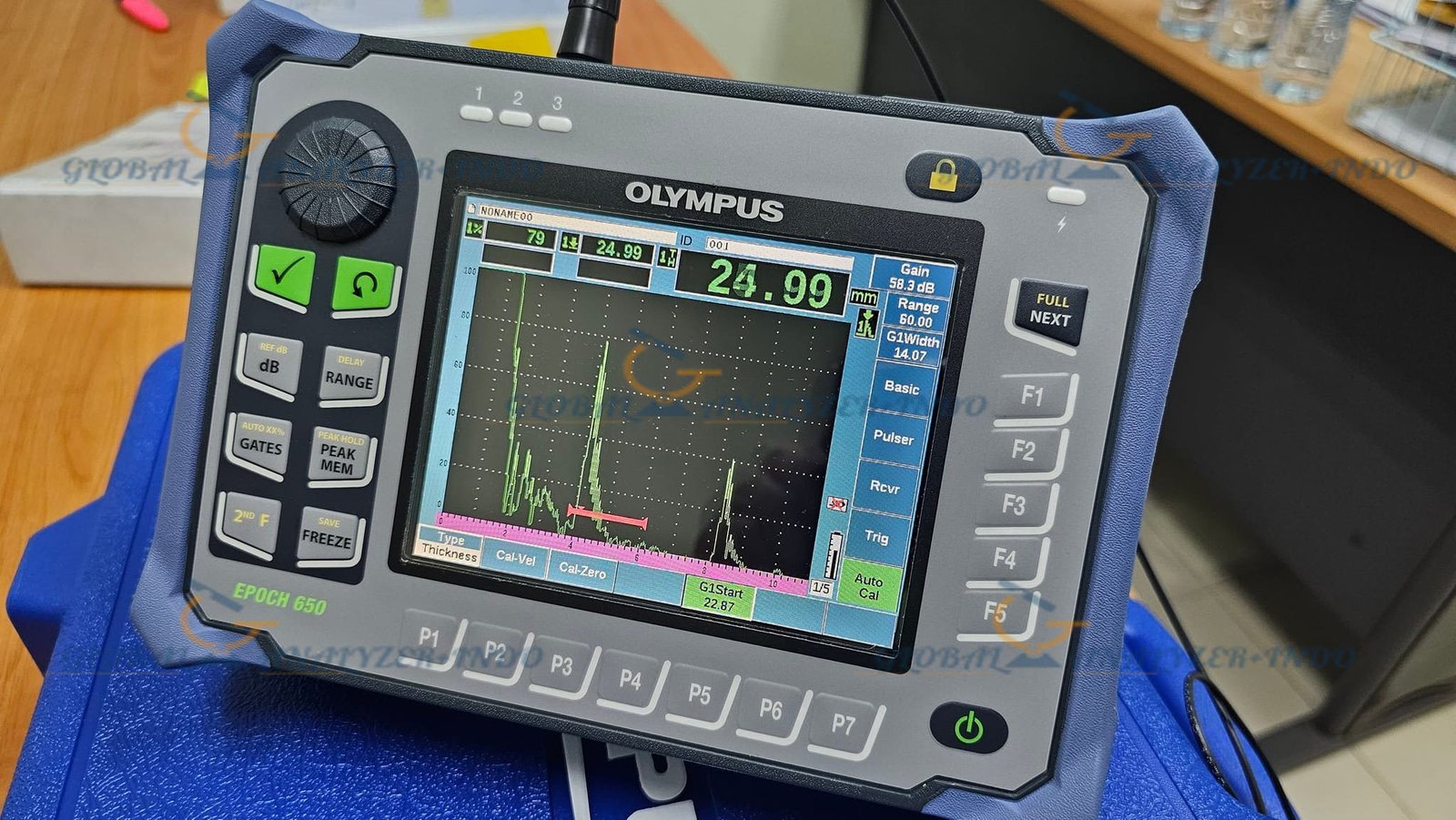

Equipped with a sunlight-readable VGA screen, the EPOCH 650 ensures sharp and consistent A-scan visualization. Unlike conventional UT devices that struggle outdoors, this display maintains high contrast under bright conditions. Consequently, inspectors are able to interpret waveforms confidently during field operations.

 Advanced High Dynamic Range Receiver

The patented digital high dynamic range receiver enhances both signal quality and stability. Additionally, it minimizes unwanted noise, resulting in more precise flaw identification across various materials. Furthermore, this improvement supports consistent performance during fast scanning or complex inspections.

 PerfectSquare™ Tunable Pulser

Olympus’ PerfectSquare™ pulser expands the system’s versatility. The feature allows operators to adjust pulse parameters to match the demands of their application. As a result, the instrument performs equally well during high-resolution weld inspection and deep penetration measurements.

 Engineered to Withstand Challenging Work Environments

 Rugged and Environmentally Resistant Construction

Designed with resilience in mind, the EPOCH 650 meets either IP66 or IP67 standards depending on the configuration. This protective rating defends against water, dust, and harsh weather exposure. In addition, the instrument is tested according to MIL-STD-810F protocols, confirming its durability against shock and vibration.

 Long-Lasting Battery for Extended Field Use

A powerful lithium-ion battery supports 15+ hours of continuous operation. Consequently, inspectors can complete demanding full-day assignments without stopping for a recharge. Moreover, the efficient internal power system helps maintain consistent performance even during long inspection sequences.

Certified for Hazardous Industrial Areas

The EPOCH 650 is approved for safe use in Class I, Division 2, Group D environments. Because many industries require equipment that can safely operate in explosive atmospheres, this certification ensures compliance in oil & gas, petrochemical, and energy facilities.

 Advanced Ultrasonic Features for Professional NDT

High-Speed Scanning and Enhanced Filtering

With a 2 kHz PRF, the instrument supports rapid scanning without sacrificing detail. Additionally, the system offers thirty digital filters, allowing users to optimize their signal-to-noise ratio across a broad range of inspection scenarios. In contrast to older models with limited filtering, the EPOCH 650 significantly expands inspection precision.

 Comprehensive Analysis Tools

Several built-in tools assist in accurate flaw evaluation, including:

• Dynamic DAC/TCG

• Onboard DGS/AVG

• Full-screen A-scan mode

• Optional Corrosion Module with encoded B-scan

These capabilities provide users with complete flexibility during data interpretation. Moreover, the integrated reporting system simplifies documentation and traceability.

 Intuitive Operation with Two Interface Options

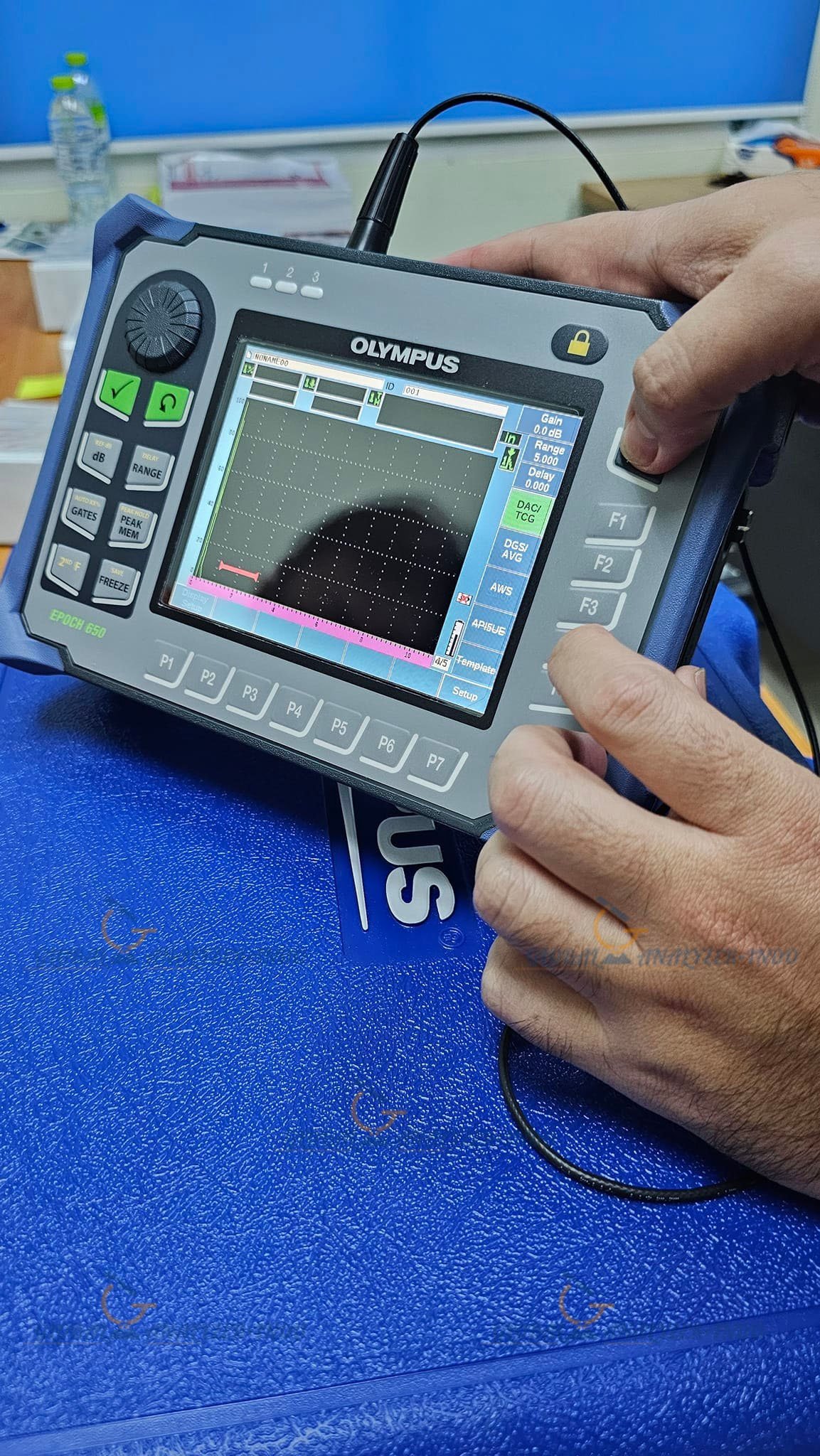

Users may select either a rotary knob or navigation pad design. Both configurations promote efficient navigation through menus and settings. Additionally, the ergonomic layout ensures comfortable handling during extended inspections.

 Connectivity, Data Storage, and Workflow Integration

Full Range of Modern Connectivity Ports

The EPOCH 650 includes:

• USB OTG

• RS-232 communication

• VGA video output

• Optional analog output

• Encoder input for corrosion mapping

These connection options streamline data transfer and enhance compatibility with external systems. Moreover, they allow seamless integration into digital inspection workflows.

 Large Data Storage Capacity

The instrument can store over 100,000 IDs internally and also includes a 2 GB MicroSD card for extended storage. This capacity enables operators to maintain organized inspection histories. Additionally, the removable card ensures fast data sharing across multiple devices.

 Key Technical Specifications

Mechanical & Environmental

• Operating range: –10 °C to 50 °C

• Weight: 1.6 kg including battery

• Dimensions: 236 × 167 × 70 mm

• Tested for shock, vibration, and humidity according to MIL-STD-810F

Display

• 640 × 480 full VGA LCD

• 60 Hz refresh rate

• Viewing area: 117 × 89 mm

Power & Connectivity

• Lithium-ion battery with 15–16 hours of operation

• BNC or LEMO transducer connectors

• USB OTG and RS-232 ports

 Common Industrial Applications

The Olympus EPOCH 650 is widely used in:

• Weld inspection and quality control

• Thickness and corrosion measurement

• Defect detection in castings and forgings

• Structural integrity assessment

• Aerospace and petrochemical inspection programs

Because of its versatility, the instrument serves as a dependable solution for both field and laboratory environments.

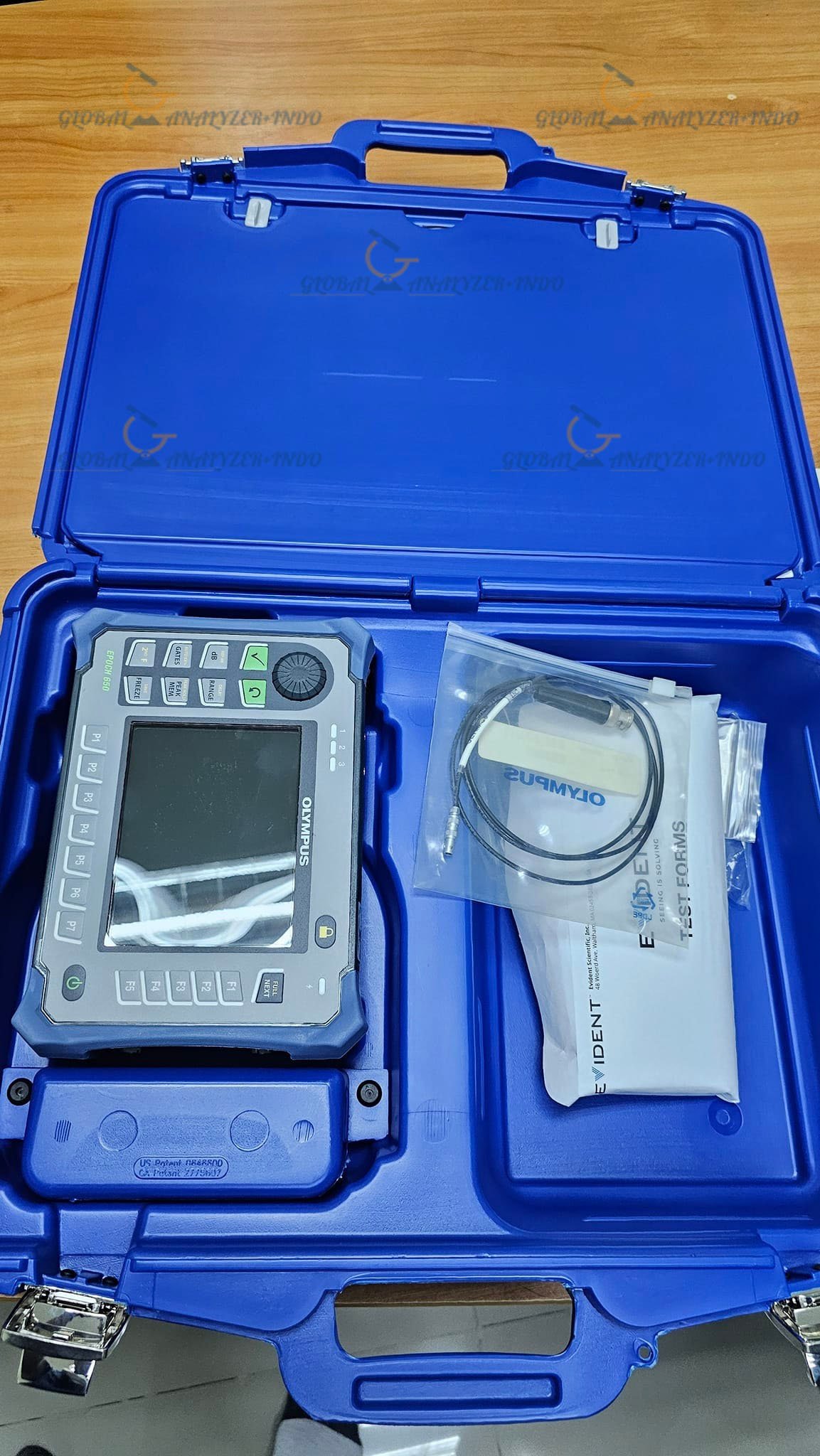

Package Contents

• EPOCH 650 Ultrasonic Flaw Detector

• Variety of transducers (AM4R, CN4R, A550S-SM)

• AC power/charger adapter

• Lithium-ion battery

• USB cable

• Quick reference card

• Full operation manual (CD)

• Calibration certificate

• Transport case

• Warranty card

 Why the EPOCH 650 Stands Out

A Complete Tool for Professional Inspectors

Its durable construction, advanced filtering capabilities, and high-visibility display create a powerful all-in-one inspection platform. Furthermore, the long battery life and wide array of connectivity options ensure efficiency throughout every stage of testing. As a result, the EPOCH 650 remains a preferred choice among NDT professionals worldwide.
