SciAps Z902C+ Premium LIBS Analyzer

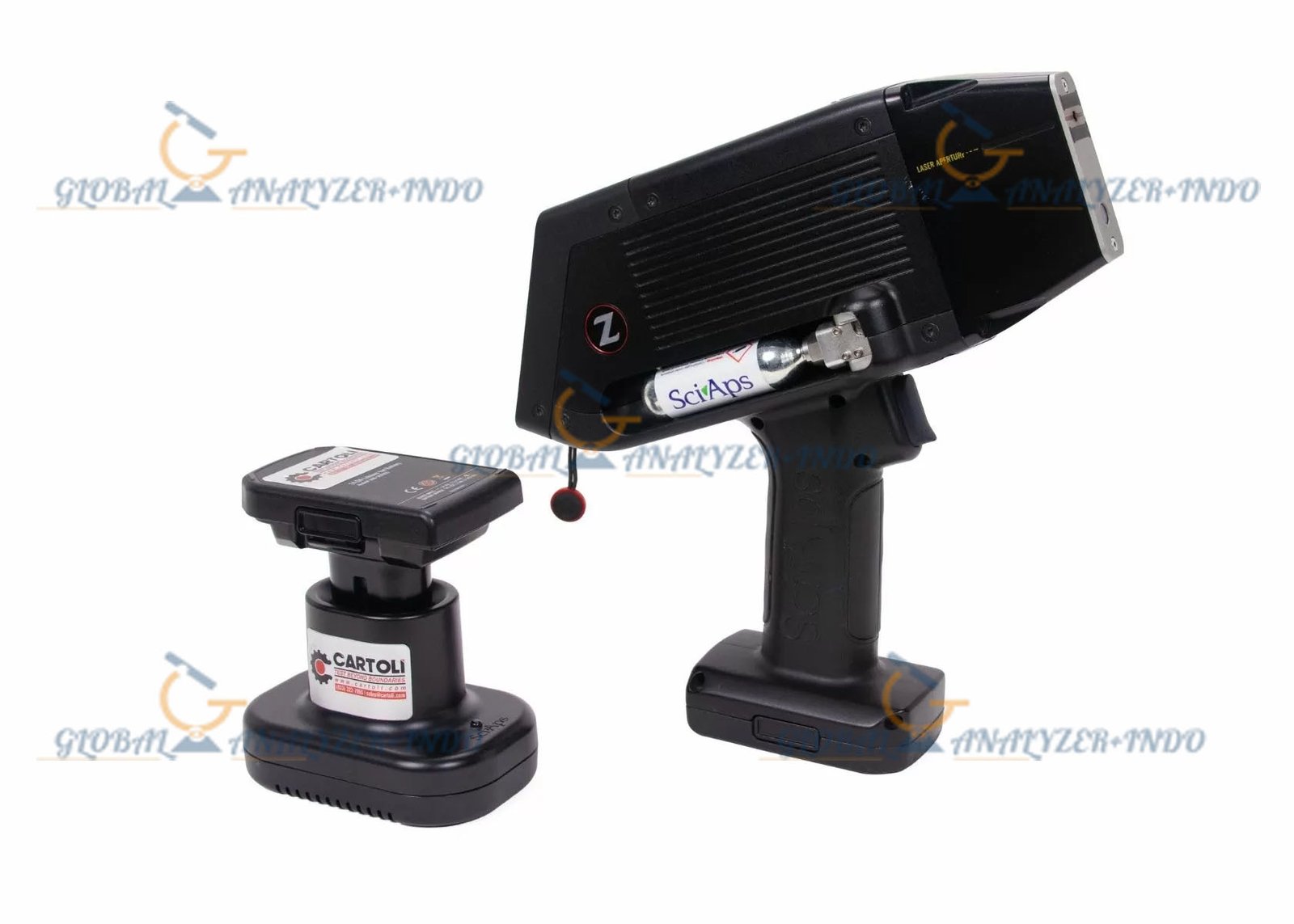

SciAps Z-902 Carbon Handheld Analyzer: Advanced In-Field Carbon Analysis for Alloys

The SciAps Z-902 Carbon is the world’s first handheld analyzer to offer precise carbon content analysis in alloys, including stainless steel, low alloy steels, and more. This advanced analyzer allows for rapid and accurate identification of alloy types, carbon equivalents (CE) for welding, and material verification pre- and post-fabrication. With its compact design, intuitive user interface, and built-in features, the SciAps Z-902 Carbon is a game-changer in the world of portable elemental analysis.

What Makes the SciAps Z-902 Carbon Stand Out?

The SciAps Z-902 Carbon is specifically designed to deliver rock-solid, in-field carbon analysis for alloys, making it an invaluable tool for industries such as manufacturing, welding, pipeline integrity management, and steel production.

Key Features of the SciAps Z-902 Carbon

• Alloy and Carbon Analysis: Confirm alloy type and grade for 300-series stainless steels, including the L, H, and S series. Perform carbon equivalent (CE) calculations for welding applications.

• High-Resolution Spectrometer: The advanced spectrometer design allows for precise measurements, with a second dedicated spectrometer for superior resolution in the 190-230 nm range for carbon detection.

• Powerful Laser & Argon Purge: Built with a powerful laser and onboard argon purge to optimize carbon measurements, ensuring high accuracy even in challenging conditions.

• Portable and Durable: With a rugged aerospace-grade aluminum body, the SciAps Z-902 Carbon is engineered to perform well in high ambient temperatures. Weighing only 4.35 lbs (1.97 kg), it’s easy to carry and use in the field.

• Compact Design: A narrow profile and tapered snout allow for analysis in hard-to-reach places, including welds and tight spaces.

Ideal Applications of the SciAps Z-902 Carbon

The SciAps Z-902 Carbon is versatile and suitable for a range of applications, including:

1. PMI and NDT (Positive Material Identification and Non-Destructive Testing)

• Confirm alloy grades, including 300-series stainless steels (L, H, and S series).

• Quickly determine carbon equivalents (CE) for welding, ensuring safe and effective welds.

• Perform material verification pre- and post-fabrication to ensure compliance with mill test reports (MTRs).

• Validate materials in chemical plants, refineries, and other industries that require high-quality materials.

2. Pipeline Integrity Management

• Verify alloy grades and carbon equivalents.

• Validate mill test reports (MTRs) to ensure materials meet required specifications.

• Ensure pipeline material integrity and safety during inspections and repairs.

3. Steel Production and Scrap Processing

• Screen incoming scrap materials to determine alloy types and carbon content.

• Ensure quality control during the production process to resolve material mix-ups and guarantee compliance.

• Perform rapid screening at the Electric Arc Furnace (EAF) to check for heat compliance.

4. Fabrication and Manufacturing

• Perform material verification for fabrication projects, ensuring the correct material is used throughout the process.

• Quickly check the carbon content of stainless steel and other alloys to ensure consistency in fabrication.

Advanced Features and Specifications

The SciAps Z-902 Carbon is built with cutting-edge features that make it the most reliable handheld carbon analyzer for alloys. Here’s an overview of its advanced capabilities and specifications:

Key Features

• LIBS Sensor: Provides high-resolution, wide-range spectrometer design for precise carbon analysis.

• Internal Camera: Integrated for accurate targeting of analysis locations.

• Macro Camera: Allows photo documentation of samples, scanning barcodes and QR codes.

• Laser Safety Sensor: Patented sample sensor allows Class 1 operation, subject to LSO approval, for added safety.

• Intuitive Android Interface: Built on the Android operating system with app-based software for easy operation.

• High-Resolution Display: 2.7-inch color touchscreen for clear, easy-to-read results in all lighting conditions.

• Narrow Snout: Tapered for accessing tight locations such as welds or narrow test spaces.

• Rugged Metal Body: Aerospace-grade aluminum for maximum durability and minimal service costs.

Specifications

• Weight: 4.35 lbs (1.97 kg) with battery

• Dimensions: 10.75″ x 2.875″ x 8.625″

• Display: 2.7” high-brightness, color touchscreen, readable in all lighting conditions. Rear-facing display for easy results viewing.

• Power: Rechargeable Li-ion battery (inside device or external charger), AC power

• Processing: ARM Quad Cortex-A53 1.2 GHz, 2 GB LPDDR3 memory, 16 GB eMMC storage

• Data Storage: 32 GB SD card

• Connectivity: Wi-Fi (IEEE 802.11b/g/n), Bluetooth (BR/EDR+BLE), GPS, USB-C for real-time data exporting

• Sample Viewing: Integrated camera and laser target indicator for sample alignment; macro camera for QR/barcode scanning and photo-documentation

• Laser Raster: Onboard Y-stage for rastering laser to discrete locations for targeted analysis or averaging

• Atmosphere: SciAps proprietary Opti-Purge for inert argon environment to improve spectral signal-to-noise ratio

• Calibration Check: 316 stainless steel standard for automated calibration and wavelength scale validation

• Drift Correction: Automated drift correction software with factory-provided or user-provided reference materials

• Grade Library: 500+ grades, multi-library support; libraries can be added or edited

• Spectral Range: 190 – 420 nm

• Regulatory: CE, RoHS, USFDA registered; Class 3b laser; Sample sensor for Class 1 operation (subject to local LSO approval)

Complete Package and Warranty

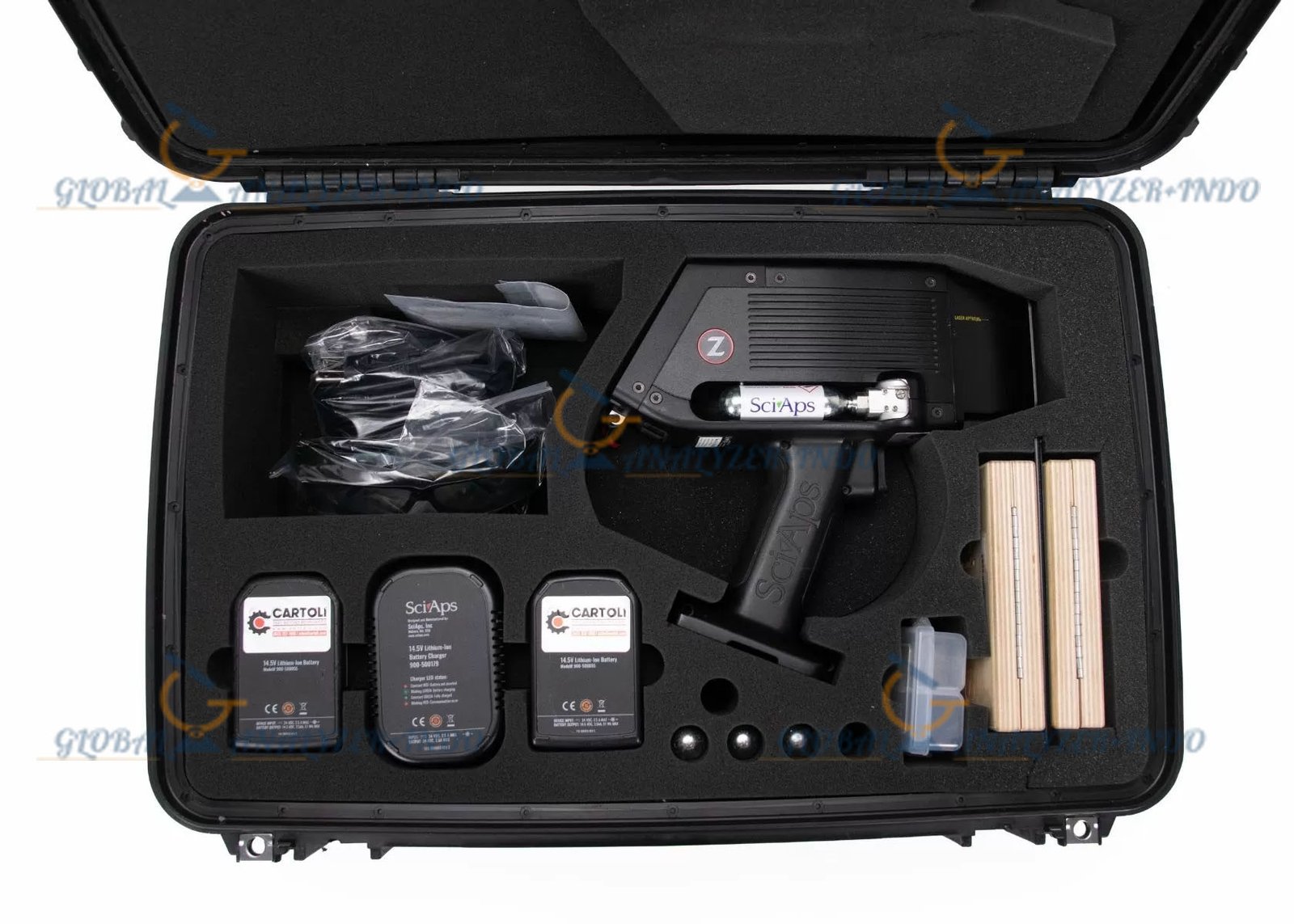

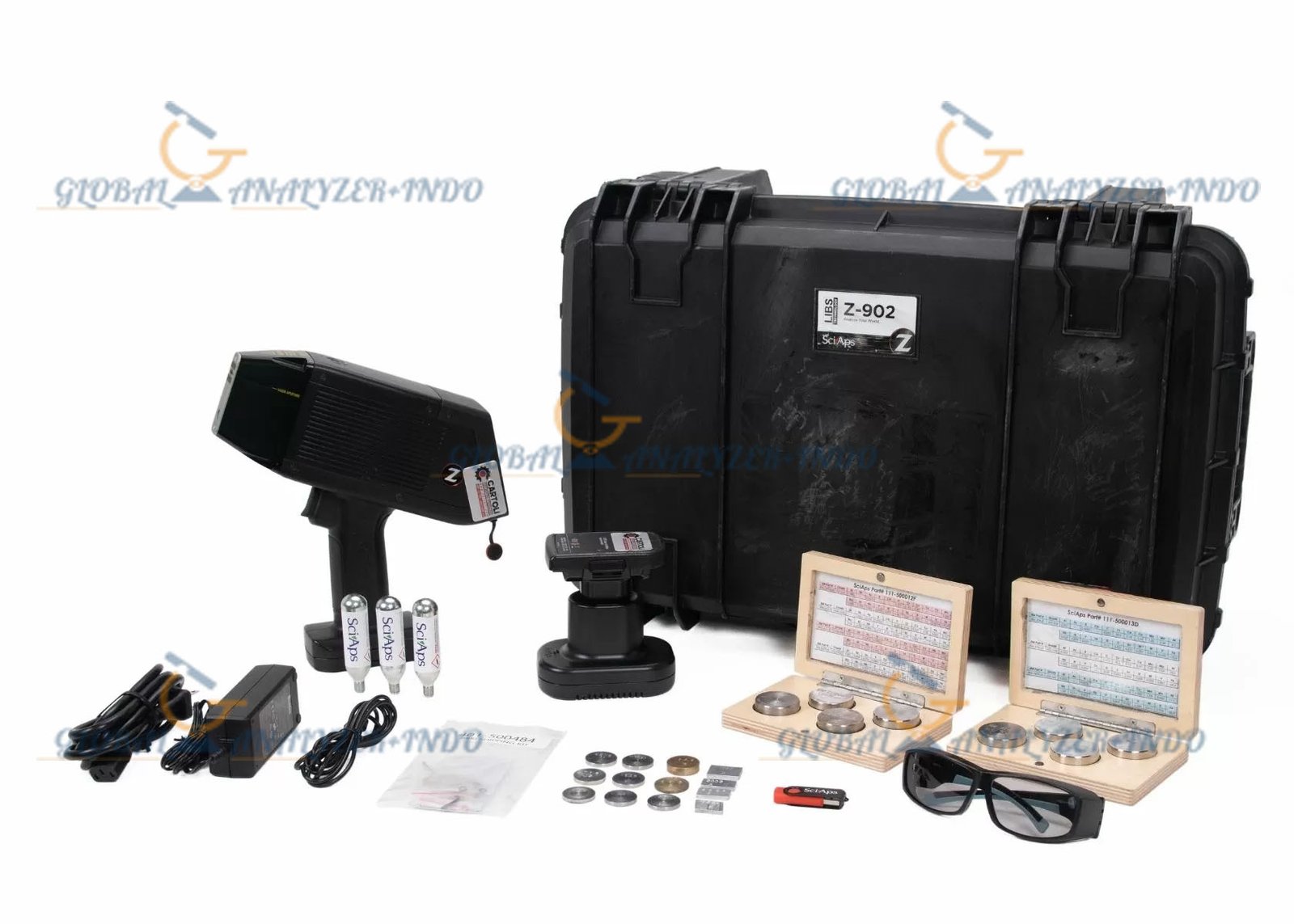

Each SciAps Z-902 Carbon handheld analyzer comes with everything you need to get started:

• Package Includes:

  • 1x Hard-sided Instrument Case

  • 1x SciAps Z-902C+ Instrument with Wrist Lanyard

  • 2x Li-ion Batteries

  • 1x Battery Charging Dock

  • 1x AC Power Adapter

  • 1x USB-C to USB-A Cable

  • 1x Laser Safety Glasses (OD 5+ for 1064 nm Laser)

  • Accessory Kit (includes M2 Allen Wrench, Replacement Splatter Shields, USB Drive with Calibration Certificate, and more)

  • Drift Correction Standards (configuration-specific)

  • 5x Argon Cylinders (if applicable)

  • Warranty Card and Calibration Certificate

• Warranty Information: 3-Year Warranty

Why Choose the SciAps Z-902 Carbon?

The SciAps Z-902 Carbon stands out for its exceptional performance, portability, and versatility. Whether you’re in the field, on a fabrication site, or in a steel production facility, this analyzer offers:

• Precision Carbon Content Analysis: Quickly and accurately measure carbon content and carbon equivalents (CE) in alloys.

• User-Friendly Interface: The Android-based interface ensures intuitive operation for all users.

• Portable and Durable: Weighing just 4.35 lbs and built with aerospace-grade aluminum, this device is easy to carry and resilient in harsh environments.

• Comprehensive Data Management: Real-time data exporting and cloud-based reporting make it easy to share results and manage data.

With its ability to deliver in-field carbon analysis for alloys, the SciAps Z-902 Carbon is the most advanced handheld analyzer available today for professionals in the welding, fabrication, steel production, and material verification industries.
