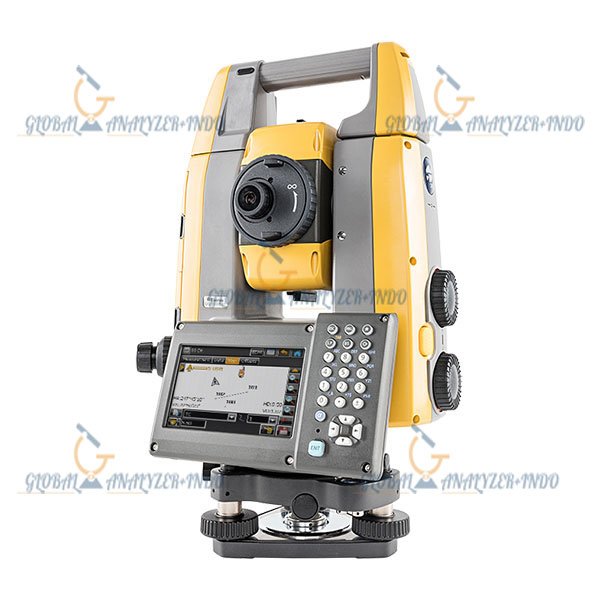

Topcon GT-1200 Robotic Total Station
Introduction to the Topcon GT-1200
The Topcon GT-1200 Robotic Total Station is a next-generation robotic total station engineered for high-precision surveying, construction layout, machine control, and infrastructure applications. Developed by Topcon Positioning Systems, the GT-1200 combines ultra-fast ultrasonic motors, advanced prism tracking, Hybrid Positioning technology, and reflectorless measurement capabilities into a compact and lightweight robotic platform.
Designed for demanding field professionals, the GT-1200 provides exceptional speed, accuracy, durability, and automation for modern surveying and construction workflows. The system supports single-operator operation, significantly improving productivity while reducing labor requirements on site.
Why Choose the Topcon GT-1200
Ultra-Fast Robotic Performance
The GT-1200 is recognized for its extremely fast robotic turning and tracking performance using advanced ultrasonic direct-drive motors.
High-Precision Survey Accuracy
Available in 1″, 2″, and 3″ angular accuracy models, the GT-1200 is suitable for high-precision engineering and construction applications.
Hybrid Positioning Technology
Topcon Hybrid Positioning allows integration between GNSS and robotic total station workflows, improving efficiency and reducing unnecessary setups.
Lightweight and Compact Design
The GT-1200 features a highly portable design while maintaining rugged durability for harsh field conditions.
Key Features of the Topcon GT-1200
UltraTrac Prism Tracking
Topcon’s UltraTrac technology delivers stable prism lock and rapid prism reacquisition in difficult jobsite environments.
Benefits
- Faster point measurement
- Reliable robotic tracking
- Reduced downtime
- Improved productivity
- Better long-range performance
Ultrasonic Direct-Drive Motors
The GT-1200 uses ultrasonic motors for silent, high-speed, and precise robotic movement.
Advantages
- Faster rotation speed
- Reduced mechanical wear
- Higher positioning precision
- Smooth tracking performance
- Improved operational lifespan
Reflectorless Measurement Technology
The instrument supports long-range reflectorless measurements for inaccessible or hazardous targets.
Applications
- Building façade measurement
- Structural inspection
- Utility surveys
- Road measurements
- Industrial layout
Hybrid Positioning Workflow
The GT-1200 integrates robotic total station and GNSS technologies into a unified workflow.
Workflow Benefits
- Reduced setup frequency
- Faster site coverage
- Improved crew efficiency
- Simplified machine control integration
Applications of Topcon GT-1200
Land Surveying
Suitable for:
- Boundary surveys
- Topographic surveys
- Control networks
- Utility mapping
- Geodetic surveys
Construction Layout
Widely used for:
- Building layout
- Anchor bolt positioning
- Structural steel alignment
- Concrete formwork
- MEP installation
Infrastructure Projects
Supports:
- Highway construction
- Railway alignment
- Bridge surveys
- Tunnel projects
- Airport construction
Machine Control
The GT-1200 integrates with machine guidance systems for automated construction workflows.
Industrial Measurement
Ideal for:
- Plant layout
- Equipment installation
- Structural verification
- Industrial retrofits
- As-built documentation
Topcon GT-1200 Technical Specifications
General Specifications
| Specification | Details |
|---|---|
| Product Name | Topcon GT-1200 |
| Instrument Type | Robotic Total Station |
| Manufacturer | Topcon Positioning Systems |
| Survey Method | Robotic |
| Operation | Single Operator |
| Positioning Technology | Hybrid Positioning |
| Motor Type | Ultrasonic Direct Drive |
| Prism Tracking | UltraTrac |
| Integrated Connectivity | Bluetooth & Wi-Fi |
| Construction Applications | Supported |
| Machine Control Integration | Supported |
| Weight | Approx. 5.7 kg |
| Housing Design | Compact & Lightweight |
Angular Measurement Specifications
| Specification | Details |
|---|---|
| Angular Accuracy Models | 1″, 2″, 3″ |
| Angle Measurement Method | Absolute Encoder |
| Minimum Display | 0.1″ |
| Compensator Type | Dual Axis |
| Compensator Range | ±6′ |
| Automatic Compensation | Yes |
Distance Measurement Specifications
Prism Measurement
| Specification | Details |
|---|---|
| Prism Range | Up to 5,000 m |
| Prism Accuracy | ±(1 mm + 1 ppm) |
| Tracking Range | Up to 1,000 m |
| Measurement Mode | Fine / Rapid / Tracking |
| Supported Prisms | Standard & 360° |
Reflectorless Measurement
| Specification | Details |
|---|---|
| Reflectorless Range | Up to 1,000 m |
| Reflectorless Accuracy | ±(2 mm + 2 ppm) |
| Laser Pointer | Integrated |
| Non-Prism Measurement | Supported |
Rotation and Tracking Specifications
| Specification | Details |
|---|---|
| Maximum Rotation Speed | 180°/sec |
| Maximum Auto Tracking Speed | 20°/sec |
| Auto Pointing Accuracy | 1.2 mm or better |
| Prism Reacquisition | UltraTrac Technology |
| Servo Performance | High-Speed |
Telescope Specifications
| Specification | Details |
|---|---|
| Telescope Magnification | 30x |
| Resolving Power | 2.5″ |
| Minimum Focus Distance | 1.3 m |
| Reticle Illumination | Supported |
| Optical System | High Precision |
Guide Light Specifications
| Specification | Details |
|---|---|
| Guide Light Type | LED |
| Light Colors | Red / Green |
| Visible Distance | 1.3 to 150 m |
| Brightness Levels | 3 Levels |
| Alignment Guidance | Supported |
Connectivity Specifications
| Specification | Details |
|---|---|
| Bluetooth | LongLink Bluetooth |
| Bluetooth Range | Up to 600 m |
| Wi-Fi | IEEE 802.11 b/g/n |
| USB Support | Yes |
| External Storage | USB Flash Memory |
| Internal Memory | 1 GB |
| Data Transfer | Wireless & Wired |
Environmental Specifications
| Specification | Details |
|---|---|
| Protection Rating | IP65 |
| Dust Protection | Yes |
| Water Resistance | Yes |
| Operating Environment | Construction & Survey |
| Rugged Design | Field Optimized |
Software Compatibility
| Software | Function |
|---|---|
| MAGNET Field | Data Collection |
| MAGNET Office | Data Processing |
| Machine Control Systems | Equipment Guidance |
| CAD Platforms | Design Integration |
Advantages of the Topcon GT-1200
Faster Survey Workflows
The GT-1200 significantly reduces setup and measurement time with robotic automation and fast tracking.
Single-Operator Efficiency
One surveyor can perform tasks traditionally requiring multiple crew members.
Improved Construction Accuracy
The system delivers precise stakeout and layout measurements for demanding construction tolerances.
Long-Range Reflectorless Capability
Allows measurements to inaccessible or unsafe targets without requiring a prism.
Seamless GNSS Integration
Hybrid Positioning improves productivity across large construction sites and complex survey environments.
Industries Using Topcon GT-1200
Surveying Industry
Used for:
- Geodetic surveys
- Cadastral mapping
- Utility surveys
- Topographic mapping
Construction Industry
Supports:
- Digital layout
- Structural positioning
- Concrete construction
- Steel erection
- BIM workflows
Infrastructure Development
Ideal for:
- Road construction
- Rail projects
- Airport development
- Bridge engineering
- Tunnel surveying
Industrial Projects
Provides accurate measurement for:
- Industrial plant layout
- Equipment alignment
- Facility retrofits
- Structural monitoring
